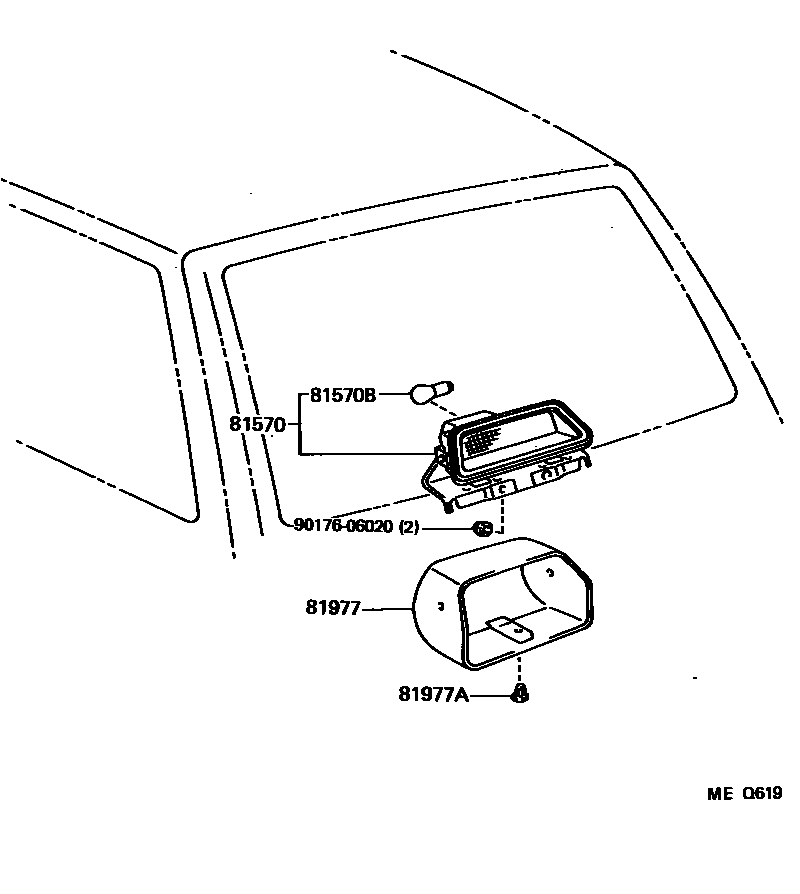

CENTER STOP LAMP

81570LAMP ASSY, CENTER STOP

main81570-10040iEP71..3D198906-198912

81570BBULB (FOR CENTER STOP LAMP)

main99132-11270iEP71..3D198906-198912

12V 27W

81977COVER, CENTER STOP LAMP

main81977-12110-03iEP71..3D198906-198912

GRAY(101),SHADOW GRAY

main81977-12110-06iEP71..3D198906-198912

BROWN(4J4),BROWN

81977ACLIP (FOR CENTER STOP LAMP)

main90467-07055-03×3iEP71..3D198906-198912

GRAY(101),GRAY

main90467-07055-06×3iEP71..3D198906-198912

BROWN(4J4),BROWN

9017606020

main90176-06020

5 parts on this diagram · 1 diagram in section
