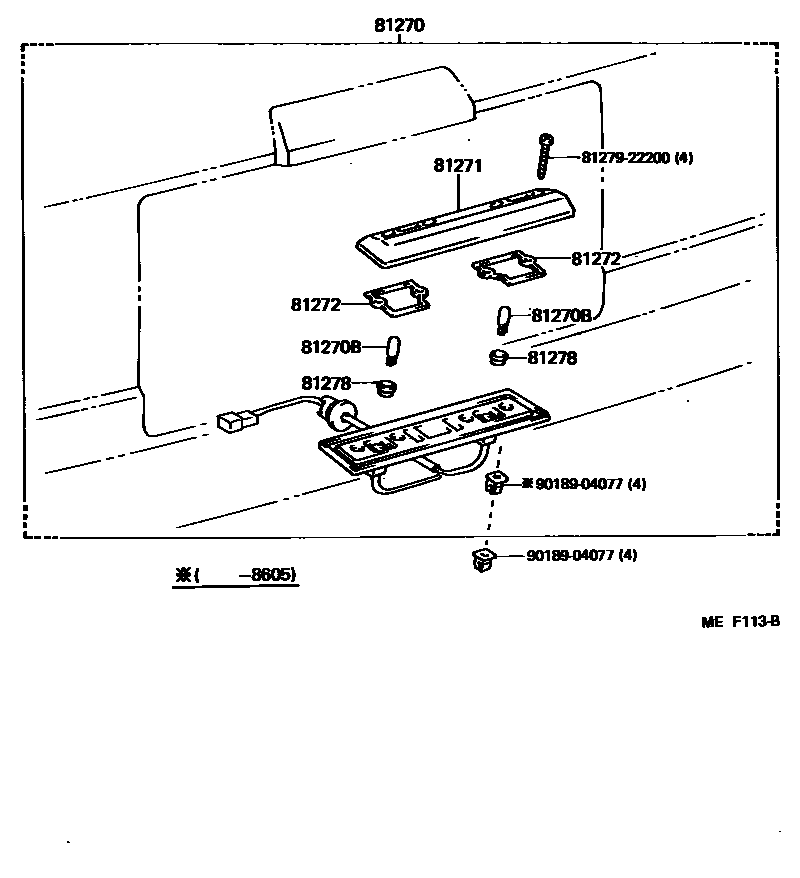

REAR LICENSE PLATE LAMP

81270LAMP ASSY, LICENSE PLATE

main81270-22200iEP7#198410-198912

81270BBULB (FOR LICENSE PLATE LAMP)

main99132-12050×2iEP7#198410-198912

12V 5W,12V 5W

81271LENS, LICENSE PLATE LAMP

main81271-22200iEP7#198410-198912

81272GASKET, LICENSE PLATE LAMP LENS

main81272-22200×2iEP7#198410-198912

81278COVER, LICENSE PLATE LAMP

main81277-22200×2iEP7#198410-198912

8127922200WASHER, SIDE TURN SIGNAL LAMP

main81279-22200

9018904077

main90189-04077

7 parts on this diagram · 1 diagram in section
