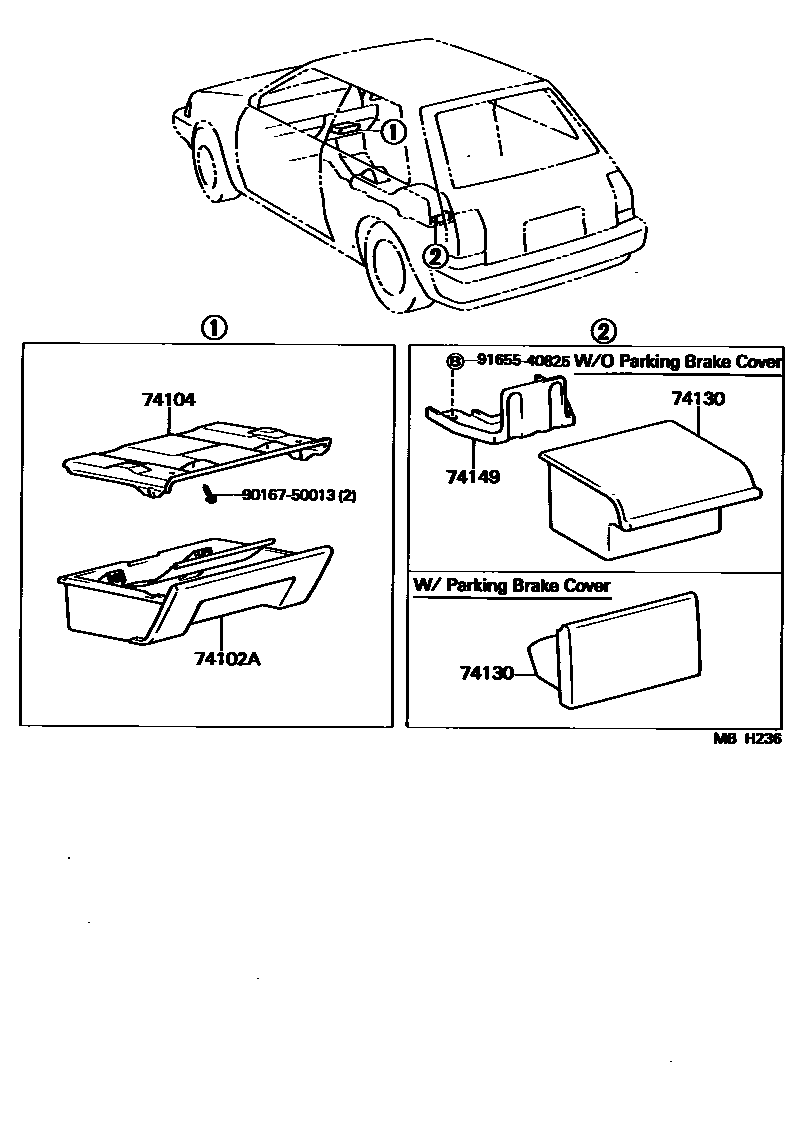

ASH RECEPTACLE

74102ARECEPTACLE ASSY, FRONT ASH

main74102-10030iEP7#198410-198912

74104RETAINER SUB-ASSY, ASH RECEPTACLE, NO.1

main74104-10060iEP7#198410-198912

74130RECEPTACLE ASSY, REAR ASH

main74130-12040-14iEP70,71..XL198410-198612

W/PARKING BRAKE COVER,BLUE,BLUE

main74130-12040-23iEP70,71..XL198410-198912

W/PARKING BRAKE COVER,GRAY,GRAY

main74130-12040-36iEP70,71..XL198612-198912

W/PARKING BRAKE COVER,BROWN,BROWN

main74130-20060-01iEP70,71198410-198912

W/O PARKING BRAKE COVER,BLACK,BLACK

74149SUPPORT, REAR ASH RECEPTACLE

main74149-10010iEP70,71198410-198912

9016750013

main90167-50013

9165540825

main91655-40825

6 parts on this diagram · 1 diagram in section
