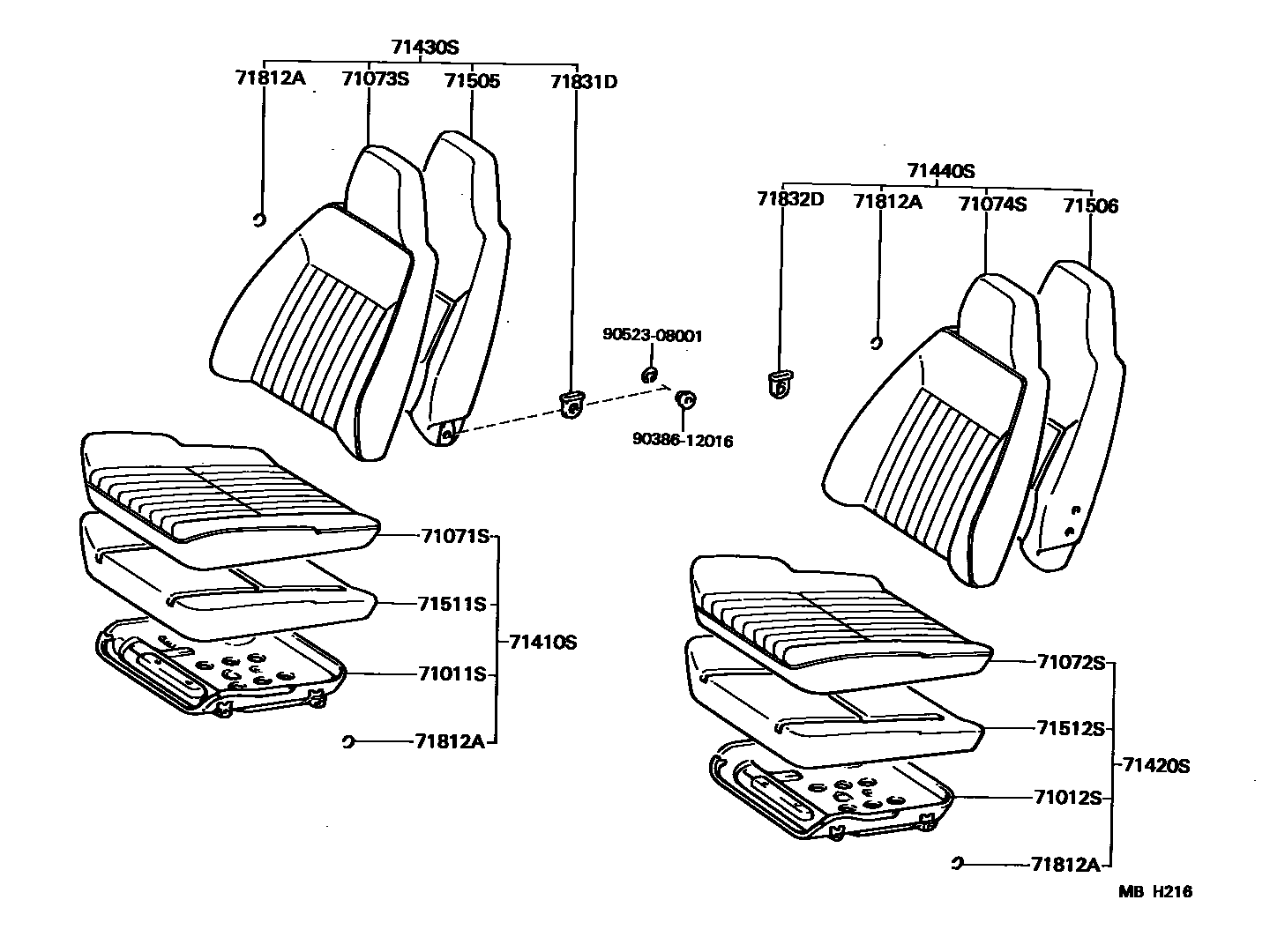

FRONT SEAT & SEAT TRACK

0001 1HIGHT BACK SEAT 0002 1LOW BACK SEAT 0003 1MALAYSIA SPEC 0004 1S-PACKAGE 0005 1

71011SFRAME SUB-ASSY, FRONT SEAT CUSHION, RH

main71011-10080iEP7#198612-198912

main71011-10120iEP7#198410-198612

71012SFRAME SUB-ASSY, FRONT SEAT CUSHION, LH

main71012-10010iEP7#198612-198912

main71012-10040iEP7#198410-198612

71071SCOVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71071-10560-03iEP70,76..CS,STD198410-198612

PF,*HBS,GRAY,GRAY

main71071-10560-04iEP70,76..CS,STD198410-198612

PF,*HBS,BLUE,BLUE

main71071-10570-03iEP70,71..XL198410-198601

FULL FB,GRAY,GRAY

main71071-10570-04iEP70,71..XL198410-198601

FULL FB,BLUE,BLUE

main71071-10570-13iEP70,71..XL198601-198612

FULL FB,GRAY,GRAY

main71071-10570-14iEP70,71..XL198601-198612

FULL FB,BLUE,BLUE

main71071-10610-03iEP70..RHD..5D..5F198410-198601

MALAYSIA SPEC,FULL FB,GRAY,GRAY

main71071-10610-04iEP70..RHD..5D..5F198410-198601

MALAYSIA SPEC,FULL FB,BLUE,BLUE

main71071-10610-13iEP70..RHD..5D..5F198601-198612

MALAYSIA SPEC,FULL FB,GRAY,GRAY

main71071-10610-14iEP70..RHD..5D..5F198601-198612

MALAYSIA SPEC,FULL FB,BLUE,BLUE

main71071-10710-03iEP7#198410-198601

SEMI FB,GRAY,GRAY

main71071-10710-04iEP7#198410-198601

SEMI FB,BLUE,BLUE

main71071-10710-13iEP7#198601-198612

SEMI FB,GRAY,GRAY

main71071-10710-14iEP7#198601-198612

SEMI FB,BLUE,BLUE

main71071-10720-03iEP7#198410-198612

PF,*LBS,GRAY,GRAY

main71071-10720-04iEP7#198410-198612

PF,*LBS,BLUE,BLUE

main71071-10810-03iEP7#198612-198912

PF,*LBS,GRAY,GRAY

main71071-10810-06iEP7#198612-198912

PF,*LBS,BROWN,BROWN

main71071-10820-03iEP70,71..XL198612-198912

FB,GRAY,GRAY

main71071-10820-06iEP70,71..XL198612-198912

FB,BROWN,BROWN

main71071-10830-03iEP70..RHD..5F; EP71..5F198612-198912

S-PACKAGE,FB,GRAY,GRAY

main71071-10890-03iEP70,76..CS,STD198612-198912

PF,*HBS,GRAY,GRAY

main71071-10890-06iEP70,76..CS,STD198612-198912

PF,*HBS,BROWN,BROWN

71072SCOVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

main71071-10560-03iEP70,76..CS,STD198410-198612

PF,*HBS,GRAY,GRAY

main71071-10560-04iEP70,76..CS,STD198410-198612

PF,*HBS,BLUE,BLUE

main71071-10570-03iEP70,71..XL198410-198601

FULL FB,GRAY,GRAY

main71071-10570-04iEP70,71..XL198410-198601

FULL FB,BLUE,BLUE

main71071-10570-13iEP70,71..XL198601-198612

FULL FB,GRAY,GRAY

main71071-10570-14iEP70,71..XL198601-198612

FULL FB,BLUE,BLUE

main71071-10610-03iEP70..RHD..5D..5F198410-198601

MALAYSIA SPEC,FULL FB,GRAY,GRAY

main71071-10610-04iEP70..RHD..5D..5F198410-198601

MALAYSIA SPEC,FULL FB,BLUE,BLUE

main71071-10610-13iEP70..RHD..5D..5F198601-198612

MALAYSIA SPEC,FULL FB,GRAY,GRAY

main71071-10610-14iEP70..RHD..5D..5F198601-198612

MALAYSIA SPEC,FULL FB,BLUE,BLUE

main71071-10710-03iEP7#198410-198601

SEMI FB,GRAY,GRAY

main71071-10710-04iEP7#198410-198601

SEMI FB,BLUE,BLUE

main71071-10710-13iEP7#198601-198612

SEMI FB,GRAY,GRAY

main71071-10710-14iEP7#198601-198612

SEMI FB,BLUE,BLUE

main71071-10720-03iEP7#198410-198612

PF,*LBS,GRAY,GRAY

main71071-10720-04iEP7#198410-198612

PF,*LBS,BLUE,BLUE

main71071-10810-03iEP7#198612-198912

PF,*LBS,GRAY,GRAY

main71071-10810-06iEP7#198612-198912

PF,*LBS,BROWN,BROWN

main71071-10820-03iEP70,71..XL198612-198912

FB,GRAY,GRAY

main71071-10820-06iEP70,71..XL198612-198912

FB,BROWN,BROWN

main71071-10830-03iEP70..RHD..5F; EP71..5F198612-198912

S-PACKAGE,FB,GRAY,GRAY

main71071-10890-03iEP70,76..CS,STD198612-198912

PF,*HBS,GRAY,GRAY

main71071-10890-06iEP70,76..CS,STD198612-198912

PF,*HBS,BROWN,BROWN

71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71073-10530-03iEP7#198410-198912

RF,*LBS,GRAY,GRAY

main71073-10530-04iEP7#198410-198612

PF,*LBS,BLUE,BLUE

main71073-10530-06iEP7#198612-198912

PF,*LBS,BROWN,BROWN

main71073-10540-03iEP70,76..CS,STD198410-198912

PF,*HBS,GRAY,GRAY

main71073-10540-04iEP70,76..CS,STD198410-198612

PF,*HBS,BLUE,BLUE

main71073-10540-06iEP70,76..CS,STD198612-198912

PF,*HBS,BROWN,BROWN

main71073-10550-03iEP70..RHD..5D..5F198410-198601

MALAYSIA SPEC,FULL FB,GRAY,GRAY

main71073-10550-04iEP70..RHD..5D..5F198410-198601

MALAYSIA SPEC,FULL FB,BLUE,BLUE

main71073-10550-13iEP70..RHD..5D..5F198601-198612

MALAYSIA SPEC,FULL FB,GRAY,GRAY

main71073-10550-14iEP70..RHD..5D..5F198601-198612

MALAYSIA SPEC,FULL FB,BLUE,BLUE

main71073-10560-03iEP70,71..XL198410-198601

FULL FB,GRAY,GRAY

main71073-10560-04iEP70,71..XL198410-198601

FULL FB,BLUE,BLUE

main71073-10560-13iEP70,71..XL198601-198612

FULL FB,GRAY,GRAY

main71073-10560-14iEP70,71..XL198601-198612

FULL FB,BLUE,BLUE

main71073-10710-03iEP7#198410-198601

SEMI FB,GRAY,GRAY

main71073-10710-04iEP7#198410-198601

SEMI FB,BLUE,BLUE

main71073-10710-13iEP7#198601-198612

SEMI FB,GRAY,GRAY

main71073-10710-14iEP7#198601-198612

SEMI FB,BLUE,BLUE

main71073-10810-03iEP70,71..XL198612-198912

FB,GRAY,GRAY

main71073-10810-06iEP70,71..XL198612-198912

FB,BROWN,BROWN

main71073-10820-03iEP70..RHD..5F; EP71..5F198612-198912

S-PACKAGE,FB,GRAY,GRAY

71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71074-10030-03iEP7#198410-198912

PF,*LBS,GRAY,GRAY

main71074-10030-04iEP7#198410-198612

PF,*LBS,BLUE,BLUE

main71074-10030-06iEP7#198612-198912

RF,*LBS,BROWN,BROWN

main71074-10040-03iEP70,76..CS,STD198410-198912

PF,*HBS,GRAY,GRAY

main71074-10040-04iEP70,76..CS,STD198410-198612

PF,*HBS,BLUE,BLUE

main71074-10040-06iEP70,76..CS,STD198612-198912

PF,*HBS,BROWN,BROWN

main71074-10050-03iEP70..RHD..5D..5F198410-198601

MALAYSIA SPEC,FULL FB,GRAY,GRAY

main71074-10050-04iEP70..RHD..5D..5F198410-198601

MALAYSIA SPEC,FULL FB,BLUE,BLUE

main71074-10050-13iEP70..RHD..5D..5F198601-198612

MALAYSIA SPEC,FULL FB,GRAY,GRAY

main71074-10050-14iEP70..RHD..5D..5F198601-198612

MALAYSIA SPEC,FULL FB,BLUE,BLUE

main71074-10060-03iEP70,71..XL198410-198601

FULL FB,GRAY,GRAY

main71074-10060-04iEP70,71..XL198410-198601

FULL FB,BLUE,BLUE

main71074-10060-13iEP70,71..XL198601-198612

FULL FB,GRAY,GRAY

main71074-10060-14iEP70,71..XL198601-198612

FULL FB,BLUE,BLUE

main71074-10190-03iEP7#198410-198601

SEMI FB,GRAY,GRAY

main71074-10190-04iEP7#198410-198601

SEMI FB,BLUE,BLUE

main71074-10190-13iEP7#198601-198612

SEMI FB,GRAY,GRAY

main71074-10190-14iEP7#198601-198612

SEMI FB,BLUE,BLUE

main71074-10300-03iEP70..RHD..5F; EP71..5F198612-198912

S-PACKAGE,FB,GRAY,GRAY

main71074-10320-03iEP70,71..XL198612-198912

FB,GRAY,GRAY

main71074-10320-06iEP70,71..XL198612-198912

FB,BROWN,BROWN

71410SCUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

main71410-10710-03iEP70,76..CS,STD198410-198612

PF,*HBS,GRAY,GRAY

main71410-10710-04iEP70,76..CS,STD198410-198612

PF,*HBS,BLUE,BLUE

main71410-10720-03iEP70,71..XL198410-198601

FULL FB,GRAY,GRAY

main71410-10720-04iEP70,71..XL198410-198601

FULL FB,BLUE,BLUE

main71410-10720-13iEP70,71..XL198601-198612

FULL FB,GRAY,GRAY

main71410-10720-14iEP70,71..XL198601-198612

FULL FB,BLUE,BLUE

main71410-10850-03iEP7#198410-198601

SEMI FB,GRAY,GRAY

main71410-10850-04iEP7#198410-198601

SEMI FB,BLUE,BLUE

main71410-10850-13iEP7#198601-198612

SEMI FB,GRAY,GRAY

main71410-10850-14iEP7#198601-198612

SEMI FB,BLUE,BLUE

main71410-10860-03iEP7#198410-198612

PF,*LBS,GRAY,GRAY

main71410-10860-04iEP7#198410-198612

PF,*LBS,BLUE,BLUE

main71410-1C060-03iEP7#198612-198912

PF,*LBS,GRAY,GRAY

main71410-1C060-06iEP7#198612-198912

PF,*LBS,BROWN,BROWN

main71410-1C080-03iEP70,71..LHD..XL198612-198912

W/SEAT UNDER POCKET,FB,GRAY,GRAY

main71410-1C080-06iEP70,71..LHD..XL198612-198912

W/SEAT UNDER POCKET,FB,BROWN,BROWN

main71410-1C100-03iEP70..RHD..5F; EP71..5F198612-198912

S-PACKAGE,FB,GRAY,GRAY

main71410-1C150-03iEP70,76..CS,STD198612-198912

PF,*HBS,GRAY,GRAY

main71410-1C150-06iEP70,76..CS,STD198612-198912

PF,*HBS,BROWN,BROWN

71420SCUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE)

main71420-10550-03iEP70,76..CS,STD198410-198612

PF,*HBS,GRAY,GRAY

main71420-10550-04iEP70,76..CS,STD198410-198612

PF,*HBS,BLUE,BLUE

main71420-10560-03iEP70,71..XL198410-198601

FULL FB,GRAY,GRAY

main71420-10560-04iEP70,71..XL198410-198601

FULL FB,BLUE,BLUE

main71420-10560-13iEP70,71..XL198601-198612

FULL FB,GRAY,GRAY

main71420-10560-14iEP70,71..XL198601-198612

FULL FB,BLUE,BLUE

main71420-10680-03iEP7#198410-198601

SEMI FB,GRAY,GRAY

main71420-10680-04iEP7#198410-198601

SEMI FB,BLUE,BLUE

main71420-10680-13iEP7#198601-198612

SEMI FB,GRAY,GRAY

main71420-10680-14iEP7#198601-198612

SEMI FB,BLUE,BLUE

main71420-10690-03iEP7#198410-198612

PF,*LBS,GRAY,GRAY

main71420-10690-04iEP7#198410-198612

PF,*LBS,BLUE,BLUE

main71420-10750-03iEP7#198612-198912

PF,*LBS,GRAY,GRAY

main71420-10750-06iEP7#198612-198912

PF,*LBS,BROWN,BROWN

main71420-10760-03iEP70,71..XL198612-198912

FB,GRAY,GRAY

main71420-10760-06iEP70,71..XL198612-198912

FB,BROWN,BROWN

main71420-10770-03iEP70,71..RHD..XL198612-198912

W/SEAT UNDER POCKET,FB,GRAY,GRAY

main71420-10770-06iEP70,71..RHD..XL198612-198912

W/SEAT UNDER POCKET,FB,BROWN,BROWN

main71420-10790-03iEP70..RHD..5F; EP71..5F198612-198912

S-PACKAGE,FB,GRAY,GRAY

main71420-10840-03iEP70,76..CS,STD198612-198912

PF,*HBS,GRAY,GRAY

main71420-10840-06iEP70,76..CS,STD198612-198912

PF,*HBS,BROWN,BROWN

71430SBACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

main71430-10630-03iEP70,71..XL198410-198601

FULL FB,GRAY,GRAY

main71430-10630-04iEP70,71..XL198410-198601

FULL FB,BLUE,BLUE

main71430-10630-13iEP70,71..XL198601-198612

FULL FB,GRAY,GRAY

main71430-10630-14iEP70,71..XL198601-198612

FULL FB,BLUE,BLUE

main71430-10770-03iEP70,76..CS,STD198410-198912

PF,*HBS,GRAY,GRAY

main71430-10770-04iEP70,76..CS,STD198410-198612

PF,*HBS,BLUE,BLUE

main71430-10770-06iEP70,76..CS,STD198612-198912

PF,*HBS,BROWN,BROWN

main71430-10780-03iEP7#198410-198612

PF,*LBS,GRAY,GRAY

main71430-10780-04iEP7#198410-198612

PF,*LBS,BLUE,BLUE

main71430-10810-03iEP7#198410-198601

SEMI FB,GRAY,GRAY

main71430-10810-04iEP7#198410-198601

SEMI FB,BLUE,BLUE

main71430-10810-13iEP7#198601-198612

SEMI FB,GRAY,GRAY

main71430-10810-14iEP7#198601-198612

SEMI FB,BLUE,BLUE

main71430-1C020-03iEP70,71..XL198612-198912

FB,GRAY,GRAY

main71430-1C020-06iEP70,71..XL198612-198912

FB,BROWN,BROWN

main71430-1C040-03iEP70..RHD..5F; EP71..5F198612-198912

S-PACKAGE,FB,GRAY,GRAY

main71430-1C060-03iEP7#198612-198912

PF,*LBS,GRAY,GRAY

main71430-1C060-06iEP7#198612-198912

PF,*LBS,BROWN,BROWN

71440SBACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)

main71440-10630-03iEP70,71..XL198410-198601

FULL FB,GRAY,GRAY

main71440-10630-04iEP70,71..XL198410-198601

FULL FB,BLUE,BLUE

main71440-10630-13iEP70,71..XL198601-198612

FULL FB,GRAY,GRAY

main71440-10630-14iEP70,71..XL198601-198612

FULL FB,BLUE,BLUE

main71440-10760-03iEP70,76..CS,STD198410-198912

PF,*HBS,GRAY,GRAY

main71440-10760-04iEP70,76..CS,STD198410-198612

PF,*HBS,BLUE,BLUE

main71440-10760-06iEP70,76..CS,STD198612-198912

PF,*HBS,BROWN,BROWN

main71440-10770-03iEP7#198410-198612

PF,*LBS,GRAY,GRAY

main71440-10770-04iEP7#198410-198612

PF,*LBS,BLUE,BLUE

main71440-10800-03iEP7#198410-198601

SEMI FB,GRAY,GRAY

main71440-10800-04iEP7#198410-198601

SEMI FB,BLUE,BLUE

main71440-10800-13iEP7#198601-198612

SEMI FB,GRAY,GRAY

main71440-10800-14iEP7#198601-198612

SEMI FB,BLUE,BLUE

main71440-10880-03iEP70..RHD..5F; EP71..5F198612-198912

S-PACKAGE,FB,GRAY,GRAY

main71440-1C010-03iEP70,71..XL198612-198912

FB,GRAY,GRAY

main71440-1C010-06iEP70,71..XL198612-198912

FB,BROWN,BROWN

main71440-1C040-03iEP7#198612-198912

PF,*LBS,GRAY,GRAY

main71440-1C040-06iEP7#198612-198912

PF,*LBS,BROWN,BROWN

71505PAD SUB-ASSY, FRONT SEATBACK W/FRAME, RH

main71505-10010iEP70,76..CS,STD198410-198912

*HBS

main71505-10020iEP7#198410-198912

*LBS

main71505-10030iEP70..RHD..5F; EP71..5F198612-198912

S-PACKAGE

71506PAD SUB-ASSY, FRONT SEATBACK W/FRAME, LH

main71506-10010iEP70,76..CS,STD198410-198912

*HBS

main71506-10020iEP7#198410-198912

*LBS

main71506-10030iEP70..RHD..5F; EP71..5F198612-198912

S-PACKAGE

71511SPAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71511-10100iEP7#198612-198912

main71511-10170iEP7#198410-198612

71512SPAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

main71511-10100iEP7#198612-198912

main71511-10170iEP7#198410-198612

71812ARING, HOG, SMALL (FOR FRONT SEAT)

main90468-18071×33iEP7#198410-198912

71831DCOVER, FRONT SEAT HINGE, RH

main71831-10010iEP7#198410-198912

71832DCOVER, FRONT SEAT HINGE, LH

main71831-10010iEP7#198410-198912

9038612016

main90386-12016

9052308001

main90523-08001

19 parts on this diagram · 5 diagrams in section
