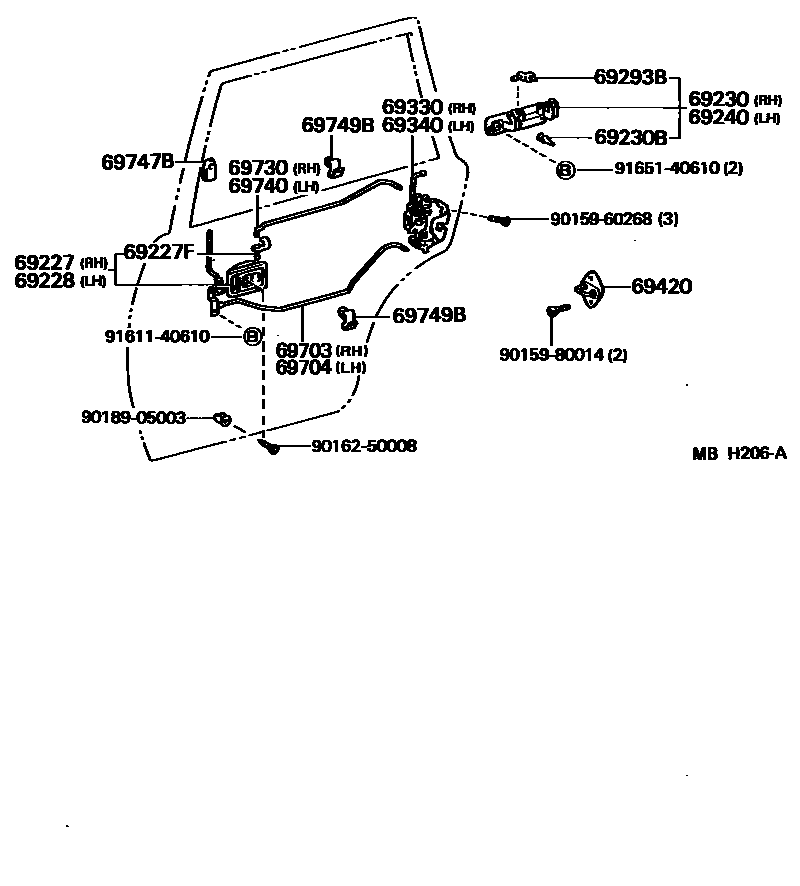

REAR DOOR LOCK & HANDLE
69227HANDLE, REAR DOOR INSIDE, RH
GRAY,GRAY
BLUE,BLUE
BROWN,BROWN
GRAY,GRAY
69227FSNAP(FOR REAR DOOR INSIDE HANDLE)
RH
LH
69228HANDLE, REAR DOOR INSIDE, LH
GRAY,GRAY
BLUE,BLUE
BROWN,BROWN
GRAY,GRAY
69230HANDLE ASSY, REAR DOOR OUTSIDE, RH
69230BCUSHION(FOR REAR DOOR OUTSIDE HANDLE)
69240HANDLE ASSY, REAR DOOR OUTSIDE, LH
69293BSNAP, REAR DOOR OUTSIDE HANDLE
RH
LH
69330LOCK ASSY, REAR DOOR, RH
69340LOCK ASSY, REAR DOOR, LH
69420PLATE ASSY, REAR DOOR LOCK STRIKER
69703LINK SUB-ASSY, REAR DOOR LOCKING CONTROL, RH
69704LINK SUB-ASSY, REAR DOOR LOCKING CONTROL, LH
69730LINK ASSY, REAR DOOR OPEN CONTROL, RH
69740LINK ASSY, REAR DOOR OPEN CONTROL, LH
69747BBUTTON, DOOR LOCKING(FOR REAR DOOR)
BLACK
BLACK
69749BCLAMP, REAR DOOR LOCK LINK
9015960268
main90159-60268
9015980014
main90159-80014
9016250008
main90162-50008
9018905003
main90189-05003
9161140610
main91611-40610
9165140610
main91651-40610
22 parts on this diagram · 1 diagram in section
