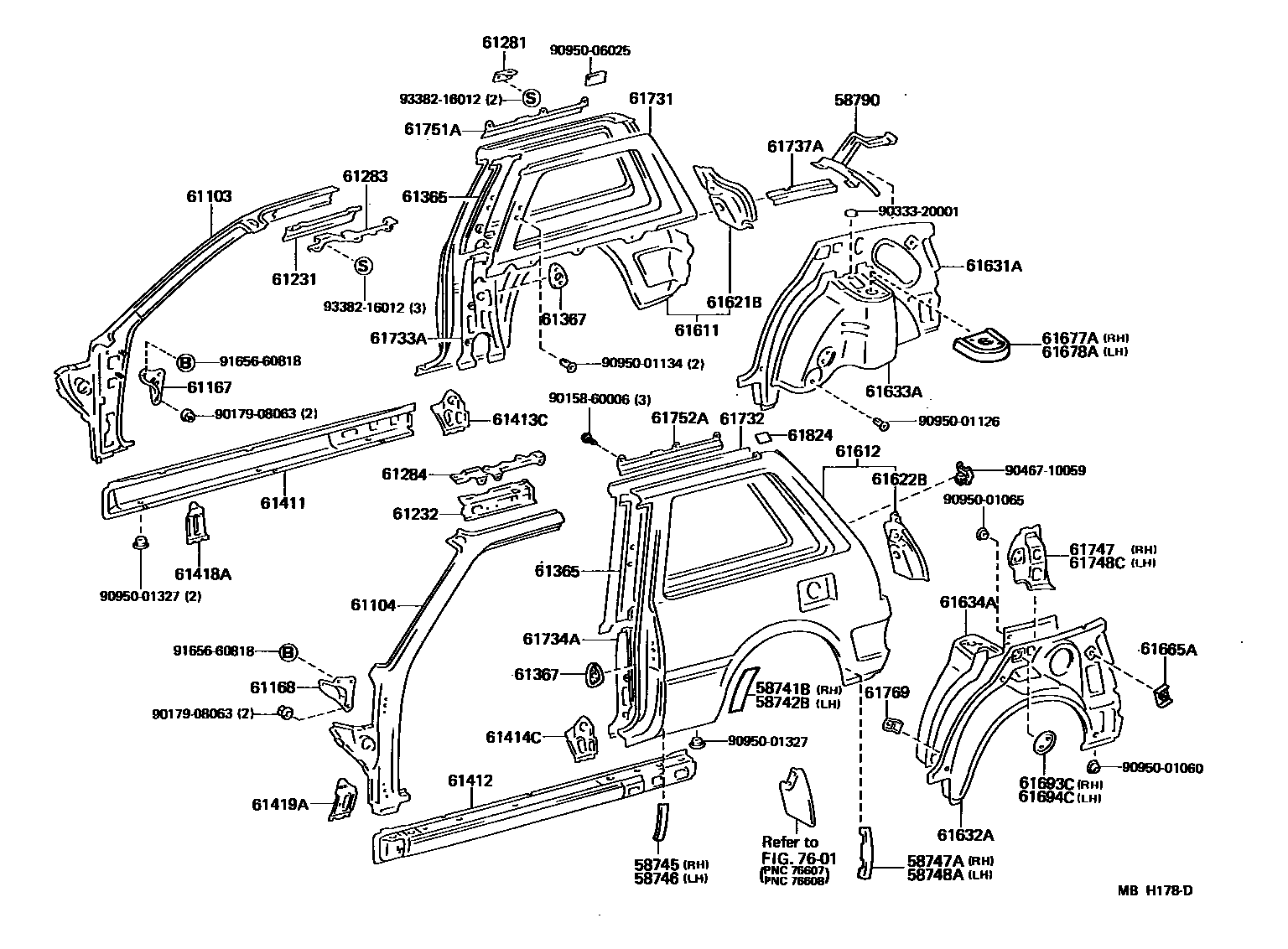

SIDE MEMBER
58741BPROTECTOR, QUARTER PANEL, RH
58742BPROTECTOR, QUARTER PANEL, LH
58745PROTECTOR, QUARTER PANEL, FRONT RH
58746PROTECTOR, QUARTER PANEL, FRONT LH
58747APROTECTOR, QUARTER PANEL, REAR RH
58748APROTECTOR, QUARTER PANEL, REAR LH
61103PILLAR SUB-ASSY, FRONT BODY, RH
61104PILLAR SUB-ASSY, FRONT BODY, LH
W/O RR WIPER
W/O RR WIPER
W/RR WIPER
W/RR WIPER
61167BRACKET, INSTRUMENT PANEL TO COWL SIDE, RH
61168BRACKET, INSTRUMENT PANEL TO COWL SIDE, LH
61231RAIL, ROOF SIDE, INNER RH
61232RAIL, ROOF SIDE, INNER LH
61281BRACKET, SLIDING ROOF HOUSING MOUNTING, NO.1
61283BRACKET, SLIDING ROOF HOUSING MOUNTING, NO.3 RH
61284BRACKET, SLIDING ROOF HOUSING MOUNTING, NO.3 LH
61365REINFORCEMENT, BELT ANCHOR TO CENTER PILLAR
RH
RH,W/HINGE TYPE
LH,W/FIXED TYPE
LH,W/HINGE TYPE
61367REINFORCEMENT, BELT ANCHOR TO CENTER PILLAR, LOWER
61411PANEL, ROCKER, OUTER RH
61412PANEL, ROCKER, OUTER LH
61413CREINFORCEMENT, ROCKER PANEL, NO.2 RH
61414CREINFORCEMENT, ROCKER PANEL, NO.2 LH
61418AREINFORCEMENT, ROCKER PANEL, RH
61419AREINFORCEMENT, ROCKER PANEL, LH
61611PANEL, QUARTER, RH
INDONESIA SPEC
61612PANEL, QUARTER, LH
MALAYSIA,INDONESIA SPEC
W/FUEL LID OPENER
W/FUEL LID OPENER
INDONESIA SPEC
INDONESIA SPEC,W/FUEL OPENER
61621BTROUGH, BACK DOOR OPENING, FRONT RH
61622BTROUGH, BACK DOOR OPENING, FRONT LH
61631APANEL, QUARTER WHEEL HOUSE, OUTER RH
61632APANEL, QUARTER WHEEL HOUSE, OUTER LH
61633APANEL, QUARTER WHEEL HOUSE, INNER RH
61634APANEL, QUARTER WHEEL HOUSE, INNER LH
61665AREINFORCEMENT, SAFETY BELT ANCHORAGE, REAR
61677APLATE, REAR SPRING SUPPORT, RH
HARSH ROAD PACKAGE 2
61678APLATE, REAR SPRING SUPPORT, LH
HARSH ROAD PACKAGE 2
61693CRETAINER, REAR SEATBACK SET, RH
61694CRETAINER, REAR SEATBACK SET, LH
61731PANEL, ROOF SIDE, INNER UPPER RH
*45
W/FIXED TYPE,SUN ROOF,W/O *PT
W/FIXED TYPE,*PT
W/HINGE TYPE,W/O *PT
W/HINGE TYPE,*PT
*45,W/FIXED TYPE,W/O *PT
*45,W/FIXED TYPE,*PT
*45,W/HINGE TYPE,W/O *PT
*45,W/HINGE TYPE,*PT
W/*PT
*45,W/*PT
61732PANEL, ROOF SIDE, INNER UPPER LH
W/FIXED TYPE,W/O *PT,SUN ROOF
*45
W/FIXED TYPE,SUN ROOF,W/O *PT
W/*PT
*45,W/*PT
W/FIXED TYPE,*PT
W/HINGE TYPE,W/O *PT
W/HINGE TYPE,*PT
*45,W/O *PT
*45,W/FIXED TYPE,*PT
*45,W/HINGE TYPE,W/O *PT
*45,W/HINGE TYPE,*PT
61733APANEL, ROOF SIDE, INNER FRONT RH
61734APANEL, ROOF SIDE, INNER FRONT LH
61737APLATE, ROOF SIDE INNER RAIN PROOF, RH
61747BRACE, ROOF SIDE INNER TO WHEEL HOUSE, RH
W/*PT
61748CBRACE, ROOF SIDE INNER TO WHEEL HOUSE, LH
W/*PT
61751ARETAINER, QUARTER TRIM, RH
61752ARETAINER, QUARTER TRIM, LH
61769RETAINER, QUARTER TRIM, LOWER
61824PLATE, NOISE CONTROL, NO.1
7601MUDGUARD & SPOILER
9015860006
main90158-60006
9017908063
main90179-08063
9033320001
main90333-20001
9046710059
main90467-10059
9095001060
main90950-01060
9095001065
main90950-01065
9095001126
main90950-01126
9095001134
main90950-01134
9095001327
main90950-01327
9095006025
main90950-06025
9165660818
main91656-60818
9338216012
main93382-16012
61 parts on this diagram · 2 diagrams in section
