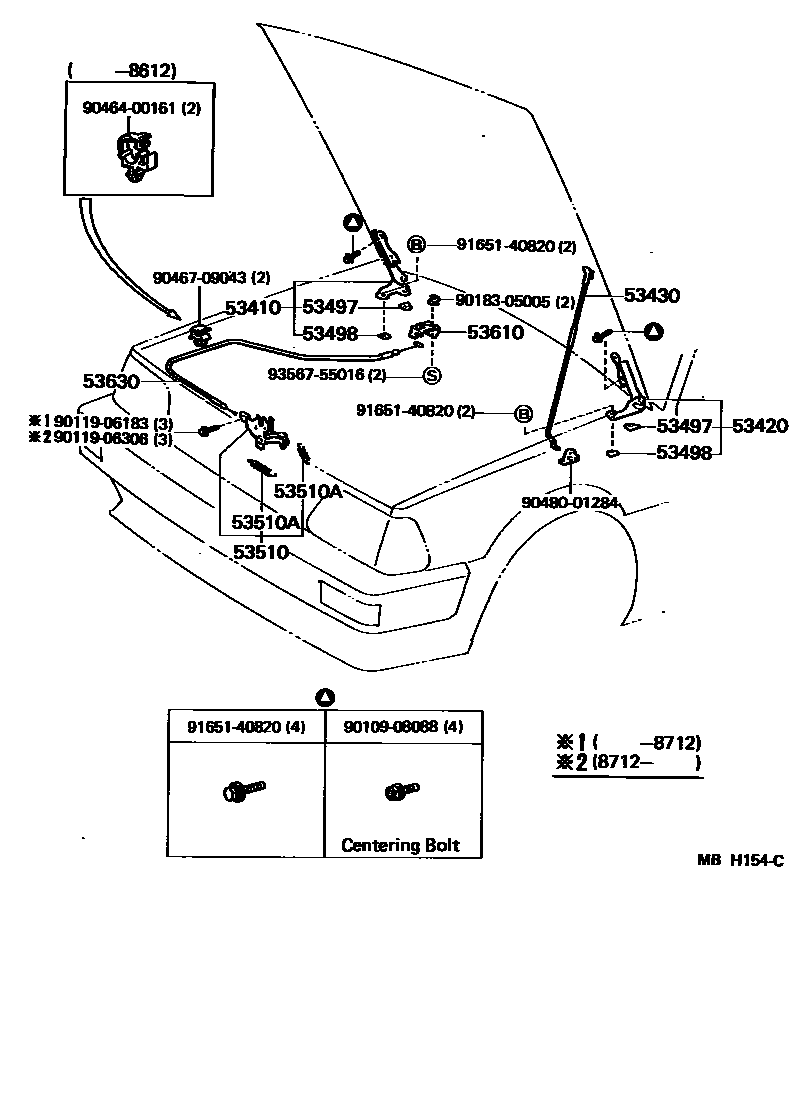

HOOD LOCK & HINGE

53410HINGE ASSY, HOOD, RH

main53410-12050iEP7#198504-198808

main53410-12080iEP7#198410-198504

main53420-12041iEP7#198808-198912

53420HINGE ASSY, HOOD, LH

main53420-12040iEP7#198504-198808

main53420-12041iEP7#198808-198912

main53420-12070iEP7#198410-198504

53430SUPPORT ASSY, HOOD

main53440-10010iEP7#198410-198504

main53440-10020iEP7#198504-198912

53497PAD, HOOD HINGE, NO.1

main53497-12010×2iEP7#198410-198808

T=1.0

main53497-12011×2iEP7#198808-198912

T=0.5

53498PAD, HOOD HINGE, NO.2

main53498-12010×2iEP7#198410-198808

main53498-12011×2iEP7#198808-198912

53510LOCK ASSY, HOOD

main53510-10070iEP7#..LHD198410-198612

main53510-10110iEP70,71..RHD198612-198912

main53510-10120iEP7#..LHD198612-198912

main53510-10130iEP70,71..RHD198607-198612

main53510-10140iEP70,71..RHD..5D..5F198807-198912

INDONESIA SPEC

main53510-22120iEP70,71..RHD198410-198607

53510ASPRING, TENSION(FOR HOOD LOCK)

main90506-09029iEP7#198410-198912

WD=0.9,L=39.6

main90506-18024iEP7#198410-198912

L=54.0

main90506-20043iEP70,71..RHD..5D..5F198807-198912

INDONESIA SPEC L=55.0

53610LEVER ASSY, HOOD LOCK RELEASE

main53601-10020-03iEP7#198410-198612

GRAY,GRAY

main53601-10020-04iEP7#198410-198612

BLUE,BLUE

main53601-10020-06iEP7#198612-198912

BROWN,BROWN

main53601-10020-23iEP7#198612-198912

GRAY,GRAY

53630CABLE ASSY, HOOD LOCK CONTROL

main53630-10150iEP7#198410-198612

main53630-10180iEP7#198612-198912

9010908088

main90109-08088

9011906183

main90119-06183

9011906306

main90119-06306

9018305005

main90183-05005

9046400161

main90464-00161

9046709043

main90467-09043

9048001284

main90480-01284

9165140820

main91651-40820

9356755016

main93567-55016

18 parts on this diagram · 1 diagram in section
