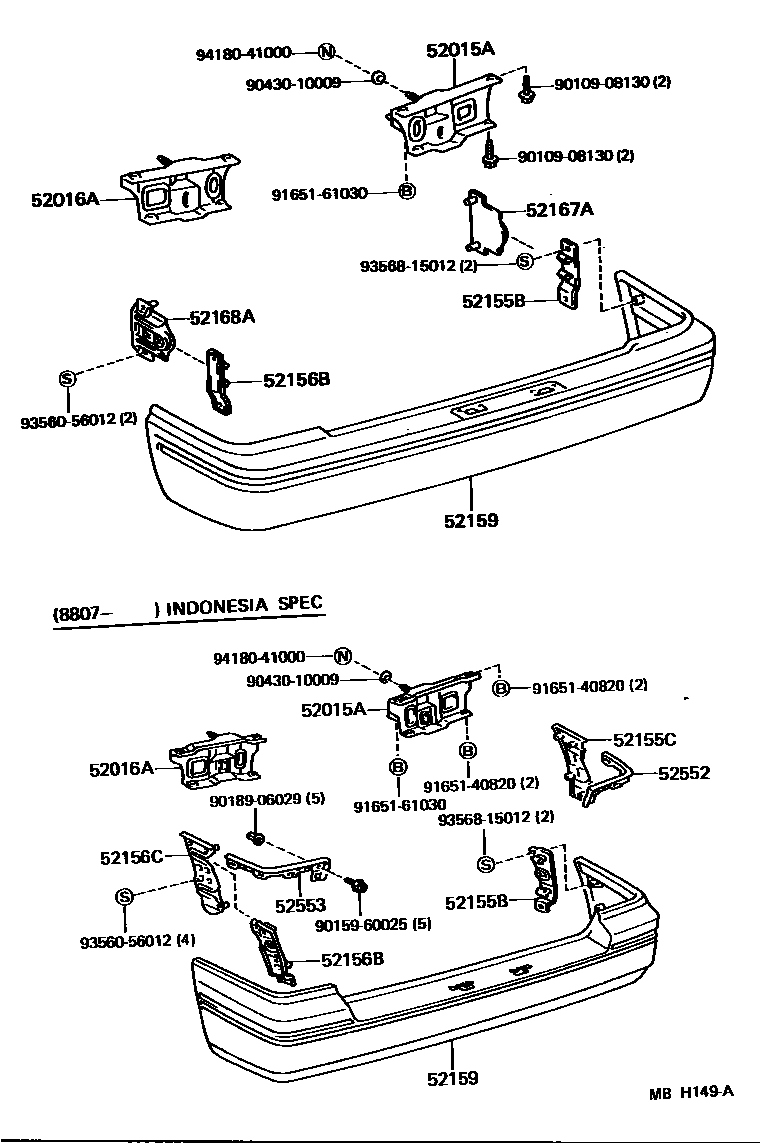

REAR BUMPER & BUMPER STAY

52015AARM SUB-ASSY, REAR BUMPER, RH

main52015-10060iEP7#198410-198912

main52015-10080iEP70,71..RHD..5D..5F198807-198912

INDONESIA SPEC

52016AARM SUB-ASSY, REAR BUMPER, LH

main52016-10060iEP7#198410-198912

main52016-10080iEP70,71..RHD..5D..5F198807-198912

INDONESIA SPEC

52155BSUPPORT, REAR BUMPER SIDE, NO.2 RH

main52157-10020iEP7#198410-198912

main52157-10050iEP70,71..RHD..5D..5F198807-198912

INDONESIA SPEC

52155CSUPPORT, REAR BUMPER SIDE, NO.1 RH

main52155-10030iEP70,71..RHD..5D..5F198807-198912

INDONESIA SPEC

52156BSUPPORT, REAR BUMPER SIDE, NO.2 LH

main52157-10020iEP7#198410-198912

main52158-10020iEP70,71..RHD..5D..5F198807-198912

INDONESIA SPEC

52156CSUPPORT, REAR BUMPER SIDE, NO.1 LH

main52156-10020iEP70,71..RHD..5D..5F198807-198912

INDONESIA SPEC

52159COVER, REAR BUMPER

main52159-10070iEP7#198410-198912

main52159-10110iEP70,71..RHD..5D..5F198807-198912

INDONESIA SPEC

52167ASUPPORT, REAR BUMPER SIDE, NO.4 RH

main52167-10020iEP7#198410-198912

52168ASUPPORT, REAR BUMPER SIDE, NO.4 LH

main52167-10020iEP7#198410-198912

52552FILLER, REAR BUMPER, RH

main52552-10020iEP70,71..RHD..5D..5F198807-198912

INDONESIA SPEC

52553FILLER, REAR BUMPER, LH

main52553-10020iEP70,71..RHD..5D..5F198807-198912

INDONESIA SPEC

9010908130

main90109-08130

9015960025

main90159-60025

9018906029

main90189-06029

9043010009

main90430-10009

9165140820

main91651-40820

9165161030

main91651-61030

9356056012

main93560-56012

9356815012

main93568-15012

9418041000

main94180-41000

20 parts on this diagram · 1 diagram in section
