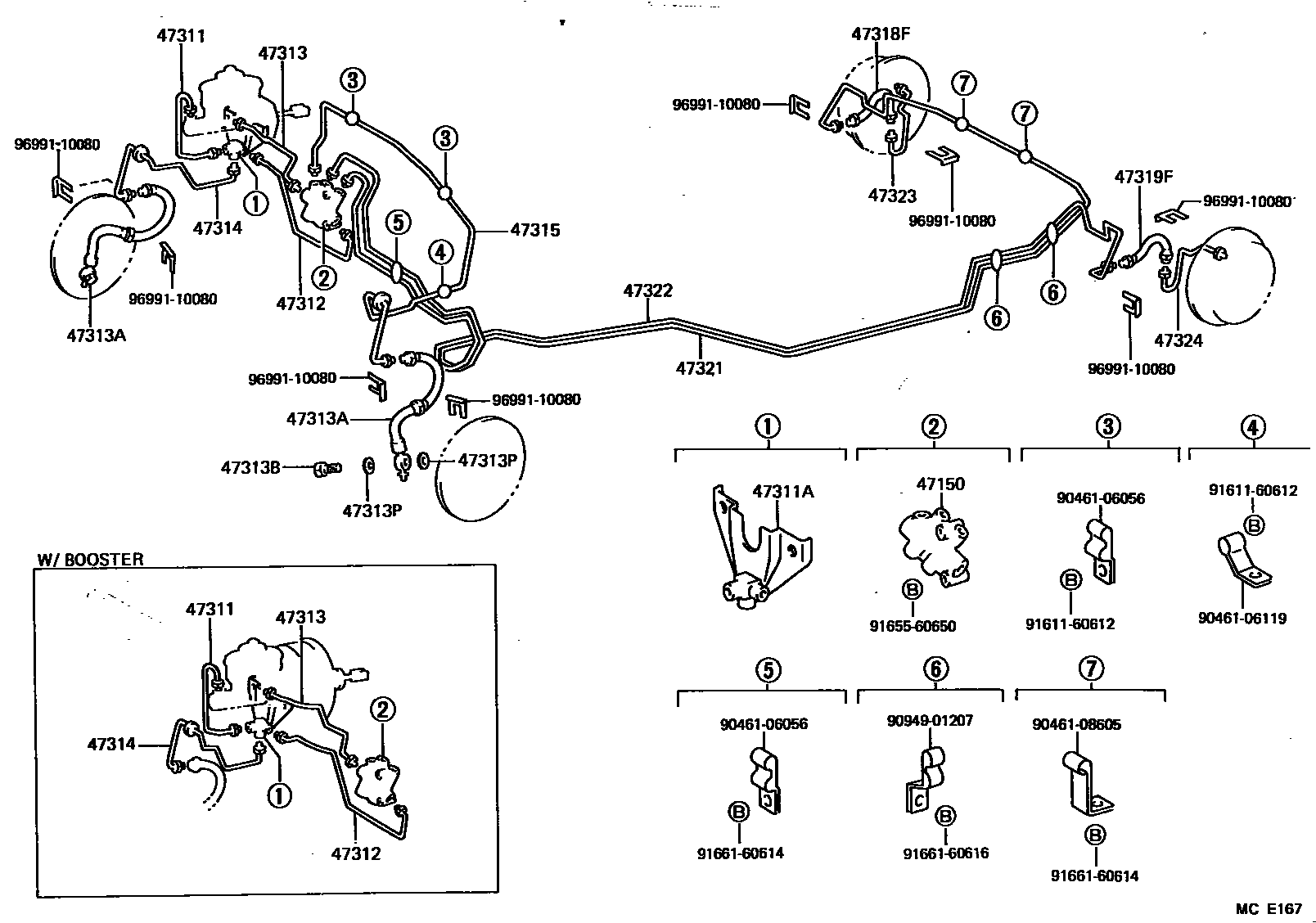

BRAKE TUBE & CLAMP

0001 1 0002 1

47150VALVE ASSY, PROPORTIONING

main47150-12050iEP7#198410-198912

47311TUBE, FRONT BRAKE, NO.1

main47311-10110iEP70,71..RHD198410-198912

main47311-10120iEP7#..LHD198410-198912

W/BOOSTER

main47311-10130iEP70..LHD198410-198912

47311AWAY(FOR FRONT BRAKE TUBE)

main90413-10004iEP7#..LHD198410-198912

main90413-10171iEP70,71..RHD198410-198912

47312TUBE, FRONT BRAKE, NO.2

main47312-10141iEP70,71..RHD198410-198912

W/BOOSTER

main47312-10150iEP7#..LHD198410-198912

main47312-10161iEP70..RHD198410-198912

47313TUBE, FRONT BRAKE, NO.3

main47313-10210iEP70,71..RHD198410-198912

W/BOOSTER

main47313-10220iEP7#..LHD198410-198912

W/BOOSTER

main47313-10230iEP70..RHD198410-198912

main47313-10240iEP70..LHD198410-198912

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90947-02461×2iEP7#198410-198609

main90947-02511iEP7#198609-198912

RH

main90947-02512iEP7#198609-198912

LH

47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)

main90401-10015×2iEP7#198410-198912

47313PGASKET(FOR FRONT FLEXIBLE HOSE)

main90430-10074×4iEP7#198410-198912

47314TUBE, FRONT BRAKE, NO.4

main47314-10181iEP70..RHD198410-198912

main47314-10190iEP7#..LHD198410-198912

main47314-10201iEP70,71..RHD198410-198912

W/BOOSTER

47315TUBE, FRONT BRAKE, NO.5

main47315-10110iEP70,71..RHD198410-198912

main47315-10120iEP7#..LHD198410-198912

47318FHOSE, FLEXIBLE(FOR REAR RH)

main96950-32405iEP7#198410-198708

main96950-32406iEP7#198708-198912

47319FHOSE, FLEXIBLE(FOR REAR LH)

main96950-32405iEP7#198410-198708

main96950-32406iEP7#198708-198912

47321TUBE, REAR BRAKE, NO.1

main47321-10110iEP70,71..RHD198410-198912

main47321-10140iEP7#..LHD198410-198912

47322TUBE, REAR BRAKE, NO.2

main47322-10080iEP70,71..RHD198410-198912

main47322-10090iEP7#..LHD198410-198912

47323TUBE, REAR BRAKE, NO.3

main47323-10040iEP7#198410-198912

47324TUBE, REAR BRAKE, NO.4

main47324-10040iEP7#198410-198912

9046106056

main90461-06056

9046106119

main90461-06119

9046108605

main90461-08605

9094901207

main90949-01207

9161160612

main91611-60612

9165560650

main91655-60650

9166160614

main91661-60614

9166160616

main91661-60616

9699110080

main96991-10080

25 parts on this diagram · 2 diagrams in section
