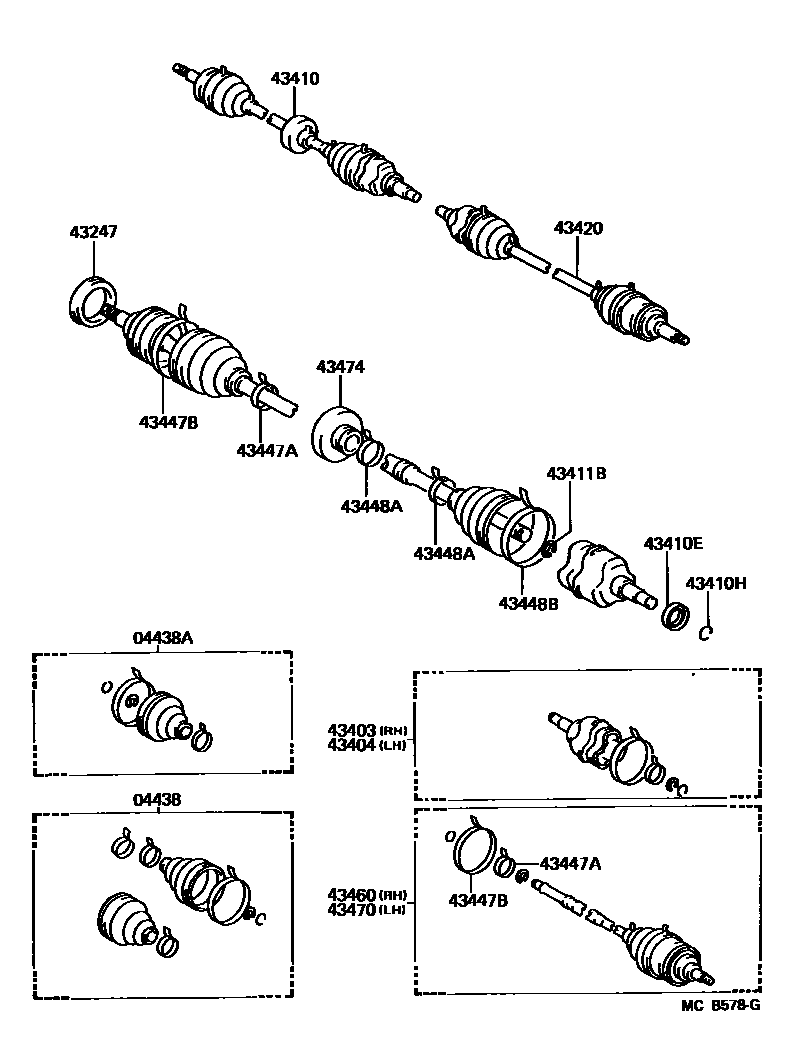

FRONT DRIVE SHAFT

04438BOOT KIT, FRONT DRIVE SHAFT

main04438-10020×2i198410-198601

main04438-10021×2i198601-198609

sub04438-10110

main04438-10022×2i198609-198912

sub04438-16040

04438ABOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT

main04438-10010×2i198410-198601

main04438-10011×2i198601-198912

sub04438-16030

43247DEFLECTOR, FRONT WHEEL BEARING DUST, NO.2

main43247-10010i198712-198912

43403JOINT SET, FRONT AXLE INBOARD, RH

main43403-19045i198410-198601

main43403-19046i198601-198912

sub43403-10010

43404JOINT SET, FRONT AXLE INBOARD, LH

main43403-19045i198410-198601

main43403-19046i198601-198912

sub43403-10010

43410SHAFT ASSY, FRONT DRIVE, RH

main43410-10010i198410-198504

main43410-10020i198504-198912

sub43410-10021

sub43502-10030

43410ECOVER, DUST (FOR FRONT DRIVE SHAFT)

main41336-12010×2i198410-198912

43410HRING, HOLE SNAP (FOR FRONT DRIVE SHAFT)

main90521-26004×2i198410-198912

43411BRING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER)

main90520-22001×2i198410-198912

sub90520-22029

43420SHAFT ASSY, FRONT DRIVE, LH

main43420-10010i198410-198504

main43420-10020i198504-198912

sub43420-10021

sub43502-10030

43447ACLAMP, NO.1 (FOR FRONT AXLE OUTBOARD JOINT BOOT SETTING)

main90949-01078×2i198410-198912

43447BCLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT SETTING)

main90949-01080×2i198410-198912

43448ACLAMP, NO.1 (FOR FRONT AXLE INBOARD JOINT BOOT SETTING)

main90949-01078×2i198410-198912

43448BCLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT SETTING)

main90949-01146×2i198410-198912

43460SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH

main43460-19075i198410-198504

main43460-19085i198504-198601

main43460-19086i198601-198912

sub43460-10H00

43470SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, LH

main43470-19075i198410-198504

main43470-19085i198504-198601

main43470-19086i198601-198912

sub43470-10H00

43474DAMPER, DRIVE SHAFT

main43474-10010i198501-198912

17 parts on this diagram · 1 diagram in section
