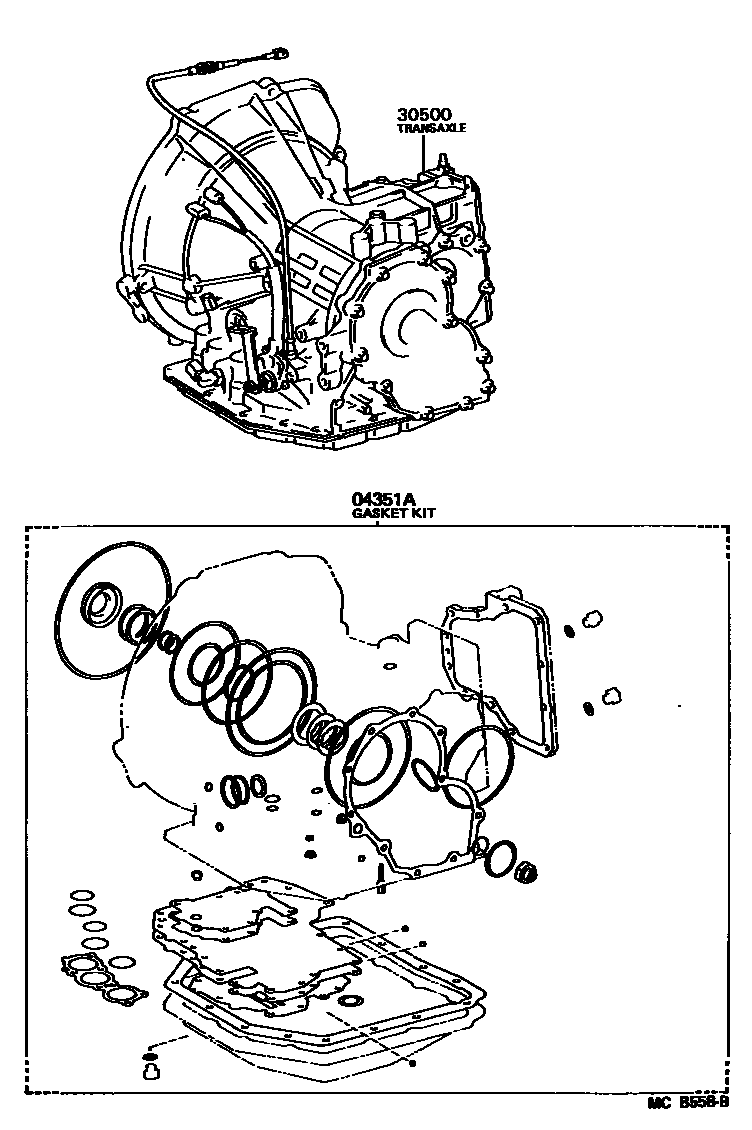

TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (ATM)

Parts diagram

04351AGASKET KIT, TRANSAXLE OVERHAUL(ATM)

main04351-10020i198410-198505

main04351-10030i198505-198912

30500TRANSAXLE ASSY, AUTOMATIC

main30500-10020i198410-198704

main30500-10021i198704-198912

2 parts on this diagram · 1 diagram in section
