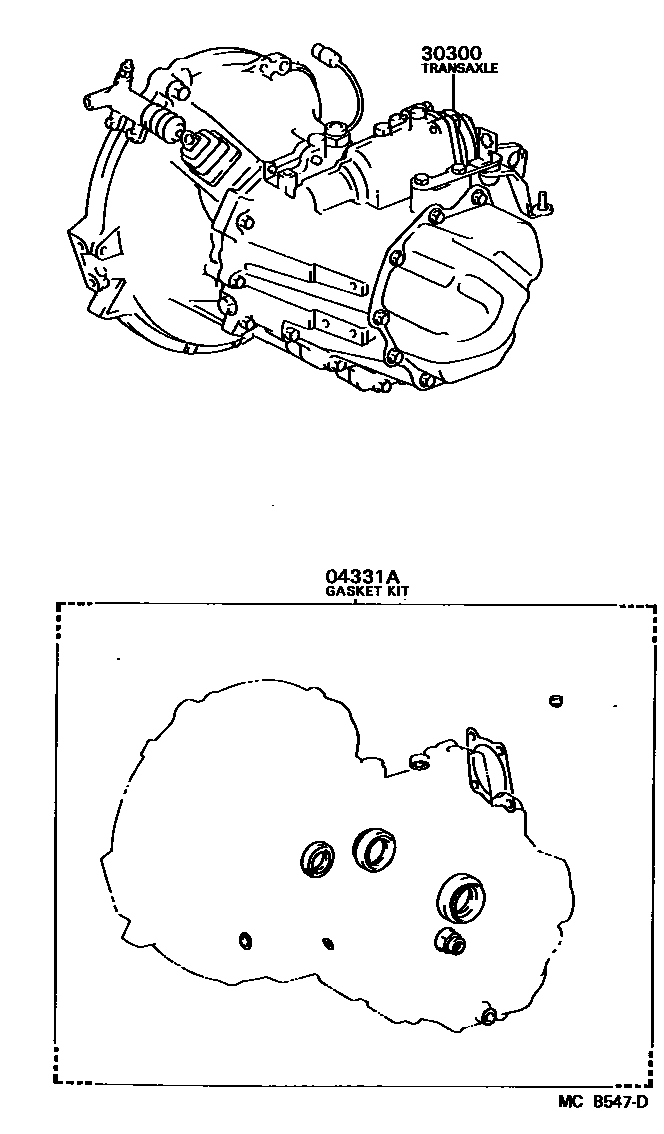

TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (MTM)

04331AGASKET KIT, TRANSAXLE OVERHAUL(MTM)

main04331-12080iEP7#..MTM198410-198912

30300TRANSAXLE ASSY, MANUAL

main30300-10030iEP70..4F198410-198412

*AXC=-572,*FGR=69:17

sub30300-10031

sub11355-10011

sub91611-61025

main30300-10040iEP70..4F198410-198912

*AXC=-642,*FGR=69:16

sub30300-10041

sub11355-10011

sub91611-61025

main30300-10080iEP71,76..5F198410-198703

*AXC=-542,*FGR=69:17

sub30300-10081

sub11355-10011

sub91611-61025

main30300-10081iEP71,76..5F198703-198912

*AXC=-542,*FGR=69:17

main30300-10090iEP70..5F198410-198412

*AXC=-572,*FGR=69:17

sub30300-10091

sub11355-10011

sub91611-61025

main30300-10100iEP70..5F198410-198704

*AXC=-642,*FGR=69:17

sub30300-10101

sub11355-10011

sub91611-61025

main30300-10101iEP70..5F198704-198912

*AXC=-642,*FGR=69:17

main30300-10101iEP71..RHD..5F198711-198912

INDONESIASPEC

2 parts on this diagram · 1 diagram in section
