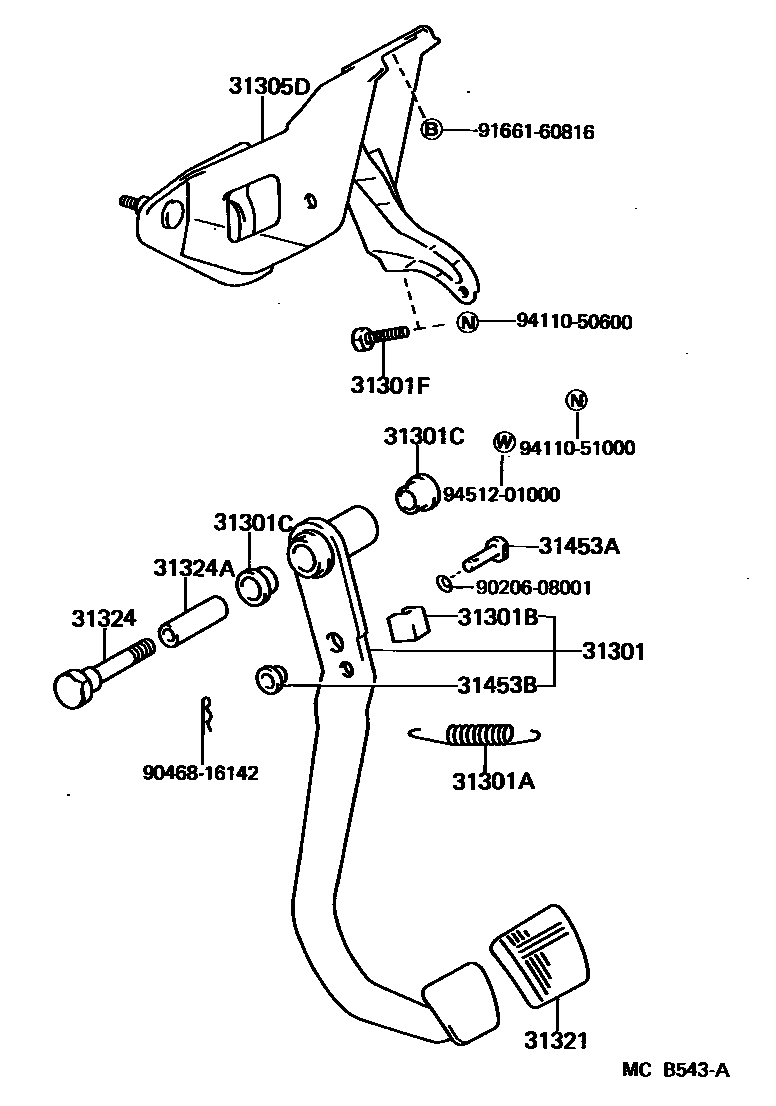

CLUTCH PEDAL & FLEXIBLE HOSE

0001 1 0002 1

31301PEDAL SUB-ASSY, CLUTCH

main31301-10160iEP7#..LHD..MTM198410-198912

main31301-10170iEP70,71..RHD..MTM198410-198912

31301ASPRING(FOR CLUTCH PEDAL)

main90507-14003iEP7#..MTM198410-198912

31301BCUSHION, NO.1(FOR CLUTCH PEDAL)

main47131-10010iEP70,71..RHD..MTM198410-198912

main47131-10020iEP7#..LHD..MTM198410-198912

31301CBUSH(FOR CLUTCH PEDAL)

main90386-13192×2iEP7#..MTM198410-198912

31301FBOLT(FOR CLUTCH PEDAL STOPPER)

main90101-06400iEP7#..MTM198410-198912

31305DSUPPORT SUB-ASSY, CLUTCH PEDAL

main55107-10030iEP70,71..RHD..MTM198410-198912

main55107-10040iEP7#..LHD..MTM198410-198912

31321PAD, CLUTCH PEDAL

main31321-14020iEP7#..MTM198410-198912

31324SHAFT, CLUTCH PEDAL

main90101-10015iEP7#..MTM198410-198912

31324ACOLLAR, CLUTCH PEDAL SHAFT

main90387-10003iEP7#..MTM198410-198912

31453APIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90240-08006iEP7#..MTM198410-198912

L=23.5

31453BBUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90386-08002iEP7#..MTM198410-198912

9020608001

main90206-08001

9046816142

main90468-16142

9166160816

main91661-60816

9411050600

main94110-50600

9411051000

main94110-51000

9451201000

main94512-01000

17 parts on this diagram · 2 diagrams in section
