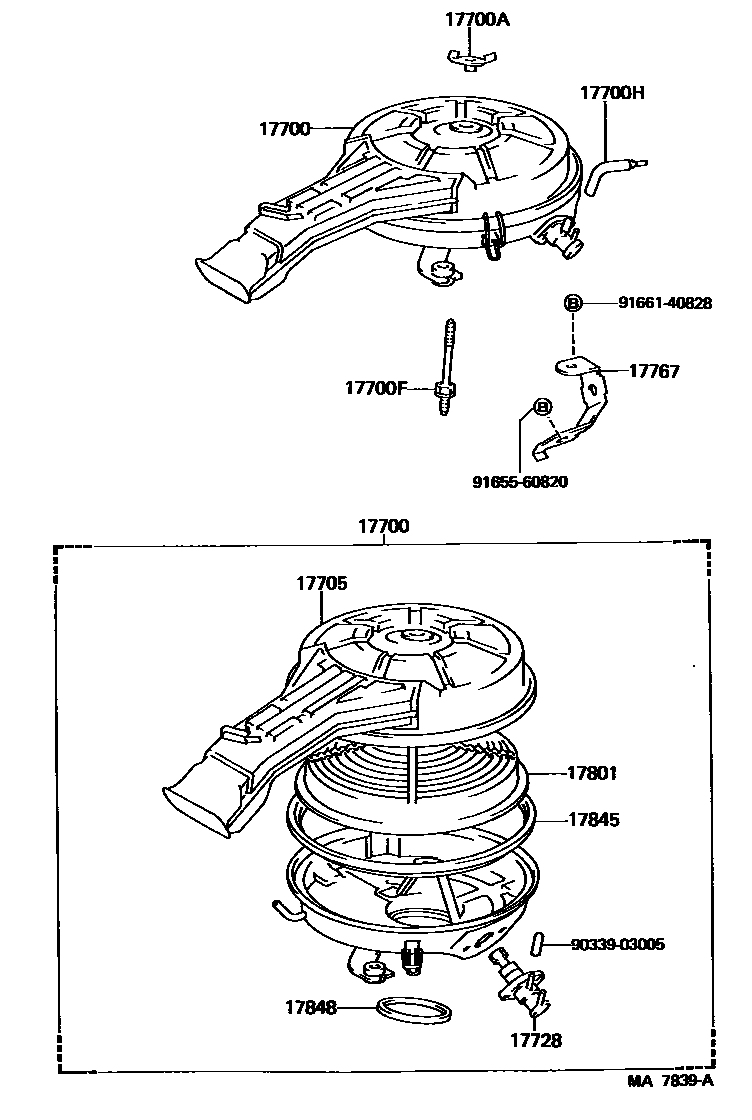

AIR CLEANER

0001 1 0002 1 0003 1

17700CLEANER ASSY, AIR

main17700-10080i1EL,2EL..EP7#198410-198912

W/HOT AIR INTAKE

main17700-10090i1EL,2EL..EP7#198410-198912

main17700-10100i1EL,2EL..EP7#198410-198912

W/PRE CLEANER

17700ANUT, WING(FOR AIR CLEANER)

main90175-06009i1EL,2EL..EP7#198410-198912

17700FBOLT, STUD(FOR AIR CLEANER SETTING)

main90116-06142i1EL,2EL..EP7#198410-198912

17700HHOSE, AIR

main17341-10010i1EL,2EL..EP7#198410-198912

17705CAP SUB-ASSY, AIR CLEANER

main17705-10060i1EL,2EL..EP7#198410-198912

W/HOT AIR INTAKE

main17705-10070i1EL,2EL..EP7#198410-198912

main17705-10080i1EL,2EL..EP70,71..LHD..MTM198410-198612

MIDDLE EAST SPEC

17728VALVE, THERMOSTATIC

main17728-10010i1EL,2EL..EP7#198410-198912

main17728-11090i1EL,2EL..EP7#198912-198912

17767BRACKET, AIR CLEANER

main17771-11020i1EL,2EL..EP7#198410-198912

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-10030i1EL,2EL..EP7#198410-198912

17845GASKET, AIR CLEANER CAP

main17845-10020i1EL,2EL..EP7#198410-198912

17848GASKET, AIR CLEANER TO CARBURETOR

main17848-10020i1EL,2EL..EP7#198410-198609

main17848-10021i1EL,2EL..EP7#198609-198912

9033903005

main90339-03005

9165560820

main91655-60820

9166140828

main91661-40828

13 parts on this diagram · 3 diagrams in section
