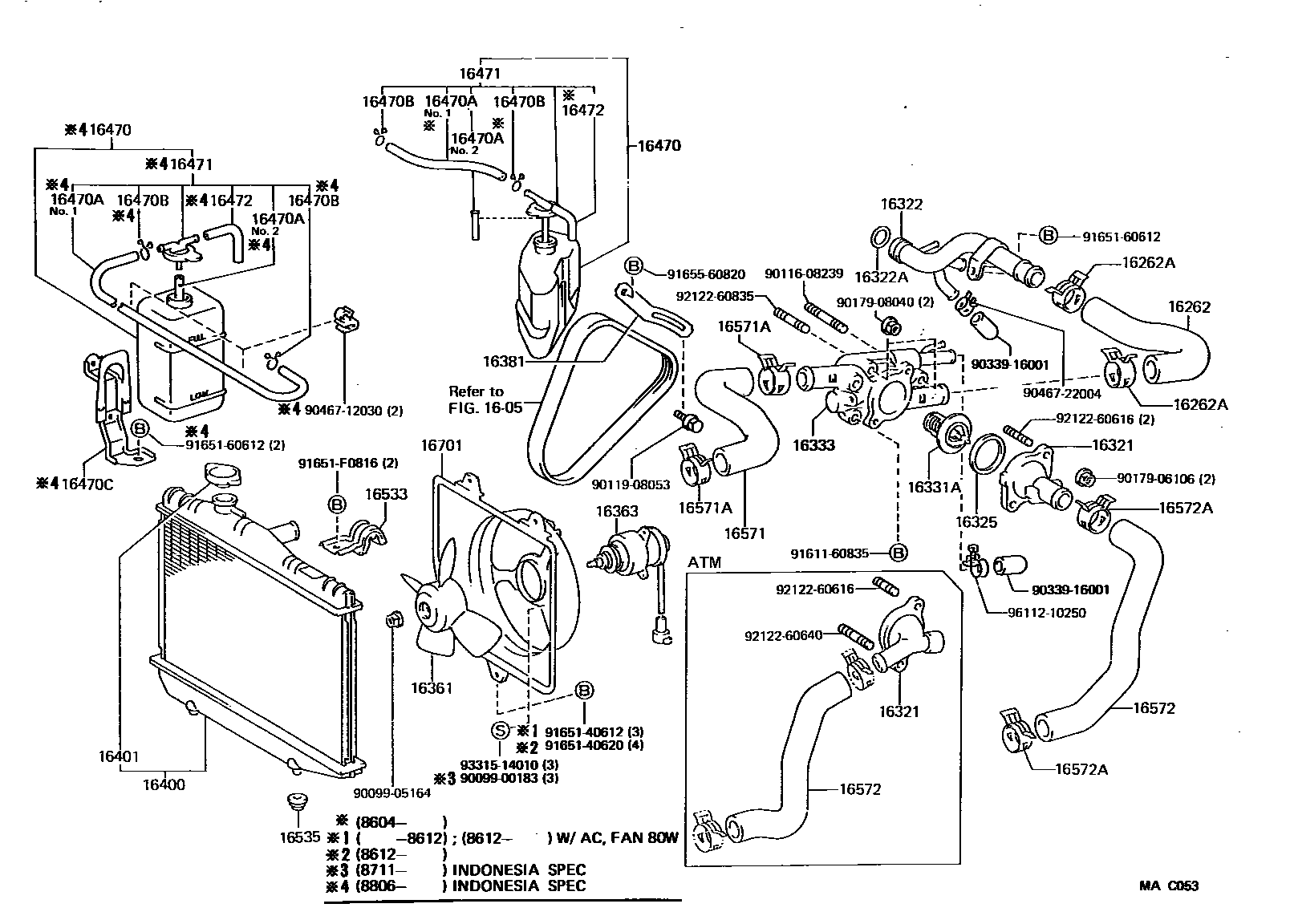

RADIATOR & WATER OUTLET

0001 1 0002 1

1605

16262HOSE, WATER INLET

main16262-10010i1EL,2EL..EP7#..MTM198410-198912

sub16262-10011

main16262-10020i2EL..EP71..3FC198410-198912

sub16262-10022

16262ACLIP(FOR WATER INLET HOSE)

main90467-34002i1EL,2EL..EP7#198410-198601

sub90467-34003

main90467-34003i1EL,2EL..EP7#198601-198912

sub90467-34004

16321INLET, WATER

main16321-10010i1EL,2EL..EP7#..MTM198410-198503

sub16321-10011

main16321-10011i1EL,2EL..EP7#..MTM198503-198912

main16321-11010i2EL..EP71..3FC198410-198503

sub16321-11011

main16321-11011i2EL..EP71..3FC198503-198912

16322PIPE, WATER INLET

main16322-10010i1EL,2EL..EP7#198410-198912

16322ARING, O(FOR WATER INLET)

main96711-35028i1EL,2EL..EP7#198410-198912

sub96761-35028

16325GASKET, WATER INLET HOUSING, NO.1

main16325-63010i1EL,2EL..EP7#198410-198912

sub16325-63011

16331ATHERMOSTAT

main90916-03046i1EL,2EL..EP7#198410-198912

*WAX 82-95,FUJI

16333HOUSING, WATER OUTLET

main16303-10010i1EL,2EL..EP7#198410-198509

sub16303-10011

main16303-10011i1EL,2EL..EP7#198509-198912

sub16333-10011

16361FAN

main16361-63040i1EL,2EL..EP7#198410-198912

main16361-64010i1EL..EP70..LHD..4F198410-198612

MIDDLE EAST SPEC

main16361-64010i2EL..EP71..3FC198410-198912

W/COOLER

main16361-64010i1EL,2EL..EP70,71..LHD..MTM198612-198912

FAN MOTOR 80W

main16361-64010i2EL..EP71..RHD..5D..5F198711-198912

INDONESIA SPEC

16363MOTOR, COOLING FAN

main16363-10010i1EL,2EL..EP7#198410-198912

main16363-16010i1EL..EP70..LHD..4F198410-198612

MIDDLE EAST SPEC

main16363-16010i2EL..EP71..3FC198410-198912

W/COOLER

main16363-16010i1EL,2EL..EP70,71..LHD..MTM198612-198912

FAN MOTOR 80W

main16363-16010i2EL..EP71..RHD..5D..5F198711-198912

INDONESIA SPEC

16381BAR, FAN BELT ADJUSTING

main16381-10040i1EL,2EL..EP7#198410-198604

main16381-11020i1EL,2EL..EP7#198604-198912

sub16381-11021

16400RADIATOR ASSY

main16400-10010i1EL,2EL..EP7#..MTM198410-198506

W/COOLER

sub16400-10011

main16400-10011i1EL,2EL..EP7#..MTM198506-198912

W/COOLER

main16400-10011i1EL,2EL..EP7#..MTM198612-198912

FIN PITCH 3.0

main16400-10020i1EL,2EL..EP7#..MTM198410-198612

sub16400-10021

main16400-10021i1EL,2EL..EP7#..MTM198612-198912

sub16400-10031

main16400-10030i1EL,2EL..EP70,71..LHD..MTM198410-198612

MIDDLE EAST SPEC

sub16400-10031

main16400-10031i2EL..EP71..RHD..5D..5F198711-198912

INDONESIA SPEC

main16400-10031i1EL,2EL..EP70,71..LHD..MTM198612-198912

FAN MOTOR 80W

main16400-11060i2EL..EP71..3FC198410-198912

sub16400-11070

16401CAP SUB-ASSY, RADIATOR

main16401-63010i1EL,2EL..EP7#198410-198912

16470TANK ASSY, RADIATOR RESERVE

main16470-10020i1EL,2EL..EP7#198410-198912

sub16470-11010

main16470-10030i2EL..EP71..RHD..5D..5F198806-198912

INDONESIA SPEC

16470AHOSE OR PIPE(FOR RADIATOR RESERVE TANK)

main85338-43020i1EL..EP70..RHD..5F198806-198912

*H,L=800,NO.1

main90445-12043i2EL..EP71..RHD..5D..5F198806-198912

L=1450(*H,L=165),NO.2

sub90445-12078

main90445-12078i1EL,2EL..EP7#198604-198912

L=2000(*H,L=140),NO.2

main90445-12078i1EL,2EL..EP7#198410-198912

L=1450(*H,L=240),NO.1

16470BCLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)

main90467-11085i1EL,2EL..EP7#198410-198912

16470CBRACKET(FOR RADIATOR RESERVE TANK)

main16611-10010i2EL..EP71..RHD..5D..5F198806-198912

INDONESIA SPEC

16471CAP SUB-ASSY, RESERVE TANK

main16405-10010i1EL,2EL..EP7#198410-198912

main16405-10020i2EL..EP71..RHD..5D..5F198806-198912

INDONESIA SPEC

16472HOSE, BREATHER

main85338-10020i1EL,2EL..EP7#198604-198609

sub85338-74040

main85338-70010i2EL..EP71..RHD..5D..5F198806-198912

INDONESIA SPEC

main85338-70100i1EL..EP70..RHD..5F198806-198912

INDONESIA SPEC

main85338-74040i1EL,2EL..EP7#198609-198912

16533SUPPORT, RADIATOR, UPPER

main16505-10010i1EL,2EL..EP7#198410-198912

16535SUPPORT, RADIATOR, LOWER

main90480-23008i1EL,2EL..EP7#198410-198912

16571HOSE, RADIATOR, INLET

main16571-10020i1EL,2EL..EP7#198410-198912

16571ACLAMP OR CLIP, HOSE(FOR RADIATOR INLET)

main90467-31001i1EL,2EL..EP7#198410-198912

sub90466-30001

16572HOSE, RADIATOR, OUTLET

main16572-10010i1EL,2EL..EP7#..MTM198410-198912

main16572-11030i2EL..EP71..3FC198410-198912

16572ACLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)

main90467-31001i1EL,2EL..EP7#198410-198612

sub90466-30001

main90467-31003i1EL,2EL..EP7#198612-198912

16701SHROUD SUB-ASSY, FAN

main16711-10030i1EL,2EL..EP7#198410-198912

main16711-11030i2EL..EP71..RHD..5D..5F198711-198912

INDONESIA SPEC

main16711-11030i1EL..EP70..LHD..4F198410-198612

MIDDLE EAST SPEC

main16711-11030i2EL..EP71..3FC198410-198912

W/COOLER

main16711-11030i1EL,2EL..EP70,71..LHD..MTM198612-198912

FAN MOTOR 80W

9009900183

main90099-00183

9009905164

main90099-05164

9011608239

main90116-08239

9011908053

main90119-08053

9017906106

main90179-06106

9017908040

main90179-08040

9033916001

main90339-16001

9046712030

main90467-12030

9046722004

main90467-22004

9161160835

main91611-60835

9165140612

main91651-40612

9165140620

main91651-40620

9165160612

main91651-60612

91651F0816

main91651-F0816

9165560820

main91655-60820

9212260616

main92122-60616

9212260640

main92122-60640

9212260835

main92122-60835

9331514010

main93315-14010

9611210250

main96112-10250

47 parts on this diagram · 2 diagrams in section
