Toyota STARLET — TIMING GEAR COVER & REAR END PLATE

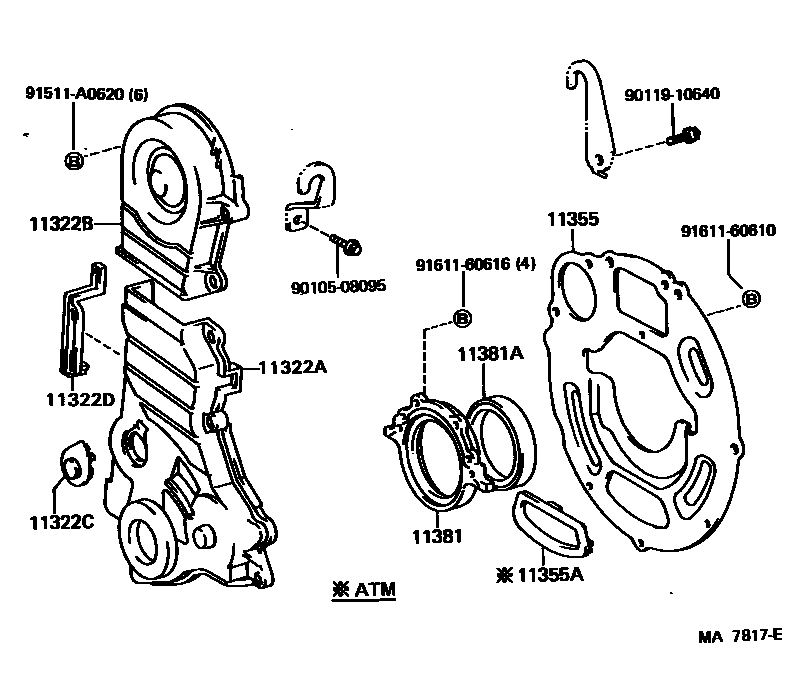

Parts diagram

11322ACOVER, TIMING BELT, NO.1

11322BCOVER, TIMING BELT, NO.2

11322CCOVER, TIMING BELT, NO.3

11322DGASKET, TIMING BELT COVER, NO.1

11355PLATE, REAR END

11355APLUG, HOLE(FOR REAR END PLATE)

11381RETAINER, ENGINE REAR OIL SEAL

11381ASEAL, ENGINE REAR OIL

9010508095

9011910640

91511A0620

9161160610

9161160616

13 parts on this diagram · 1 diagram in section

TIMING GEAR COVER & REAR END PLATE for Toyota STARLET

This section contains 13 genuine Toyota parts for the TIMING GEAR COVER & REAR END PLATE system of the Toyota STARLET. Key components include: COVER, TIMING BELT, NO.1, COVER, TIMING BELT, NO.2, COVER, TIMING BELT, NO.3, GASKET, TIMING BELT COVER, NO.1, PLATE, REAR END.
