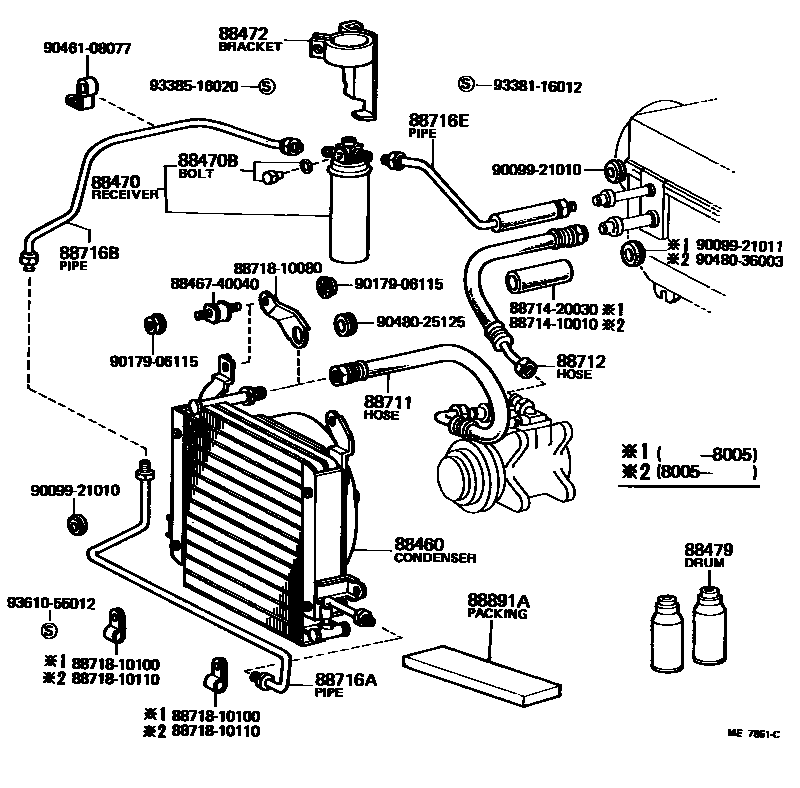

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1 0002 1 0003 1 0004 1 0005 1

88460CONDENSER ASSY, COOLER

main88460-10030iKP62..LHD..5F;KP62..LHD..4F..GEN;KP62..LHD..4F..EUG; KP62..RHD..GEN197810-197903

main88460-10031iKP62..LHD..5F;KP62..LHD..4F..GEN;KP62..LHD..4F..EUG; KP62..RHD..GEN197903-198005

main88460-10050iKP62..LHD..5F;KP62..4F..EUG;KP61..LHD..EUG;KP62..LHD..4F..GEN; KP62..RHD..GEN198005-198208

main88460-10080iKP60..SED..RHD..4F..GEN198205-198208

88470RECEIVER & DRYER ASSY, COOLER

main88470-12070iKP61..RHD..GEN;KP60..RHD..5D..DLX;KP60..SED..RHD..STD198208-198409

main88470-14010iKP62..LHD..5F;KP62..4F..EUG;KP61..LHD..EUG;KP62..LHD..4F..GEN198005-198208

main88470-95400iKP62..LHD..5F;KP62..LHD..4F..GEN;KP62..LHD..4F..EUG; KP62..RHD..GEN197810-197903

main88471-10010iKP62..LHD..5F;KP62..LHD..4F..GEN;KP62..LHD..4F..EUG; KP62..RHD..GEN197903-198005

88470BBOLT, FUSE

main90099-04579iKP62..LHD..5F;KP61..LHD..EUG;KP62..LHD..4F..GEN;KP62..LHD..4F..EUG; KP62..RHD..GEN197810-198208

88472BRACKET, RECEIVER TANK, NO.1

main88472-10070iKP62..RHD..GEN197810-198005

main88472-10080iKP62..LHD..5F;KP62..LHD..4F..GEN;KP62..LHD..4F..EUG197810-198005

main88472-10090iKP62..LHD..5F;KP62..4F..EUG;KP61..LHD..EUG;KP62..LHD..4F..GEN198005-198208

main88472-10100iKP62..RHD..GEN198005-198208

main88472-10110iKP61..LHD..5D..EUG; KP61..LHD..GEN198208-198409

main88472-10120iKP61..RHD..GEN;KP60..RHD..5D..DLX;KP60..SED..RHD..STD198208-198409

88479FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT)

main88434-30010×2iKP61..LHD..5D..EUG; KP61..LHD..GEN198208-198409

main90986-02001×2iKP62..LHD..5F;KP62..LHD..4F..GEN;KP62..LHD..4F..EUG; KP62..RHD..GEN197810-198005

400G

88711HOSE, COOLER REFRIGERANT DISCHARGE, NO.1

main88711-10030iKP62..LHD..5F;KP62..LHD..4F..GEN;KP62..LHD..4F..EUG; KP62..RHD..GEN197810-198005

main88711-10040iKP62..LHD..5F;KP62..4F..EUG;KP61..LHD..EUG;KP62..LHD..4F..GEN; KP62..RHD..GEN198005-198208

main88711-10070iKP61..RHD..GEN;KP60..RHD..5D..DLX;KP60..SED..RHD..STD198208-198409

88712HOSE, COOLER REFRIGERANT SUCTION, NO.1

main88712-10020iKP62..LHD..5F;KP62..LHD..4F..GEN;KP62..LHD..4F..EUG197810-198005

main88712-10030iKP62..RHD..GEN197810-198005

main88712-10050iKP61..LHD..5D..EUG; KP61..LHD..GEN198208-198409

main88712-10060iKP61..RHD..GEN;KP60..RHD..5D..DLX;KP60..SED..RHD..STD198208-198409

88716APIPE, COOLER REFRIGERANT LIQUID, A

main88716-10140iKP62..RHD..GEN197810-198005

main88716-10160iKP62..LHD..5F;KP62..LHD..4F..GEN;KP62..LHD..4F..EUG197810-198005

main88716-10210iKP62..LHD..5F;KP62..4F..EUG;KP61..LHD..EUG;KP62..LHD..4F..GEN198005-198208

main88716-10240iKP62..RHD..GEN198005-198208

main88716-10290iKP61..LHD..5D..EUG; KP61..LHD..GEN198208-198409

main88716-10330iKP61..RHD..GEN;KP60..RHD..5D..DLX;KP60..SED..RHD..STD198208-198409

88716BPIPE, COOLER REFRIGERANT LIQUID, B

main88716-10120iKP62..RHD..GEN197810-198005

main88716-10170iKP62..LHD..5F;KP62..LHD..4F..GEN;KP62..LHD..4F..EUG197810-198005

main88716-10220iKP62..LHD..5F;KP62..4F..EUG;KP61..LHD..EUG;KP62..LHD..4F..GEN198005-198208

main88716-10250iKP62..RHD..GEN198005-198208

main88716-10300iKP61..LHD..5D..EUG; KP61..LHD..GEN198208-198409

main88716-10340iKP61..RHD..GEN;KP60..RHD..5D..DLX;KP60..SED..RHD..STD198208-198409

88716EPIPE, COOLER REFRIGERANT LIQUID, E

main88716-10130iKP62..RHD..GEN197810-198005

main88716-10180iKP62..LHD..5F;KP62..LHD..4F..GEN;KP62..LHD..4F..EUG197810-198005

main88716-10200iKP62..LHD..5F;KP62..4F..EUG;KP61..LHD..EUG;KP62..LHD..4F..GEN198005-198208

main88716-10260iKP62..RHD..GEN198005-198208

main88716-10280iKP61..LHD..5D..EUG; KP61..LHD..GEN198208-198409

main88716-10350iKP61..RHD..GEN;KP60..RHD..5D..DLX;KP60..SED..RHD..STD198208-198409

88891APACKING A (FOR COOLER)

main88578-10030iKP62..LHD..5F;KP62..4F..EUG;KP61..LHD..EUG;KP62..LHD..4F..GEN; KP62..RHD..GEN198005-198208

L=80

main88578-10040×2iKP62..LHD..5F;KP62..4F..EUG;KP61..LHD..EUG;KP62..LHD..4F..GEN; KP62..RHD..GEN198005-198208

L=160

main88578-10050×2iKP62..LHD..5F;KP62..4F..EUG;KP61..LHD..EUG;KP62..LHD..4F..GEN; KP62..RHD..GEN198005-198208

L=230

main88578-10060iKP61..LHD..5D..EUG; KP61..LHD..GEN; KP61..RHD..GEN;KP60..RHD..5D..DLX;KP60..SED..RHD..STD198208-198409

L=300

main88578-10070iKP61..LHD..5D..EUG; KP61..LHD..GEN; KP61..RHD..GEN;KP60..RHD..5D..DLX;KP60..SED..RHD..STD198208-198409

L=270

8846740040CUSHION, COOLER CONDENSER, NO.1

main88467-40040

8871410010HOSE, COOLER REFRIGERANT LIQUID, NO.1

main88714-10010

8871420030HOSE, COOLER REFRIGERANT LIQUID, NO.1

main88714-20030

8871810080PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-10080

8871810100PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-10100

8871810110PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-10110

9009921010

main90099-21010

9009921011

main90099-21011

9017906115

main90179-06115

9046108077

main90461-08077

9048025125

main90480-25125

9048036003

main90480-36003

9338116012

main93381-16012

9338516020

main93385-16020

9361055012

main93610-55012

26 parts on this diagram · 5 diagrams in section
