HEADLAMP CLEANER

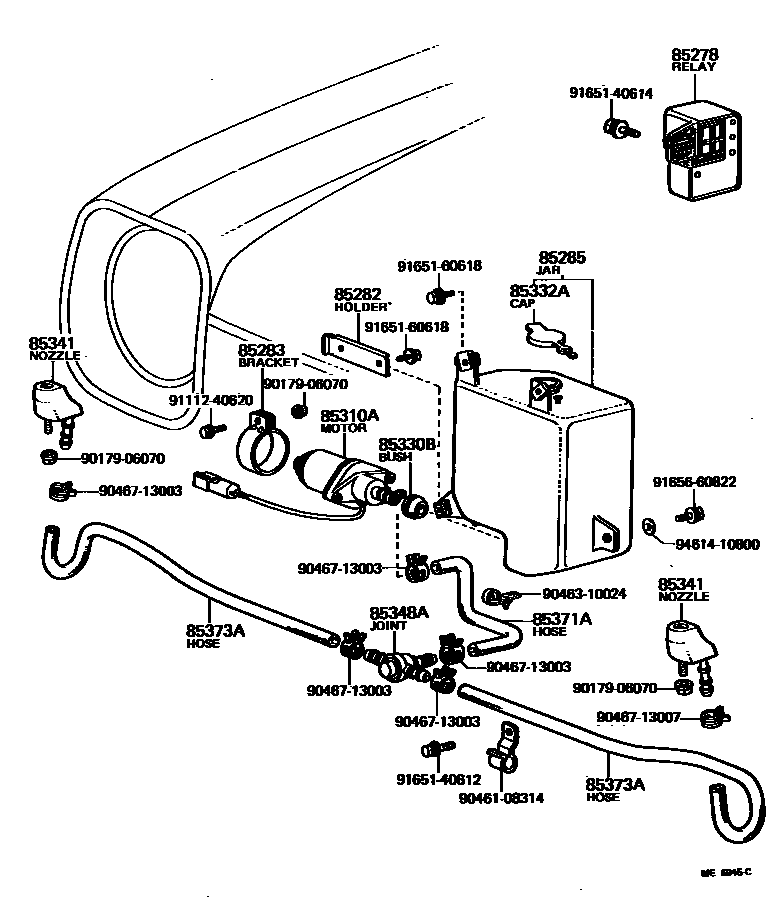

Parts diagram

85278RELAY ASSY, HEADLAMP CLEANER CONTROL

main85276-14010i197802-198005

85282HOLDER ASSY, HEADLAMP CLEANER WASHER JAR

main85361-10080i197802-198005

main85361-10081i198005-198208

85283BRACKET, HEADLAMP CLEANER WASHER

main85361-10070i197802-198005

85285JAR, HEADLAMP CLEANER WASHER

main85330-10131i197802-198005

main85330-10132i198005-198208

main85330-16050i198208-198409

85310AMOTOR AND PUMP ASSY, HEADLAMP CLEANER WASHER

main85310-10090i197802-198005

main85310-16010i198208-198409

85330BBUSH, HEADLAMP CLEANER WASHER JAR

main85336-10010i197802-198005

85332ACAP, HEADLAMP CLEANER WASHER JAR

main85332-10010i197802-198005

85341NOZZLE, HEADLAMP CLEANER WASHER

main85035-10130i197802-198005

RH

main85035-10131×2i198005-198208

main85035-10160×2i198208-198409

main85045-10010i197802-198005

LH

85348AJOINT, HEADLAMP CLEANER HOSE, NO.1

main85031-12010i197802-198005

85371AHOSE, HEADLAMP CLEANER(FROM MOTOR TO JOINT)

main85343-10020i198005-198208

85373AHOSE, HEADLAMP CLEANER WASHER (FROM JOINT TO NOZZLE)

main85343-10010i197802-198005

L=150,RH

main85343-10011i198005-198208

L=640(*H,L=550)

main85343-10070i197802-198005

LH

main85375-10150i198208-198409

RH

main85376-10150i198208-198409

*H,L=750,LH

9017906070

main90179-06070

9046108314

main90461-08314

9046310024

main90463-10024

9046713003

main90467-13003

9046713007

main90467-13007

9111240620

main91112-40620

9165140612

main91651-40612

9165140614

main91651-40614

9165160618

main91651-60618

9165660822

main91656-60822

9461410800

main94614-10800

22 parts on this diagram · 2 diagrams in section
