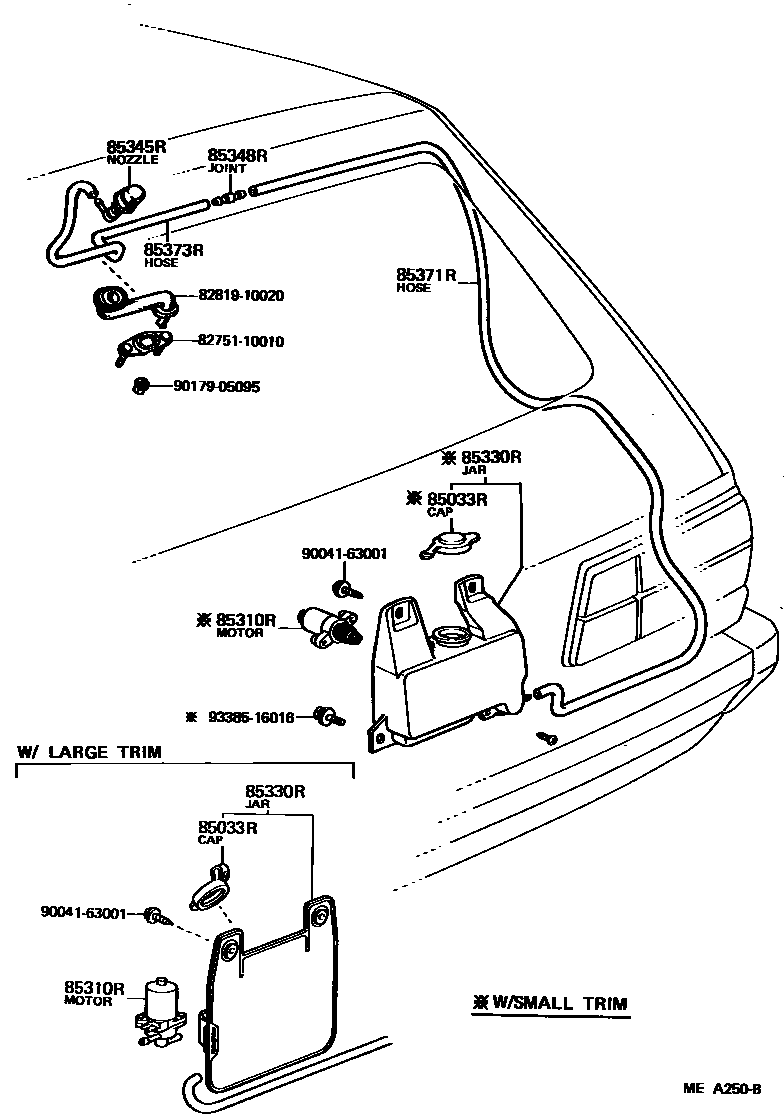

REAR WASHER

0001 1 0002 1 0003 1

85033RCAP ASSY, REAR WASHER

main85033-22010iKP6#..4D197810-198005

main85332-10020iKP62..SDN198005-198108

W/SMALL TRIM

main85332-10080iKP6#..SED197802-198005

main85332-20050iKP6#..4D; KP6#..SED198005-198208

W/LARGE TRIM

85310RMOTOR ASSY, REAR WASHER

main85310-10070iKP6#..SED197802-198005

main85310-10120iKP62..SDN198005-198108

W/SMALL TRIM

main85310-20100iKP6#..SED198005-198208

W/LARGE TRIM

85330RJAR ASSY, REAR WASHER

main85330-10100iKP6#..SED197802-198005

main85330-10101iKP6#..SED198005-198208

W/LARGE TRIM

main85330-10150iKP62..SDN198005-198108

W/SMALL TRIM

main85330-96440iKP6#..4D197810-198005

main85330-96441iKP6#..4D198005-198208

85345RNOZZLE, REAR WASHER

main85035-10140iKP6#..SED..EUR198208-198409

main85035-10150iKP6#..SED..GEN198208-198409

main85035-12110iKP6#..4D197905-198208

main85035-23030iKP6#..4D198208-198409

main85035-91255iKP6#..4D197810-197905

85348RJOINT, REAR WASHER HOSE, NO.1

main85355-10060iKP6#..SED197802-198208

main85355-87201×2iKP6#..4D197810-198208

85371RHOSE, REAR WASHER (FROM MOTOR TO JOINT)

main90446-06006iKP6#..4D197810-198005

L=2000,*H,L=1400

main90446-06013iKP6#198208-198409

L=1000(*H,L=150)

main90446-06015iKP6#..SED198005-198208

85373RHOSE, REAR WASHER (FROM JOINT TO NOZZLE)

main90099-33299iKP6#..SED198111-198208

L=1000

main90446-06013iKP6#..SED197802-198111

L=1000(*H,L=360)

8275110010BLOCK, DRIVER SIDE RELAY

main82751-10010

8281910020GROMMET, WIRING HARNESS

main82819-10020

9004163001

main90041-63001

9017905095

main90179-05095

9338516016

main93385-16016

12 parts on this diagram · 3 diagrams in section
