Toyota 121220 — WINDSHIELD WIPER

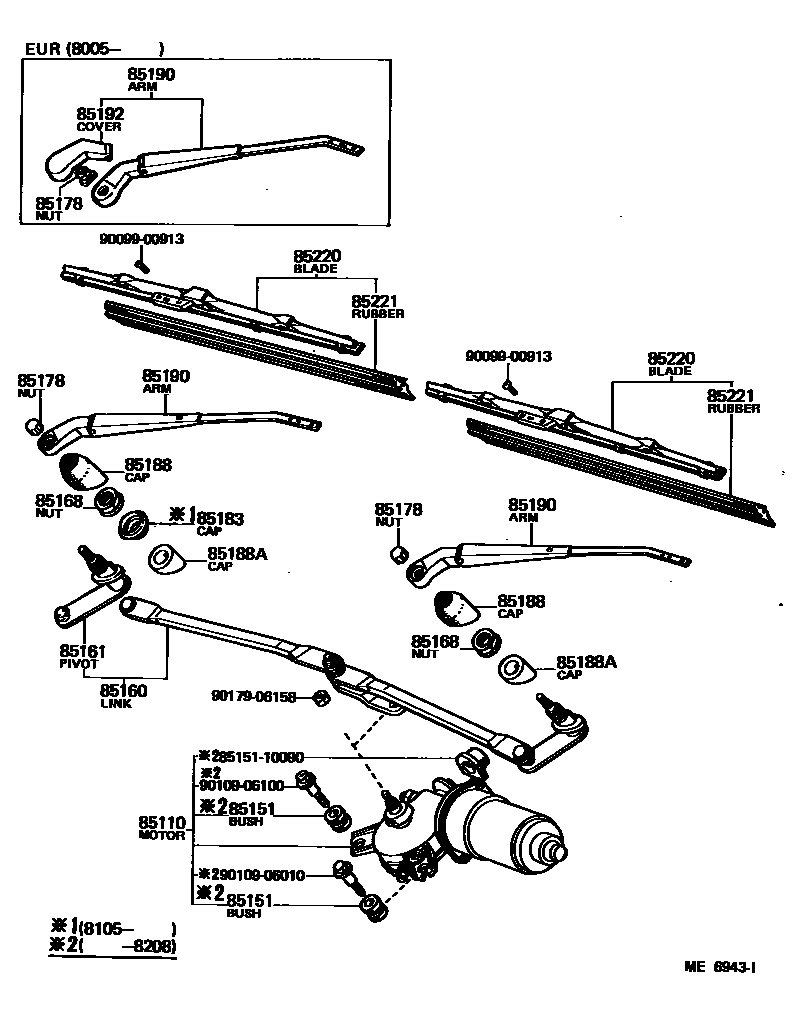

Parts diagram

85110MOTOR ASSY, WINDSHIELD WIPER

85151BUSH, WINDSHIELD WIPER MOTOR GEAR HOUSING COVER

85160LINK ASSY, WINDSHIELD WIPER

85161PIVOT, WINDSHIELD WIPER LINK, NO.1

85168NUT, WINDSHIELD WIPER LINK PIVOT

85178NUT (FOR FRONT WIPER ARM SETTING)

85183CAP OR ROD, WINDSHIELD WIPER SHIELD

85188CAP, WINDSHIELD WIPER PIVOT, NO.1

85188ACAP, WINDSHIELD WIPER PIVOT, NO.2

85190ARM ASSY, WINDSHIELD WIPER

85192COVER, WINDSHIELD WIPER ARM

85220BLADE ASSY, WINDSHIELD WIPER

85221BLADE, WINDSHIELD WIPER

8515110090BUSH, WINDSHIELD WIPER MOTOR GEAR HOUSING COVER

9009900913

9010906010

9010906100

9017906158

18 parts on this diagram · 2 diagrams in section

WINDSHIELD WIPER for Toyota 121220

This section contains 18 genuine Toyota parts for the WINDSHIELD WIPER system of the Toyota 121220. Key components include: MOTOR ASSY, WINDSHIELD WIPER, BUSH, WINDSHIELD WIPER MOTOR GEAR HOUSING COVER, LINK ASSY, WINDSHIELD WIPER, PIVOT, WINDSHIELD WIPER LINK, NO.1, NUT, WINDSHIELD WIPER LINK PIVOT.
