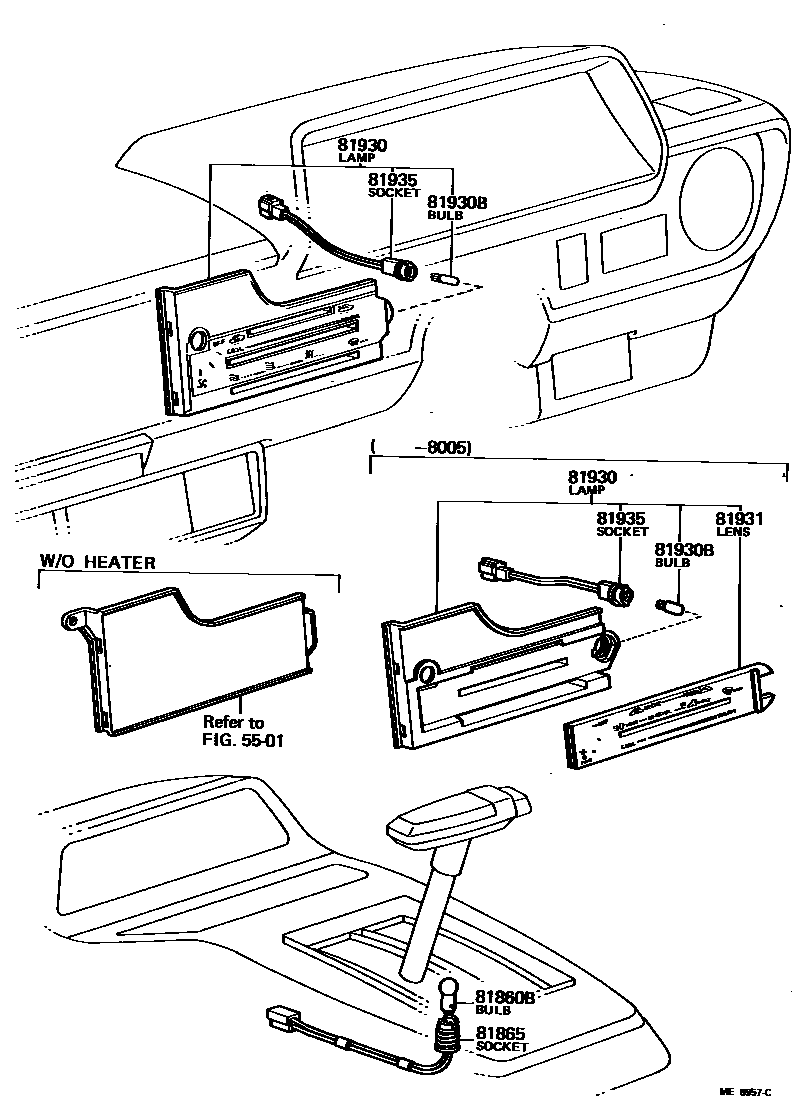

INDICATOR
5501
81860BBULB, TRANSMISSION INDICATOR LAMP
12V 1.7W
81865SOCKET AND WIRE, TRANSMISSION INDICATOR LAMP
81930LAMP ASSY, HEATER CONTROL INDICATOR, NO.1
BLACK,BLACK,TRIM2#
BLUE,BLUE,TRIM8#
BEIGE,BEIGE,TRIM4#
BLACK,BLACK,TRIM2#
BLUE,BLUE,TRIM8#
BEIGE,BEIGE,TRIM4#
BLACK,W/*BV,BLACK,TRIM2#
BLUE,W/*BV,BLUE,TRIM8#
BEIGE,W/*BV,BEIGE,TRIM4#
main81930-10101-01iKP60..LHD;KP62..LHD..5F;KP62..4F..EUG;KP61..LHD..EUG;KP62..LHD..4F..GEN198005-198208
BLACK,W/*BV,BLACK,TRIM2#
sub81930-10101
main81930-10101-04iKP60..LHD;KP62..LHD..5F;KP62..4F..EUG;KP61..LHD..EUG;KP62..LHD..4F..GEN198005-198208
BLUE,W/*BV,BLUE,TRIM8#
sub81930-10101
main81930-10101-06iKP60..LHD;KP62..LHD..5F;KP62..4F..EUG;KP61..LHD..EUG;KP62..LHD..4F..GEN198005-198208
LIGHT BROWN,W/*BV,BROWN,TRIM4#
sub81930-10101
LIGHT BROWN,W/*BV & *TAC,BROWN,TRIM4#
sub81930-10150
main81930-10160-01iKP62..LHD..5F;KP60..SED..LHD;KP62..SED..4F..EUG;KP61..SED..LHD..EUG;KP62..SED..LHD..4F..GEN198005-198208
BLACK,W/*BV & *TAC,ALUMI,BLACK,TRIM2#
sub81930-10160
main81930-10160-04iKP62..LHD..5F;KP60..SED..LHD;KP62..SED..4F..EUG;KP61..SED..LHD..EUG;KP62..SED..LHD..4F..GEN198005-198208
BLUE,W/*BV & *TAC,ALUMI,BLUE,TRIM8#
sub81930-10160
main81930-10160-06iKP62..LHD..5F;KP60..SED..LHD;KP62..SED..4F..EUG;KP61..SED..LHD..EUG;KP62..SED..LHD..4F..GEN198005-198208
LIGHT BROWN,W/*BV & *TAC,ALUMI,BROWN,TRIM4#
sub81930-10160
81930BBULB, HEATER CONTROL INDICATOR LAMP
12V 1.4W
12V 1.2W W/O SOCKET,12V 1.4W
81931LENS, HEATER CONTROL INDICATOR
W/HEATER
W/*BV
W/HEATER
W/HEATER
W/BOOST VENTILATOR
W/BOOST VENTILATOR
81935SOCKET AND WIRE, HEATER CONTROL INDICATOR LAMP
W/*BV
W/HEATER
7 parts on this diagram · 2 diagrams in section
