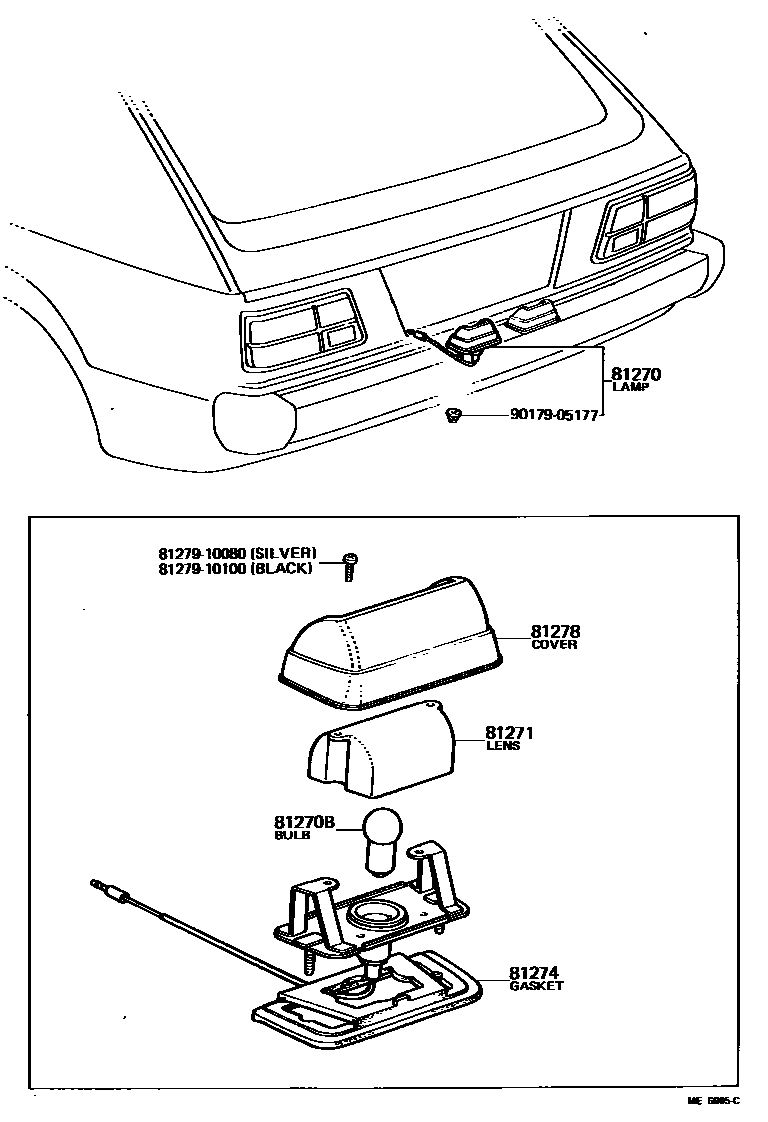

REAR LICENSE PLATE LAMP

0001 1 0002 1 0003 1 0004 1

81270LAMP ASSY, LICENSE PLATE

main81270-19426×2iKP6#..SED198005-198208

BLACK,W/LARGE BUMPER

main81270-19435×2iKP6#..SED197802-198005

main81270-19445×2iKP6#..SED197802-198005

BLACK

main81270-19515×2iKP6#..4D197810-198409

main81270-29545×2iKP60..SED;KP62..LHD..5F;KP62..SED..RHD;KP61..SED..EUG;KP62..SED..4F..EUG;KP62..SED..LHD..4F..GEN198005-198208

main81270-80001×2iKP6#..SED198208-198409

81270BBULB (FOR LICENSE PLATE LAMP)

main90981-12008iKP6#..4D197810-198409

12V 4W

main99132-11050×2iKP6#..SED197802-198005

12V 5W,12V 5W

main99132-12050×2iKP6#..SED198005-198409

12V 5W,12V 5W

81271LENS, LICENSE PLATE LAMP

main81271-10080×2iKP6#..SED197802-198005

main81271-22110×2iKP6#..SED198005-198409

main81271-89110iKP6#..4D197810-198409

81274GASKET, LICENSE PLATE LAMP BODY

main81272-10080×2iKP6#..SED197802-198005

main81274-10090×2iKP6#..SED198005-198208

BLACK,W/LARGE BUMPER

main81274-22110×2iKP6#..SED198208-198409

81278COVER, LICENSE PLATE LAMP

main81276-10080×2iKP6#..SED197802-198005

main81276-10100×2iKP6#..SED197802-198005

BLACK

main81276-10101×2iKP6#..SED198005-198409

main81277-11080×2iKP6#..4D197810-198409

8127910080WASHER, SIDE TURN SIGNAL LAMP

main81279-10080

8127910100WASHER, SIDE TURN SIGNAL LAMP

main81279-10100

9017905177

main90179-05177

8 parts on this diagram · 4 diagrams in section
