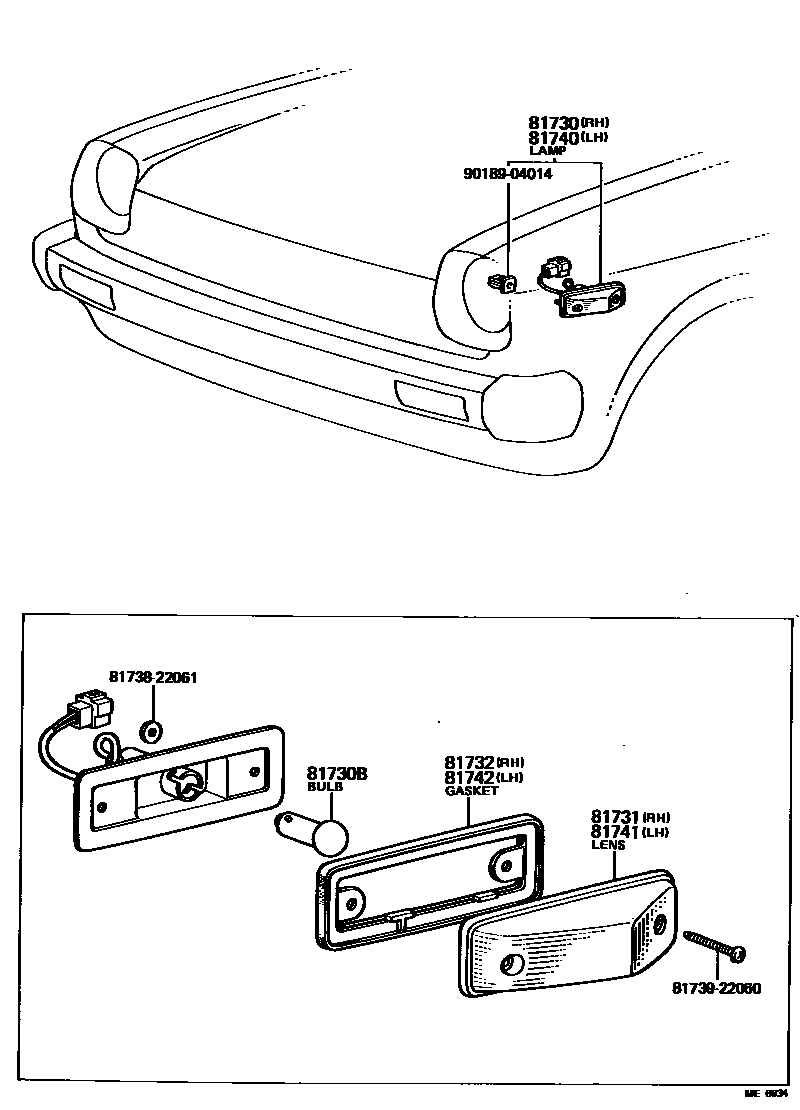

SIDE TURN SIGNAL LAMP & OUTER MIRROR LAMP

0001 1 0002 1

81730LAMP ASSY, SIDE TURN SIGNAL, RH

main81730-19295iKP6#197802-198208

main81730-19326iKP6#198208-198409

81730BBULB (FOR SIDE TURN SIGNAL LAMP)

main99132-11050×2iKP6#197802-198409

12V 5W,12V 5W

81731LENS, SIDE TURN SIGNAL LAMP, RH

main81731-12161iKP6#198208-198409

main81731-14100iKP6#197802-198208

81732GASKET, SIDE TURN SIGNAL LAMP LENS, RH

main81732-14100iKP6#197802-198208

81740LAMP ASSY, SIDE TURN SIGNAL, LH

main81730-19326iKP6#198208-198409

main81740-19275iKP6#197802-198208

81741LENS, SIDE TURN SIGNAL LAMP, LH

main81731-12161iKP6#198208-198409

main81741-14100iKP6#197802-198208

81742GASKET, SIDE TURN SIGNAL LAMP LENS, LH

main81742-14100iKP6#197802-198208

8173822061

main81738-22061

8173922060

main81739-22060

9018904014

main90189-04014

10 parts on this diagram · 2 diagrams in section
