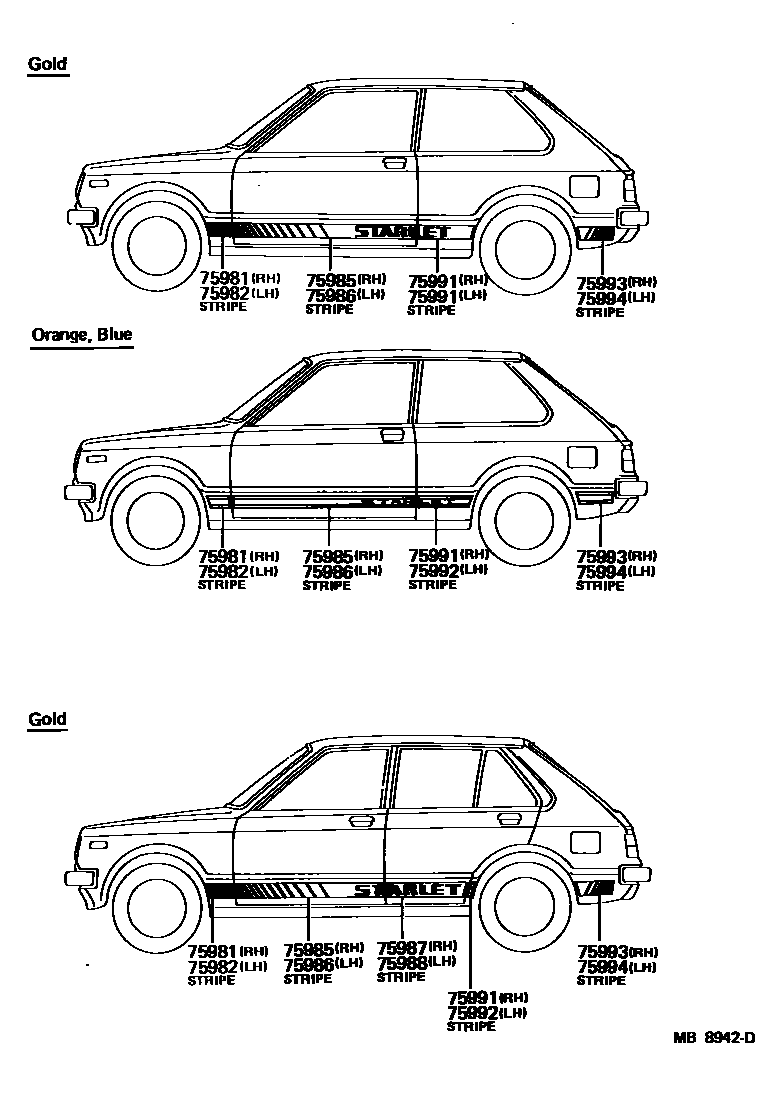

BODY STRIPE

0001 1 0002 1

75981STRIPE, FRONT FENDER, RH NO.1

main75981-10050iKP60..RHD..3D..4F;KP60..LHD..3D..4F..EUG197907-198005

ORANGE

main75981-10070iKP60..RHD..3D..4F;KP60..LHD..3D..4F..EUG197907-198005

BLUE

main75981-10090iKP62..SED197903-198005

GOLD

main75981-10110iKP6#..SED198005-198208

75982STRIPE, FRONT FENDER, LH NO.1

main75982-10030iKP60..RHD..3D..4F;KP60..LHD..3D..4F..EUG197907-198005

ORANGE

main75982-10050iKP60..RHD..3D..4F;KP60..LHD..3D..4F..EUG197907-198005

BLUE

main75982-10070iKP62..SED197903-198005

GOLD

main75982-10090iKP6#..SED198005-198208

75985STRIPE, FRONT DOOR, RH

main75985-10020iKP60..RHD..3D..4F;KP60..LHD..3D..4F..EUG197907-198005

ORANGE

main75985-10040iKP60..RHD..3D..4F;KP60..LHD..3D..4F..EUG197907-198005

BLUE

main75985-10060iKP62..3D197903-198005

GOLD

main75985-10070iKP62..5D197903-198005

GOLD

main75985-10080iKP6#..3D198005-198010

main75985-10090iKP6#..5D198005-198010

main75985-10150iKP6#..3D198010-198208

main75985-10160iKP6#..5D198010-198208

75986STRIPE, FRONT DOOR, LH

main75986-10020iKP60..RHD..3D..4F;KP60..LHD..3D..4F..EUG197907-198005

ORANGE

main75986-10040iKP60..RHD..3D..4F;KP60..LHD..3D..4F..EUG197907-198005

BLUE

main75986-10060iKP62..3D197903-198005

GOLD

main75986-10070iKP62..5D197903-198005

GOLD

main75986-10080iKP6#..3D198005-198010

main75986-10090iKP6#..5D198005-198010

main75986-10150iKP6#..3D198010-198208

main75986-10160iKP6#..5D198010-198208

75987STRIPE, REAR DOOR, RH

main75987-10030iKP62..5D197903-198005

GOLD

main75987-10040iKP6#..5D198005-198208

75988STRIPE, REAR DOOR, LH

main75988-10030iKP62..5D197903-198005

GOLD

main75988-10040iKP6#..5D198005-198208

75991STRIPE, QUARTER, RH NO.1

main75991-10030iKP60..RHD..3D..4F;KP60..LHD..3D..4F..EUG197907-198005

BLUE

main75991-10050iKP60..RHD..3D..4F;KP60..LHD..3D..4F..EUG197907-198005

ORANGE

main75991-10070iKP60..RHD..3D..4F;KP60..LHD..3D..4F..EUG197907-198005

GOLD

main75991-10080iKP62..5D197903-198005

GOLD

main75991-10090iKP6#..3D198005-198208

main75993-10080iKP6#..5D198005-198208

75992STRIPE, QUARTER, LH NO.1

main75992-10030iKP60..RHD..3D..4F;KP60..LHD..3D..4F..EUG197907-198005

BLUE

main75992-10050iKP60..RHD..3D..4F;KP60..LHD..3D..4F..EUG197907-198005

ORANGE

main75992-10070iKP62..3D197903-198005

GOLD

main75992-10080iKP62..5D197903-198005

GOLD

main75992-10090iKP6#..3D198005-198208

main75994-10080iKP6#..5D198005-198208

75993STRIPE, QUARTER, RH NO.2

main75993-10030iKP60..RHD..3D..4F;KP60..LHD..3D..4F..EUG197907-198005

ORANGE

main75993-10040iKP60..RHD..3D..4F;KP60..LHD..3D..4F..EUG197907-198005

BLUE

main75993-10070iKP62..SED197903-198005

GOLD

main75993-10080iKP6#..3D198005-198208

75994STRIPE, QUARTER, LH NO.2

main75994-10030iKP60..RHD..3D..4F;KP60..LHD..3D..4F..EUG197907-198005

ORANGE

main75994-10040iKP60..RHD..3D..4F;KP60..LHD..3D..4F..EUG197907-198005

BLUE

main75994-10070iKP62..SED197903-198005

GOLD

main75994-10080iKP6#..3D198005-198208

10 parts on this diagram · 2 diagrams in section
