SEAT TRUCK

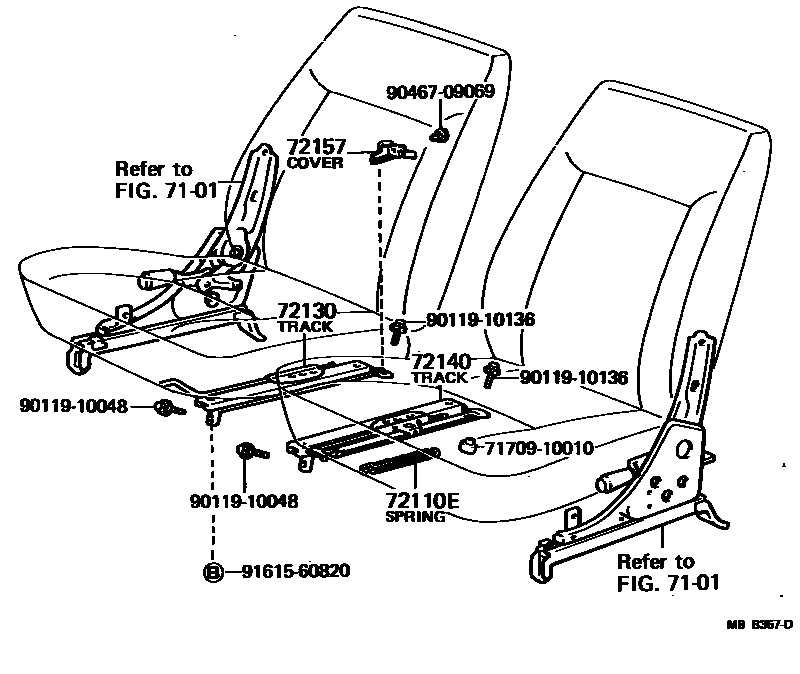

7101FRONT SEAT & SEAT TRACK

→ Go to FIG 71-01

72110ESPRING, TENSION, NO.1 (FOR SEAT TRACK)

main90506-18020iKP6#..3D197802-198402

W/WALK-IN TYPE

main90507-18009iKP6#..3D198402-198409

W/WALK-IN TYPE

72130TRACK ASSY, RH SEAT, INNER

main72130-10050iKP6#..LHD..3D197802-198005

W/WALK-IN TYPE

main72130-10051iKP6#..LHD..3D198005-198208

W/WALK-IN TYPE

main72130-10070iKP60;KP62..RHD;KP62..LHD..5F;KP62..LHD..4F..GEN;KP62..LHD..4F..EUG197802-198005

W/O WALK-IN TYPE

main72130-10071iKP60;KP61..EUG;KP62..RHD;KP62..LHD..5F;KP62..4F..EUG;KP62..LHD..4F..GEN198005-198208

W/O WALK-IN TYPE

main72130-10170iKP6#..4D,5D; KP6#..RHD..3D;KP60..LHD..3D..STD;KP6#..LHD..3D..DLX..GEN198208-198409

W/O WALK-IN TYPE

main72130-10180iKP6#..LHD..3D198208-198409

W/WALK-IN TYPE

72140TRACK ASSY, LH SEAT, INNER

main72140-10070iKP6#..RHD..3D197802-198005

W/WALK-IN TYPE

main72140-10071iKP6#..RHD..3D198005-198208

W/WALK-IN TYPE

main72140-10080iKP6#197802-198005

W/O WALK-IN TYPE

main72140-10081iKP6#198005-198208

W/O WALK-IN TYPE

main72140-10180iKP6#..3D..GEN;KP6#..LHD..3D..EUR; KP6#..4D,5D198208-198409

W/O WALK-IN TYPE

main72140-10190iKP6#..RHD..3D198208-198409

W/WALK-IN TYPE

72157COVER, SEAT TRACK BRACKET, INNER

main72157-10010iKP6#198012-198208

7170910010STRAP SUB-ASSY, 3RD SEATBACK

main71709-10010

9011910048

main90119-10048

9011910136

main90119-10136

9046709069

main90467-09069

9161560820

main91615-60820

10 parts on this diagram · 1 diagram in section
