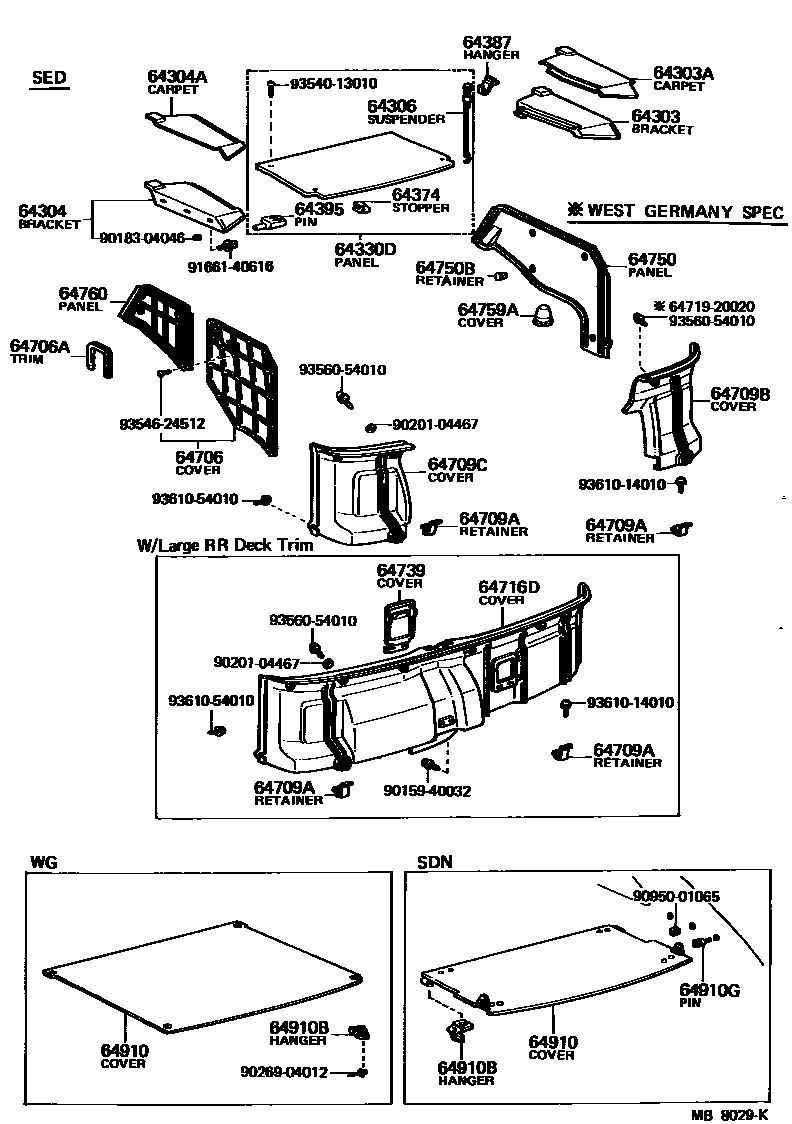

DECK BOARD & DECK TRIM COVER
64303BRACKET SUB-ASSY, PACKAGE TRAY, RH
main64301-10010-11iKP60..SED;KP62..LHD..5F;KP62..SED..RHD;KP62..SED..LHD..4F..GEN;KP62..SED..LHD..4F..EUG197802-197903
BLACK,BLACK,TRIM2#
main64301-10010-14iKP60..SED;KP62..LHD..5F;KP62..SED..RHD;KP62..SED..LHD..4F..GEN;KP62..SED..LHD..4F..EUG197802-197812
BLUE,BLUE,TRIM8#
main64301-10010-16iKP60..SED;KP62..LHD..5F;KP62..SED..RHD;KP62..SED..LHD..4F..GEN;KP62..SED..LHD..4F..EUG197802-197903
LIGHT BROWN,BROWN,TRIM4#
main64301-10020-01iKP60..SED;KP62..LHD..5F;KP62..SED..RHD;KP61..SED..EUG;KP62..SED..LHD..4F..GEN;KP62..SED..LHD..4F..EUG197903-198206
BLACK,BLACK,TRIM2#,8#
main64301-10020-06iKP60..SED;KP62..LHD..5F;KP62..SED..RHD;KP62..SED..LHD..4F..GEN;KP62..SED..LHD..4F..EUG197903-198005
LIGHT BROWN,BROWN,TRIM4#
main64301-10020-16iKP60..SED;KP62..LHD..5F;KP62..SED..RHD;KP61..SED..EUG;KP62..SED..4F..EUG;KP62..SED..LHD..4F..GEN198005-198206
LIGHT BROWN,BROWN,TRIM4#
BLACK,BLACK,TRIM2#,8#
LIGHT BROWN,BROWN,TRIM4#
*NZ,W/RR 3POINT SEAT BELT; W/RR 3POINT SEAT BELT
64303ACARPET, PACKAGE TRAY TRIM, RH
main64333-10010-01iKP60..SED;KP62..LHD..5F;KP62..SED..RHD;KP62..SED..LHD..4F..GEN;KP62..SED..LHD..4F..EUG197802-197903
BLACK,BLACK,TRIM2#
main64333-10010-04iKP60..SED;KP62..LHD..5F;KP62..SED..RHD;KP62..SED..LHD..4F..GEN;KP62..SED..LHD..4F..EUG197802-197903
BLUE,BLUE,TRIM8#
main64333-10010-06iKP60..SED;KP62..LHD..5F;KP62..SED..RHD;KP62..SED..LHD..4F..GEN;KP62..SED..LHD..4F..EUG197802-197903
LIGHT BROWN,BROWN,TRIM4#
main64333-10020-01iKP60..SED;KP62..LHD..5F;KP62..SED..RHD;KP61..SED..EUG;KP62..SED..LHD..4F..GEN;KP62..SED..LHD..4F..EUG197903-198208
BLACK,BLACK,TRIM2#
W/O RR 3POINT SEAT BELT,D-WINE,RED/MAROON,TRIM3#
W/O RR 3POINT SEAT BELT,GRAY,GRAY,TRIM1#
main64333-10020-04iKP60..SED;KP62..LHD..5F;KP62..SED..RHD;KP61..SED..EUG;KP62..SED..LHD..4F..GEN;KP62..SED..LHD..4F..EUG197903-198208
BLUE,BLUE,TRIM8#
main64333-10020-06iKP60..SED;KP62..LHD..5F;KP62..SED..RHD;KP62..SED..LHD..4F..GEN;KP62..SED..LHD..4F..EUG197903-198005
LIGHT BROWN,BROWN,TRIM4#
main64333-10020-16iKP60..SED;KP62..LHD..5F;KP62..SED..RHD;KP61..SED..EUG;KP62..SED..4F..EUG;KP62..SED..LHD..4F..GEN198005-198208
LIGHT BROWN,BROWN,TRIM4#
W/O RR 3POINT SEAT BELT,BROWN,BROWN,TRIM4#
*NZ,W/RR3POINT SEATBELT,D-WINE,RED/MAROON,TRIM3#; W/RR 3POINT SEAT BELT,D-WINE,RED/MAROON,TRIM3#
*NZ,W/RR 3POINT SEATBELT,GRAY,GRAY,TRIM1#; W/RR 3POINT SEAT BELT,GRAY,GRAY,TRIM1#
*NZ,W/RR 3POINT SEATBELT,BROWN,BROWN,TRIM4#; W/RR 3POINT SEAT BELT,BROWN,BROWN,TRIM4#
64304BRACKET SUB-ASSY, PACKAGE TRAY, LH
main64302-10010-11iKP60..SED;KP62..LHD..5F;KP62..SED..RHD;KP62..SED..LHD..4F..GEN;KP62..SED..LHD..4F..EUG197802-197903
BLACK,BLACK,TRIM2#
main64302-10010-14iKP60..SED;KP62..LHD..5F;KP62..SED..RHD;KP62..SED..LHD..4F..GEN;KP62..SED..LHD..4F..EUG197802-197812
BLUE,BLUE,TRIM8#
main64302-10010-16iKP60..SED;KP62..LHD..5F;KP62..SED..RHD;KP62..SED..LHD..4F..GEN;KP62..SED..LHD..4F..EUG197802-197903
LIGHT BROWN,BROWN,TRIM4#
main64302-10020-01iKP60..SED;KP62..LHD..5F;KP62..SED..RHD;KP61..SED..EUG;KP62..SED..LHD..4F..GEN;KP62..SED..LHD..4F..EUG197903-198206
BLACK,BLACK,TRIM2#,8#
main64302-10020-06iKP60..SED;KP62..LHD..5F;KP62..SED..RHD;KP62..SED..LHD..4F..GEN;KP62..SED..LHD..4F..EUG197903-198005
LIGHT BROWN,BROWN,TRIM4#
main64302-10020-16iKP60..SED;KP62..LHD..5F;KP62..SED..RHD;KP61..SED..EUG;KP62..SED..4F..EUG;KP62..SED..LHD..4F..GEN198005-198206
LIGHT BROWN,BROWN,TRIM4#
BLACK,BLACK,TRIM2#,8#
LIGHT BROWN,BROWN,TRIM4#
IVORY COAST SPEC
64304ACARPET, PACKAGE TRAY TRIM, LH
main64349-10010-01iKP60..SED;KP62..LHD..5F;KP62..SED..RHD;KP62..SED..LHD..4F..GEN;KP62..SED..LHD..4F..EUG197802-197903
BLACK,BLACK,TRIM2#
main64349-10010-04iKP60..SED;KP62..LHD..5F;KP62..SED..RHD;KP62..SED..LHD..4F..GEN;KP62..SED..LHD..4F..EUG197802-197903
BLUE,BLUE,TRIM8#
main64349-10010-06iKP60..SED;KP62..LHD..5F;KP62..SED..RHD;KP62..SED..LHD..4F..GEN;KP62..SED..LHD..4F..EUG197802-197903
LIGHT BROWN,BROWN,TRIM4#
main64349-10020-01iKP60..SED;KP62..LHD..5F;KP62..SED..RHD;KP61..SED..EUG;KP62..SED..LHD..4F..GEN;KP62..SED..LHD..4F..EUG197903-198208
BLACK,BLACK,TRIM2#
W/O RR 3POINT SEAT BELT,D-WINE,RED/MAROON,TRIM3#
W/O RR 3POINT SEAT BELT,GRAY,GRAY,TRIM1#
main64349-10020-04iKP60..SED;KP62..LHD..5F;KP62..SED..RHD;KP61..SED..EUG;KP62..SED..LHD..4F..GEN;KP62..SED..LHD..4F..EUG197903-198208
BLUE,BLUE,TRIM8#
main64349-10020-06iKP60..SED;KP62..LHD..5F;KP62..SED..RHD;KP62..SED..LHD..4F..GEN;KP62..SED..LHD..4F..EUG197903-198005
LIGHT BROWN,BROWN,TRIM4#
main64349-10020-16iKP60..SED;KP62..LHD..5F;KP62..SED..RHD;KP61..SED..EUG;KP62..SED..4F..EUG;KP62..SED..LHD..4F..GEN198005-198208
LIGHT BROWN,BROWN,TRIM4#
W/O RR 3POINT SEAT BELT,BROWN,BROWN,TRIM4#
*NZ,W/RR3POINT SEATBELT,D-WINE,RED/MAROON,TRIM3#; W/RR 3POINT SEAT BELT,D-WINE,RED/MAROON,TRIM3#
*NZ,W/RR 3POINT SEAT BELT,GRAY,GRAY,TRIM1#; W/RR 3POINT SEAT BELT,GRAY,GRAY,TRIM1#
*NZ,W/RR 3POINT SEATBELT,BROWN,BROWN,TRIM4#; W/RR 3POINT SEAT BELT,BROWN,BROWN,TRIM4#
64306SUSPENDER SUB-ASSY, PACKAGE TRAY TRIM
main64306-10010×2iKP60..SED;KP62..LHD..5F;KP62..SED..RHD;KP61..SED..EUG;KP62..SED..LHD..4F..GEN;KP62..SED..LHD..4F..EUG197802-198208
64330DPANEL ASSY, PACKAGE TRAY TRIM
main64330-10070-01iKP60..SED;KP62..LHD..5F;KP62..SED..RHD;KP62..SED..LHD..4F..GEN;KP62..SED..LHD..4F..EUG197802-197903
BLACK,BLACK,TRIM2#
main64330-10070-04iKP60..SED;KP62..LHD..5F;KP62..SED..RHD;KP62..SED..LHD..4F..GEN;KP62..SED..LHD..4F..EUG197802-197903
BLUE,BLUE,TRIM8#
main64330-10070-06iKP60..SED;KP62..LHD..5F;KP62..SED..RHD;KP62..SED..LHD..4F..GEN;KP62..SED..LHD..4F..EUG197802-197903
LIGHT BROWN,BROWN,TRIM4#
main64330-10080-01iKP60..SED;KP62..LHD..5F;KP62..SED..RHD;KP61..SED..EUG;KP62..SED..LHD..4F..GEN;KP62..SED..LHD..4F..EUG197903-198208
BLACK,BLACK,TRIM2#
main64330-10080-04iKP60..SED;KP62..LHD..5F;KP62..SED..RHD;KP61..SED..EUG;KP62..SED..LHD..4F..GEN;KP62..SED..LHD..4F..EUG197903-198208
BLUE,BLUE,TRIM8#
main64330-10080-06iKP60..SED;KP62..LHD..5F;KP62..SED..RHD;KP62..SED..LHD..4F..GEN;KP62..SED..LHD..4F..EUG197903-198005
LIGHT BROWN,BROWN,TRIM4#
main64330-10080-16iKP60..SED;KP62..LHD..5F;KP62..SED..RHD;KP61..SED..EUG;KP62..SED..4F..EUG;KP62..SED..LHD..4F..GEN198005-198208
LIGHT BROWN,BROWN,TRIM4#
DARK WINE,RED/MAROON,TRIM3#
GRAY,GRAY,TRIM1#
BROWN,BROWN,TRIM4#
64374STOPPER, PACKAGE TRAY TRIM
main64373-10040×2iKP60..SED;KP62..LHD..5F;KP62..SED..RHD;KP61..SED..EUG;KP62..SED..LHD..4F..GEN;KP62..SED..LHD..4F..EUG197903-198208
64387HANGER, PACKAGE TRAY TRIM
main64381-10010×2iKP60..SED;KP62..LHD..5F;KP62..SED..RHD;KP61..SED..EUG;KP62..SED..LHD..4F..GEN;KP62..SED..LHD..4F..EUG197802-198208
64395PIN, PACKAGE TRAY TRIM HINGE
main64395-10010×2iKP60..SED;KP62..LHD..5F;KP62..SED..RHD;KP61..SED..EUG;KP62..SED..LHD..4F..GEN;KP62..SED..LHD..4F..EUG197802-198208
64706COVER SUB-ASSY, QUARTER TRIM, JACK
BLACK,BLACK,TRIM2#
DARK WINE,RED/MAROON,TRIM3#
GRAY,GRAY,TRIM1#
BLUE,BLUE,TRIM8#
LIGHT BROWN,BROWN,TRIM4#
BLUE,BLUE,TRIM8#
LIGHT BROWN,BROWN,TRIM4#
BROWN,BROWN,TRIM4#
64706ATRIM, JACK HOUSE OPENING
64709ARETAINER, LOWER BACK PANEL COVER
64709BCOVER, SERVICE HOLE, NO.1(FOR LOWER BACK PANEL COVER)
BLACK,BLACK,TRIM2#
BLUE,BLUE,TRIM8#
LIGHT BROWN,BROWN,TRIM4#
BLUE,BLUE,TRIM8#
LIGHT BROWN,BROWN,TRIM4#
64709CCOVER, SERVICE HOLE, NO.2(FOR LOWER BACK PANEL COVER)
BLACK,BLACK,TRIM2#
BLUE,BLUE,TRIM8#
LIGHT BROWN,BROWN,TRIM4#
BLUE,BLUE,TRIM8#
LIGHT BROWN,BROWN,TRIM4#
64716DCOVER, DECK TRIM, REAR
W/RR WIPER,BLACK,BLACK,TRIM2#
W/RR WIPER,BLUE,BLUE,TRIM8#
W/RR WIPER,LIGHT BROWN,BROWN,TRIM4#
W/RR WIPER,BLUE,BLUE,TRIM8#
W/RR WIPER,LIGHT BROWN,BROWN,TRIM4#
W/RR WIPER,BLACK,BLACK,TRIM2#
W/RR WIPER,BLUE,BLUE,TRIM8#
W/RR WIPER,LIGHT BROWN,BROWN,TRIM4#
BLACK,BLACK,TRIM2#
BLUE,BLUE,TRIM8#
LIGHT BROWN,BROWN,TRIM4#
BLUE,BLUE,TRIM8#
LIGHT BROWN,BROWN,TRIM4#
BLACK,BLACK,TRIM2#
BLUE,BLUE,TRIM8#
LIGHT BROWN,BROWN,TRIM4#
DARK WINE,RED/MAROON,TRIM3#
GRAY,GRAY,TRIM1#
BROWN,BROWN,TRIM4#
64739COVER, DECK TRIM SIDE WASHER
BLACK,BLACK,TRIM2#
BLUE,BLUE,TRIM8#
LIGHT BROWN,BROWN,TRIM4#
BLUE,BLUE,TRIM8#
LIGHT BROWN,BROWN,TRIM4#
64750PANEL ASSY, DECK SIDE TRIM, RH
main64714-10010-01iKP60..SED;KP62..LHD..5F;KP62..SED..RHD;KP61..SED..EUG;KP62..SED..LHD..4F..GEN;KP62..SED..LHD..4F..EUG197802-198208
BLACK,BLACK,TRIM2#
main64714-10010-04iKP60..SED;KP62..LHD..5F;KP62..SED..RHD;KP62..SED..LHD..4F..GEN;KP62..SED..LHD..4F..EUG197802-198005
BLUE,BLUE,TRIM8#
main64714-10010-06iKP60..SED;KP62..LHD..5F;KP62..SED..RHD;KP62..SED..LHD..4F..GEN;KP62..SED..LHD..4F..EUG197802-198005
LIGHT BROWN,BROWN,TRIM4#
main64714-10010-14iKP60..SED;KP62..LHD..5F;KP62..SED..RHD;KP61..SED..EUG;KP62..SED..4F..EUG;KP62..SED..LHD..4F..GEN198005-198208
BLUE,BLUE,TRIM8#
main64714-10010-16iKP60..SED;KP62..LHD..5F;KP62..SED..RHD;KP61..SED..EUG;KP62..SED..4F..EUG;KP62..SED..LHD..4F..GEN198005-198208
LIGHT BROWN,BROWN,TRIM4#
BLACK,BLACK,TRIM2#
BLUE,BLUE,TRIM8#
LIGHT BROWN,BROWN,TRIM4#
BLUE,BLUE,TRIM8#
LIGHT BROWN,BROWN,TRIM4#
W/O RR 3POINT SEAT BELT,D-WINE,RED/MAROON,TRIM3#
W/O RR 3POINT SEAT BELT,GRAY,GRAY,TRIM1#
W/O RR 3POINT SEAT BELT,BROWN,BROWN,TRIM4#
*NZ,W/RR3POINT SEATBELT,D-WINE,RED/MAROON,TRIM3#; W/RR 3POINT SEAT BELT,GRAY,RED/MAROON,TRIM1#
*NZ,W/RR 3POINT SEAT BELT,GRAY,GRAY,TRIM1#; W/RR 3POINT SEAT BELT,D-WINE,GRAY,TRIM3#
*NZ,W/RR 3POINT SEATBELT,BROWN,BROWN,TRIM4#; W/RR 3POINT SEAT BELT,BROWN,BROWN,TRIM4#
64750BRETAINER(FOR DECK SIDE TRIM PANEL)
BLACK,BLACK,TRIM2#
DARK WINE,RED/MAROON,TRIM3#
GRAY,GRAY,TRIM1#
BLUE,BLUE,TRIM8#
BLUE,BLUE,TRIM8#
LIGHT BROWN,BROWN,TRIM4#
LIGHT BROWN,BROWN,TRIM4#
BROWN,BROWN,TRIM4#
64759ACOVER, SHOCK ABSORBER HEAD
BLACK,BLACK,TRIM2#
DARK WINE,RED/MAROON,TRIM3#
BLUE,BLUE,TRIM8#
LIGHT BROWN,BROWN,TRIM4#
GRAY,GRAY,TRIM1#
BLUE,BLUE,TRIM8#
LIGHT BROWN,BROWN,TRIM4#
BROWN,BROWN,TRIM4#
64760PANEL ASSY, DECK SIDE TRIM, LH
main64715-10010-01iKP60..SED;KP62..LHD..5F;KP62..SED..RHD;KP61..SED..EUG;KP62..SED..LHD..4F..GEN;KP62..SED..LHD..4F..EUG197802-198208
BLACK,BLACK,TRIM2#
W/O RR 3POINT SEAT BELT,D-WINE,RED/MAROON,TRIM3#
W/O RR 3POINT SEAT BELT,GRAY,GRAY,TRIM1#
main64715-10010-04iKP60..SED;KP62..LHD..5F;KP62..SED..RHD;KP62..SED..LHD..4F..GEN;KP62..SED..LHD..4F..EUG197802-198005
BLUE,BLUE,TRIM8#
main64715-10010-06iKP60..SED;KP62..LHD..5F;KP62..SED..RHD;KP62..SED..LHD..4F..GEN;KP62..SED..LHD..4F..EUG197802-198005
LIGHT BROWN,BROWN,TRIM4#
main64715-10010-14iKP60..SED;KP62..LHD..5F;KP62..SED..RHD;KP61..SED..EUG;KP62..SED..4F..EUG;KP62..SED..LHD..4F..GEN198005-198208
BLUE,BLUE,TRIM8#
main64715-10010-16iKP60..SED;KP62..LHD..5F;KP62..SED..RHD;KP61..SED..EUG;KP62..SED..4F..EUG;KP62..SED..LHD..4F..GEN198005-198208
LIGHT BROWN,BROWN,TRIM4#
W/O RR 3POINT SEAT BELT,BROWN,BROWN,TRIM4#
BLACK,BLACK,TRIM2#
BLUE,BLUE,TRIM8#
LIGHT BROWN,BROWN,TRIM4#
BLUE,BLUE,TRIM8#
LIGHT BROWN,BROWN,TRIM4#
*NZ,W/RR3POINT SEATBELT,D-WINE,RED/MAROON,TRIM3#; W/RR 3POINT SEAT BELT,GRAY,RED/MAROON,TRIM1#
*NZ,W/RR 3POINT SEAT BELT,GRAY,GRAY,TRIM1#; W/RR 3POINT SEAT BELT,D-WINE,GRAY,TRIM3#
*NZ,W/RR 3POINT SEATBELT,BROWN,BROWN,TRIM4#; W/RR 3POINT SEAT BELT,BROWN,BROWN,TRIM4#
64910COVER ASSY, PARCEL
BLACK,BLACK,TRIM2#
BLUE,BLUE,TRIM8#
LIGHT BROWN,BROWN,TRIM4#
BLACK,BLACK,TRIM2#
BLUE,BLUE,TRIM8#
LIGHT BROWN,BROWN,TRIM4#
BLACK,BLACK,TRIM2#
GRAY,GRAY,TRIM1#
BLUE,BLUE,TRIM8#
LIGHT BROWN,BROWN,TRIM4#
LIGHT BROWN,BROWN,TRIM4#
BROWN,BROWN,TRIM4#
64910BHANGER, PARCEL COVER
RH
LH
64910GPIN, PARCEL COVER
6471920020COVER, REAR FENDER BRACE
main64719-20020
9015940032
main90159-40032
9018304046
main90183-04046
9020104467
main90201-04467
9026904012
main90269-04012
9095001065
main90950-01065
9166140616
main91661-40616
9354013010
main93540-13010
9354624512
main93546-24512
9356054010
main93560-54010
9361014010
main93610-14010
9361054010
main93610-54010
35 parts on this diagram · 2 diagrams in section
