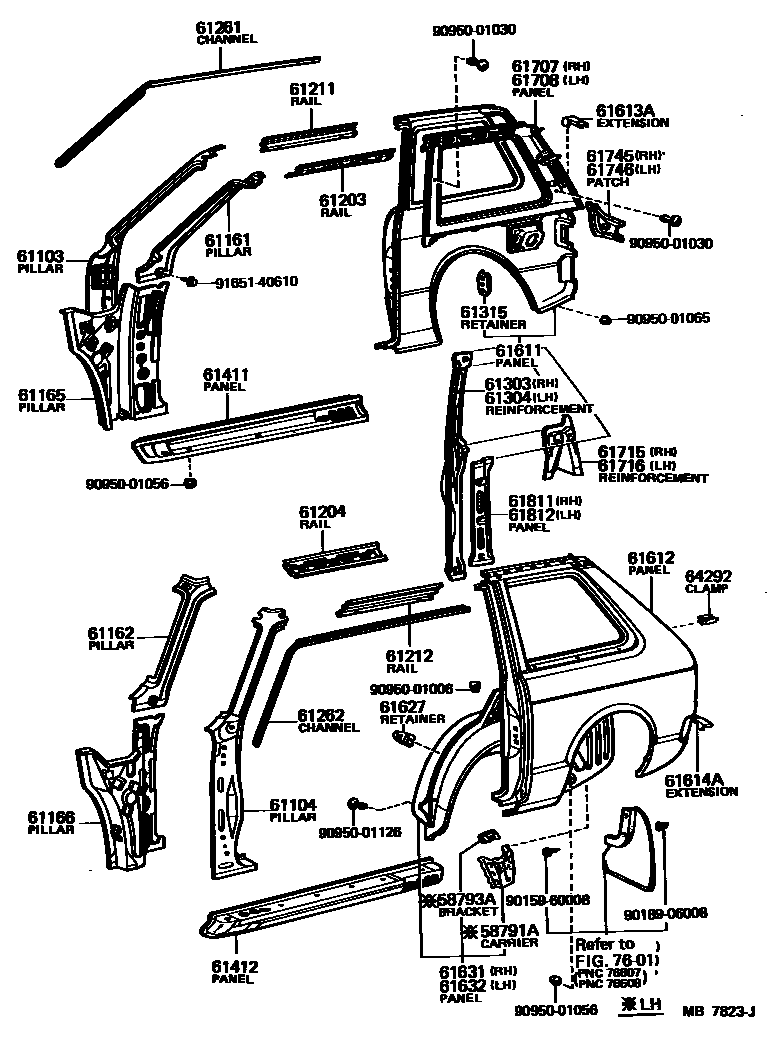

SIDE MEMBER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1

58791ACARRIER, JACK

main58791-10020iKP6#..SED197802-198409

58793ABRACKET, JACK CARRIER

main58793-10020iKP6#..SED197802-198409

61103PILLAR SUB-ASSY, FRONT BODY, RH

main61027-10010iKP6#197802-198208

main61027-10011iKP6#198208-198409

61104PILLAR SUB-ASSY, FRONT BODY, LH

main61028-10010iKP6#197802-198208

main61028-10011iKP6#198208-198409

61161PILLAR, FRONT BODY, UPPER INNER RH

main61021-10020iKP6#198208-198409

main61161-10040iKP6#197802-198208

61162PILLAR, FRONT BODY, UPPER INNER LH

main61022-10010iKP6#198208-198409

main61162-10040iKP6#197802-198208

61165PILLAR, FRONT BODY LOWER INNER, RH

main61023-10013iKP6#..RHD198306-198409

W/O RR WIPER

main61023-10020iKP6#..RHD197802-198108

main61023-10021iKP6#..RHD198108-198208

main61023-10022iKP6#..RHD198208-198306

W/O RR WIPER

main61023-10030iKP6#..LHD197802-198208

main61023-10031iKP6#..LHD198208-198409

main61023-10060iKP62..LHD..GEN198005-198208

W/RADIO,HEATER

main61023-10080iKP6#..RHD198208-198409

W/RR WIPER

61166PILLAR, FRONT BODY LOWER INNER, LH

main61024-10012iKP6#..SED..RHD..GEN198306-198409

main61024-10020iKP6#..RHD197802-197908

main61024-10021iKP6#..RHD198005-198208

main61024-10022iKP6#..SED..RHD..GEN198208-198306

main61024-10030iKP6#..LHD197802-197908

main61024-10031iKP6#..SED..LHD198005-198208

main61024-10032iKP6#..LHD..GEN198208-198409

main61024-10060iKP62..LHD..GEN198005-198208

W/RADIO,HEATER

main61024-10080iKP6#..RHD..EUG198208-198409

main61024-10090iKP6#..LHD..EUR198208-198409

main61024-96441iKP6#..RHD..4D197908-198005

main61024-96442iKP6#..LHD..4D197908-198208

main61024-96445iKP60..RHD..4D198306-198409

main61024-96446iKP60..RHD..4D198208-198306

61203RAIL SUB-ASSY, ROOF SIDE, INNER RH

main61231-10040iKP6#..3D197802-198001

main61231-10050iKP6#..5D197802-198003

main61231-10051iKP6#..5D198003-198409

main61231-96440iKP6#..4D197810-198409

main61232-10050iKP6#..LHD..3D198001-198409

61204RAIL SUB-ASSY, ROOF SIDE, INNER LH

main61231-10040iKP6#..LHD..3D198001-198409

main61232-10040iKP6#..5D197802-198003

main61232-10041iKP6#..5D198003-198409

main61232-10050iKP6#..RHD..3D198001-198409

main61232-96440iKP6#..4D197810-198409

61211RAIL, ROOF SIDE, OUTER RH

main61211-10040iKP6#..3D197802-198409

main61211-10050iKP6#..5D197802-198409

main61211-96440iKP6#..4D197810-198409

61212RAIL, ROOF SIDE, OUTER LH

main61211-10040iKP6#..3D197802-198409

main61212-10040iKP6#..5D197802-198409

main61212-96440iKP6#..4D197810-198409

61261CHANNEL, ROOF DRIP, RH

main61261-10040iKP6#..SED197802-198409

main61261-96440iKP6#..4D197810-198409

61262CHANNEL, ROOF DRIP, LH

main61262-10040iKP6#..SED197802-198409

main61262-96440iKP6#..4D197810-198409

61303REINFORCE SUB-ASSY, CENTER BODY PILLAR, UPPER RH

main61303-10040iKP6#..3D..EUR197802-198005

main61303-10041iKP6#..3D..EUR; KP60..RHD..3D..GEN198005-198108

main61303-10042iKP60,61..3D..EUR; KP60..RHD..3D..GEN198108-198208

61304REINFORCE SUB-ASSY, CENTER BODY PILLAR, UPPER LH

main61304-10030iKP6#..3D..EUR197802-198005

main61304-10031iKP6#..3D..EUR; KP60..RHD..3D..GEN198005-198108

main61304-10032iKP60,61..3D..EUR; KP60..RHD..3D..GEN198108-198208

61315RETAINER, DOOR LOCK STRIKER PLATE

main61309-10030×2iKP6#197802-198409

61411PANEL, ROCKER, OUTER RH

main61401-10010iKP6#..3D..EUR197802-198208

main61411-10100iKP60,62..3D..GEN197802-198208

main61411-10110iKP6#..4D,5D197802-198409

61412PANEL, ROCKER, OUTER LH

main61402-10010iKP60..RHD..3D..GEN198005-198208

W/*ELR

main61412-10100iKP60,62..3D..GEN197802-198208

main61412-10110iKP6#..4D,5D197802-198409

61611PANEL, QUARTER, RH

main61601-10071iKP6#..3D198005-198010

main61601-10072iKP6#..3D198010-198107

main61601-10100iKP6#..3D197802-198005

main61601-10550iKP6#..3D198107-198208

main61601-10902iKP6#..5D197802-198005

main61601-10904iKP6#..5D198005-198107

main61601-10905iKP6#..4D198005-198208

main61601-10908iKP6#..5D198107-198208

main61601-10911iKP6#..3D198208-198409

main61601-10915iKP6#..5D..GEN198311-198409

main61601-10916iKP6#..5D198208-198409

*GIS

main61601-96900iKP6#..4D197810-198005

main61601-96901iKP6#..4D198208-198409

61612PANEL, QUARTER, LH

main61602-10061iKP6#..3D198005-198010

main61602-10062iKP6#..3D198010-198107

main61602-10090iKP6#..3D197802-198005

main61602-10550iKP6#..3D198107-198208

main61602-10903iKP6#..5D197802-198005

main61602-10905iKP6#..5D198005-198107

main61602-10906iKP6#..4D198005-198208

main61602-10909iKP6#..5D198107-198208

main61602-10911iKP6#..3D198208-198409

main61602-10915iKP6#..5D198208-198311

main61602-10916iKP6#..5D198208-198409

*GIS

main61602-96900iKP6#..4D197810-198005

main61602-96901iKP6#..4D198208-198409

61613AEXTENSION, QUARTER PANEL REAR, RH

main61625-10010iKP6#..SED198005-198108

61614AEXTENSION, QUARTER PANEL, REAR LH

main61626-10010iKP62..SDN197807-198005

61627RETAINER, QUARTER TRIM, LOWER

main61751-10060×6iKP6#..3D197802-198409

61631PANEL, QUARTER WHEEL HOUSE, RH

main61603-96440iKP6#..4D197810-198409

main61607-10900iKP6#..SED197802-198005

main61607-10901iKP60,62..SED..GEN198010-198208

main61607-10902iKP61,62..SDN198005-198208

*GIS

main61607-10903iKP60..SED;KP62..LHD..5F;KP62..SED..RHD;KP61..SED..EUG;KP62..SED..4F..EUG;KP62..SED..LHD..4F..GEN198010-198208

*GIS

main61617-10900iKP6#..SED..GEN198208-198409

main61617-10902iKP6#..SED..EUR; KP6#..SED..RHD..GEN198208-198409

*NZ

61632PANEL, QUARTER WHEEL HOUSE, LH

main61604-96440iKP6#..4D197810-198409

main61608-10900iKP60..SED;KP62..LHD..5F;KP62..SED..RHD;KP62..SED..4F..EUG;KP62..SED..LHD..4F..GEN198005-198010

main61608-10901iKP61,62..SDN198005-198208

*GIS

main61608-10902iKP60..SED;KP62..LHD..5F;KP62..SED..RHD;KP61..SED..EUG;KP62..SED..4F..EUG;KP62..SED..LHD..4F..GEN198010-198208

*GIS

main61608-10908iKP6#..SED197802-198005

main61618-10900iKP6#..SED..GEN198208-198409

main61618-10902iKP6#..SED..EUR; KP6#..SED..RHD..GEN198208-198409

*NZ

61707PANEL SUB-ASSY, QUARTER, INNER RH

main61703-10900iKP6#..3D..DLX..GEN198208-198409

W/HINGE

main61703-10901iKP6#..3D..EUR; KP6#..RHD..3D..GEN198208-198409

*NZ,W/O HINGE; W/O HINGE

main61703-10904iKP6#..3D..(DLX,S)..EUR; KP6#..RHD..3D..DLX..GEN198208-198409

*NZ,W/HINGE; W/HINGE

main61703-10905iKP6#..3D..GEN198208-198409

W/O HINGE

main61703-10906iKP6#..5D198208-198409

main61731-10900iKP6#..3D197802-198005

W/HINGE,W/O *PT

main61731-10901iKP60..3D;KP62..RHD..3D;KP62..LHD..3D..5F;KP62..LHD..3D..4F..GEN;KP62..LHD..3D..4F..EUG197802-198005

W/HINGE,*PT

main61731-10902iKP6#..3D197802-198005

W/O HINGE,*PT

main61731-10903iKP60..3D;KP62..RHD..3D;KP62..LHD..3D..5F;KP62..LHD..3D..4F..GEN;KP62..LHD..3D..4F..EUG197802-198005

W/O HINGE,W/*PT

main61731-10904iKP6#..5D197802-198005

W/O *PT

main61731-10905iKP6#..5D197802-198005

W/*PT

main61731-10906iKP60,62..3D..GEN198005-198208

W/*NLR,HINGE,W/O *PT

main61731-10907iKP60,62..3D..GEN198005-198208

W/*NLR,W/O HINGE,*PT

main61731-10908iKP6#..3D..EUG; KP60..RHD..3D..GEN198005-198208

W/*ELR,W/O HINGE,*PT

main61731-10909iKP61,62..SDN198005-198208

W/O HINGE

main61731-10910iKP60,62..3D..GEN198005-198208

W/*NLR,HINGE & *PT

main61731-10911iKP60,62..3D..GEN198005-198208

W/*NLR,*PT,W/O HINGE

main61731-10912iKP6#..3D..EUG; KP60..RHD..3D..GEN198005-198208

W/*ELR,*PT,W/O HINGE

main61731-10913iKP6#..3D..EUG; KP60..RHD..3D..GEN198005-198208

W/*ELR,HINGE,W/O *PT

main61731-10914iKP61,62..SDN198005-198208

W/HINGE

main61731-10915iKP6#..3D..EUG; KP60..RHD..3D..GEN198005-198208

W/*ELR,HINGE & *PT

main61731-10916iKP6#..5D198005-198208

W/O *PT

main61731-10917iKP6#..5D198005-198208

W/*PT

61708PANEL SUB-ASSY, QUARTER, INNER LH

main61704-10900iKP6#..3D..DLX..GEN198208-198409

W/HINGE

main61704-10901iKP6#..3D..EUR; KP6#..RHD..3D..GEN198208-198409

*NZ,W/O HINGE; W/O HINGE

main61704-10904iKP6#..3D..(DLX,S)..EUR; KP6#..RHD..3D..DLX..GEN198208-198409

*NZ,W/HINGE; W/HINGE

main61704-10905iKP6#..3D..GEN198208-198409

W/O HINGE

main61704-10906iKP6#..5D198208-198409

main61732-10900iKP6#..3D197802-198005

W/HINGE,W/O *PT

main61732-10901iKP60..3D;KP62..RHD..3D;KP62..LHD..3D..5F;KP62..LHD..3D..4F..GEN;KP62..LHD..3D..4F..EUG197802-198005

W/HINGE,*PT

main61732-10902iKP6#..3D197802-198005

W/O HINGE,*PT

main61732-10903iKP60..3D;KP62..RHD..3D;KP62..LHD..3D..5F;KP62..LHD..3D..4F..GEN;KP62..LHD..3D..4F..EUG197802-198005

W/O HINGE,W/*PT

main61732-10904iKP6#..5D197802-198005

W/O *PT

main61732-10905iKP6#..5D197802-198005

W/*PT

main61732-10906iKP60,62..3D..GEN198005-198208

W/*NLR,HINGE,W/O *PT

main61732-10907iKP60,62..3D..GEN198005-198208

W/*NLR,W/O HINGE,*PT

main61732-10908iKP6#..3D..EUG; KP60..RHD..3D..GEN198005-198208

W/*ELR,W/O HINGE,*PT

main61732-10909iKP61,62..SDN198005-198208

W/O HINGE

main61732-10910iKP60,62..3D..GEN198005-198208

W/*NLR,HINGE & *PT

main61732-10911iKP60,62..3D..GEN198005-198208

W/*NLR,*PT,W/O HINGE

main61732-10912iKP6#..3D..EUG; KP60..RHD..3D..GEN198005-198208

W/*ELR,*PT,W/O HINGE

main61732-10913iKP6#..3D..EUG; KP60..RHD..3D..GEN198005-198208

W/*ELR,HINGE,W/O *PT

main61732-10914iKP61,62..SDN198005-198208

W/HINGE

main61732-10915iKP6#..3D..EUG; KP60..RHD..3D..GEN198005-198208

W/*ELR,HINGE & *PT

main61732-10916iKP6#..5D198005-198208

W/O *PT

main61732-10917iKP6#..5D198005-198208

W/*PT

61715REINFORCEMENT, ROOF SIDE, INNER REAR RH

main61737-10020iKP6#..3D197802-198208

main61737-10021iKP6#..3D198208-198409

main61737-10030iKP6#..5D197802-198208

main61737-10031iKP6#..5D198208-198409

61716REINFORCEMENT, ROOF SIDE, INNER REAR LH

main61738-10010iKP6#..3D197802-198208

main61738-10011iKP6#..3D198208-198409

main61738-10020iKP6#..5D197802-198208

main61738-10021iKP6#..5D198208-198409

61745PATCH, BACK DOOR OPENING, LOWER RH

main61745-10010iKP6#..SED197802-198208

main61745-10011iKP6#..SED198208-198409

61746PATCH, BACK DOOR OPENING, LOWER LH

main61746-10010iKP6#..SED197802-198208

main61746-10011iKP6#..SED198208-198409

61811PANEL, QUARTER INSIDE, FRONT RH

main61613-10010iKP6#..3D197802-198409

61812PANEL, QUARTER INSIDE, FRONT LH

main61614-10010iKP6#..3D197802-198409

64292CLAMP, JACK HANDLE

main64292-10020×3iKP6#..SED197802-197903

7601MUDGUARD & SPOILER

→ Go to FIG 76-01

9015960008

main90159-60008

9018906008

main90189-06008

9095001006

main90950-01006

9095001030

main90950-01030

9095001056

main90950-01056

9095001065

main90950-01065

9095001126

main90950-01126

9165140610

main91651-40610

44 parts on this diagram · 9 diagrams in section
