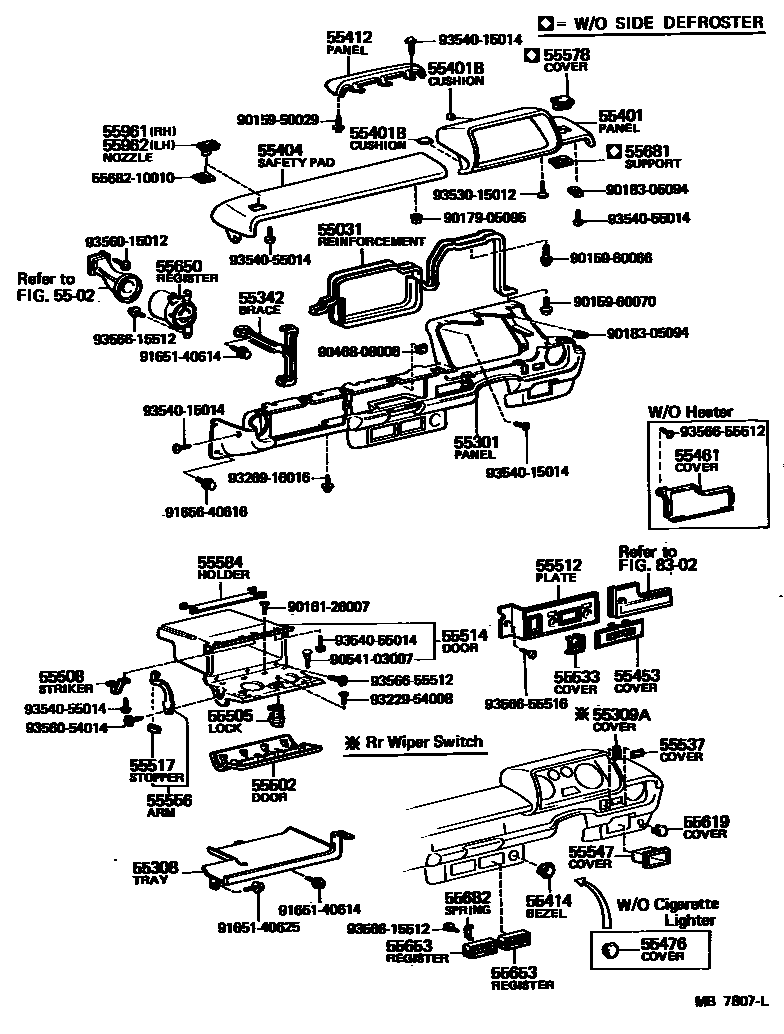

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1 0003 1 0004 1

5502COWL VENTILATOR

→ Go to FIG 55-02

55031REINFORCEMENT, INSTRUMENT PANEL, NO.1

main55305-10030iKP6#..RHD198208-198409

main55305-10040iKP6#..LHD198208-198409

main55330-10010iKP6#..RHD197802-198208

main55330-10020iKP6#..LHD197802-198208

55301PANEL SUB-ASSY, INSTRUMENT

main55301-10341-01iKP6#..SED..RHD198005-198208

ALMINISH,BLACK,BLACK,TRIM2#

main55301-10341-04iKP6#..SED..RHD198005-198208

ALMINISH,BLUE,BLUE,TRIM8#

main55301-10341-06iKP6#..SED..RHD198005-198208

ALMINISH,LIGHT BROWN,BROWN,TRIM4#

main55301-10360-01iKP6#..SED..LHD198005-198208

ALMINISH,BLACK,BLACK,TRIM2#

main55301-10360-04iKP6#..SED..LHD198005-198208

ALMINISH,BLUE,BLUE,TRIM8#

main55301-10360-06iKP6#..SED..LHD198005-198208

ALMINISH,LIGHT BROWN,BROWN,TRIM4#

main55311-10100-01iKP6#..RHD197802-198208

BLACK,BLACK,TRIM2#

main55311-10100-04iKP6#..RHD197802-198005

BLUE,BLUE,TRIM8#

main55311-10100-05iKP6#..RHD197802-198005

BEIGE,BEIGE,TRIM4#

main55311-10100-06iKP6#..RHD198005-198208

LIGHT BROWN,BROWN,TRIM4#

main55311-10110-01iKP6#..LHD197802-198208

BLACK,BLACK,TRIM2#

main55311-10110-04iKP6#..LHD197802-198005

BLUE,BLUE,TRIM8#

main55311-10110-05iKP6#..LHD197802-198005

BEIGE,BEIGE,TRIM4#

main55311-10110-06iKP6#..LHD198005-198208

LIGHT BROWN,BROWN,TRIM4#

main55311-10130-02iKP6#..RHD198208-198409

DARK WINE,RED/MAROON,TRIM3#

main55311-10130-03iKP6#..RHD198208-198409

GRAY,GRAY,TRIM1#

main55311-10130-06iKP6#..SED..RHD198208-198409

BROWN,BROWN,TRIM4#

main55311-10140-02iKP6#..LHD..(DLX,STD)198208-198409

DARK WINE,RED/MAROON,TRIM3#

main55311-10140-03iKP6#..LHD198208-198409

GRAY,GRAY,TRIM1#

main55311-10140-06iKP6#..SED..LHD..(DLX,STD)198208-198409

BROWN,BROWN,TRIM4#

55308TRAY SUB-ASSY, INSTRUMENT PANEL UNDER

main55601-10020iKP6#..RHD197802-198208

main55601-10040iKP6#..LHD197802-198208

55309ACOVER, BASE SWITCH HOLE, NO.1

main55384-20011-01iKP6#197802-198208

BLACK,BLACK,TRIM2#

55342BRACE, INSTRUMENT PANEL, NO.2

main55307-10010iKP6#..RHD197802-198208

main55307-10020iKP6#..LHD197802-198208

main55307-10030iKP6#..RHD198208-198409

main55307-10040iKP6#..LHD198208-198409

55401PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH

main55404-10070-02iKP6#..SED..RHD198208-198409

DARK WINE,RED/MAROON,TRIM3#

main55404-10070-03iKP6#..RHD198208-198409

GRAY,GRAY,TRIM1#

main55404-10070-06iKP6#..RHD198208-198409

BROWN,BROWN,TRIM4#

main55404-10080-02iKP6#..SED..LHD..(DLX,STD)198208-198409

DARK WINE,RED/MAROON,TRIM3#

main55404-10080-03iKP6#..LHD198208-198409

GRAY,GRAY,TRIM1#

main55404-10080-06iKP6#..LHD..(DLX,STD)198208-198409

BROWN,BROWN,TRIM4#

main55411-10100-01iKP6#..RHD197802-198208

BLACK,BLACK,TRIM2#

main55411-10100-04iKP6#..SED..RHD198005-198208

BLUE,BLUE,TRIM8#

main55411-10100-05iKP6#..RHD197802-198005

BEIGE,BEIGE,TRIM4#

main55411-10100-06iKP6#..RHD198005-198208

L-BROWN,BROWN,TRIM4#

main55411-10110-01iKP6#..LHD197802-198004

BLACK,BLACK,TRIM2#

main55411-10110-04iKP6#..LHD197802-198004

BLUE,BLUE,TRIM8#

main55411-10110-05iKP6#..LHD197802-198004

BEIGE,BEIGE,TRIM4#

main55411-10111-01iKP6#..LHD198004-198208

BLACK,BLACK,TRIM2#

main55411-10111-04iKP6#..LHD198004-198005

BLUE,BLUE,TRIM8#

main55411-10111-05iKP6#..LHD198004-198005

BEIGE,BEIGE,TRIM4#

main55411-10111-06iKP6#..LHD198005-198208

L-BROWN,BROWN,TRIM4#

55401BCUSHION, INSTRUMENT CLUSTER FINISH PANEL

main55419-10010×3iKP6#197802-198208

UPR,L=6

main55419-10020×2iKP6#198012-198208

LWR,L=30

main55419-10050×2iKP6#198208-198409

UPR

main55419-10070iKP6#198208-198409

LWR

55404SAFETY PAD SUB-ASSY, INSTRUMENT PANEL, UPPER

main55401-10130-01iKP6#..RHD..4D..EUG197810-198005

W/SIDE DEFROSTER,BLACK,BLACK,TRIM2#

main55401-10130-04iKP6#..SED..RHD..EUG197802-198208

BLUE,BLUE,TRIM8#

main55401-10130-05iKP6#..RHD..4D..EUG197810-198005

W/SIDE DEFROSTER,BEIGE,BEIGE,TRIM4#

main55401-10130-06iKP6#..RHD..EUG198005-198208

L-BROWN,BROWN,TRIM4#

main55401-10140-01iKP60,62..SED..RHD..GEN197802-198208

BLACK,BLACK,TRIM2#

main55401-10140-04iKP6#..RHD..4D197810-198005

BLUE,BLUE,TRIM8#

main55401-10140-05iKP6#..SED..RHD..GEN197802-198005

BEIGE,BEIGE,TRIM4#

main55401-10140-06iKP60,62..RHD..4D; KP60,62..SED..RHD..GEN198005-198208

L-BROWN,BROWN,TRIM4#

main55401-10150-01iKP6#..SED..LHD..GEN197802-198004

BLACK,BLACK,TRIM2#

main55401-10150-04iKP6#..SED..LHD..GEN197802-198004

BLUE,BLUE,TRIM8#

main55401-10150-05iKP6#..LHD..4D197810-198004

BEIGE,BEIGE,TRIM4#

main55401-10151-01iKP6#..LHD..4D; KP60,62..SED..LHD..GEN198004-198208

BLACK,BLACK,TRIM2#

main55401-10151-04iKP6#..LHD..4D198004-198005

BLUE,BLUE,TRIM8#

main55401-10151-05iKP6#..LHD..4D; KP6#..SED..LHD..GEN198004-198005

BEIGE,BEIGE,TRIM4#

main55401-10151-06iKP6#..LHD..4D; KP60,62..SED..LHD..GEN198005-198208

L-BROWN,BROWN,TRIM4#

main55401-10160-01iKP6#..SED..LHD..EUR197802-198004

BLACK,BLACK,TRIM2#

main55401-10160-04iKP6#..SED..LHD..EUR197802-198004

BLUE,BLUE,TRIM8#

main55401-10160-05iKP6#..SED..LHD..EUR197802-198004

BEIGE,BEIGE,TRIM4#

main55401-10161-01iKP6#..LHD..4D..EUG; KP6#..SED..LHD..EUR198004-198208

BLACK,BLACK,TRIM2#; W/SIDE DEFROSTER,BLACK,BLACK,TRIM2#

main55401-10161-04iKP6#..LHD..4D..EUG198004-198005

W/SIDE DEFROSTER,BLUE,BLUE,TRIM8#

main55401-10161-05iKP6#..LHD..4D..EUG; KP6#..SED..LHD..EUR198004-198005

BEIGE,BEIGE,TRIM4#; W/SIDE DEFROSTER,BEIGE,BEIGE,TRIM4#

main55401-10161-06iKP6#..4D..EUG; KP6#..SED..LHD..EUR198005-198208

L-BROWN,BROWN,TRIM4#; W/SIDE DEFROSTER,L-BROWN,BROWN,TRIM4#

main55401-10170-02iKP6#..SED..RHD198208-198409

W/SIDE DEFROSTER,DARK WINE,RED/MAROON,TRIM3#

main55401-10170-03iKP6#..RHD198208-198409

W/SIDE DEFROSTER,GRAY,GRAY,TRIM1#

main55401-10170-06iKP6#..RHD198208-198409

W/SIDE DEFROSTER,BROWN,BROWN,TRIM4#

main55401-10180-02iKP6#..SED..LHD..(DLX,STD)198208-198409

W/SIDE DEFROSTER,DARK WINE,RED/MAROON,TRIM3#

main55401-10180-03iKP6#..LHD198208-198409

W/SIDE DEFROSTER,GRAY,GRAY,TRIM1#

main55401-10180-06iKP6#..LHD..(DLX,STD)198208-198409

W/SIDE DEFROSTER,BROWN,BROWN,TRIM4#

main55401-10190-02iKP6#..SED..RHD..GEN198208-198409

W/O SIDE DEFROSTER,DARK WINE,RED/MAROON,TRIM3#

main55401-10190-03iKP6#..RHD..GEN198208-198409

W/O SIDE DEFROSTER,GRAY,GRAY,TRIM1#

main55401-10190-06iKP6#..RHD..GEN198208-198409

W/O SIDE DEFROSTER,BROWN,BROWN,TRIM4#

main55401-10200-02iKP60..SED..LHD;KP61..LHD..DLX..EUG;KP61..SED..LHD..GEN198208-198409

W/O SIDE DEFROSTER,DARK WINE,RED/MAROON,TRIM3#

main55401-10200-03iKP60..LHD;KP61..LHD..GEN;KP61..LHD..EUG198208-198409

W/O SIDE DEFROSTER,GRAY,GRAY,TRIM1#

main55401-10200-06iKP60..LHD;KP61..LHD..GEN;KP61..LHD..DLX..EUG198208-198409

W/O SIDE DEFROSTER,BROWN,BROWN,TRIM4#

55412PANEL, INSTRUMENT CLUSTER FINISH, END

main55414-10020-01iKP6#..RHD197802-198208

BLACK,BLACK,TRIM2#

main55414-10020-04iKP6#..RHD197802-198005

BLUE,BLUE,TRIM8#

main55414-10020-05iKP6#..RHD197802-198005

BEIGE,BEIGE,TRIM4#

main55414-10020-06iKP6#..RHD198005-198208

L-BROWN,BROWN,TRIM4#

main55414-10030-01iKP6#..LHD197802-198208

BLACK,BLACK,TRIM2#

main55414-10030-04iKP6#..SED..LHD198005-198208

BLUE,BLUE,TRIM8#

main55414-10030-05iKP6#..LHD197802-198005

BEIGE,BEIGE,TRIM4#

main55414-10030-06iKP6#..LHD198005-198208

L-BROWN,BROWN,TRIM4#

55414BEZEL, CIGAR LIGHTER HOLE

main55477-10020iKP6#197802-198208

main55477-10030iKP6#198208-198409

55453COVER, RADIO TUNER OPENING

main55522-10010iKP6#..RHD197802-198005

main55522-10020-01iKP6#198005-198005

BLACK,BLACK,TRIM2#

main55522-10020-04iKP6#..SED198005-198005

BLUE,BLUE,TRIM8#

main55522-10020-05iKP6#..LHD197805-198005

BEIGE,BEIGE,TRIM4#

main55522-10021-01iKP6#198005-198208

BLACK,BLACK,TRIM2#

main55522-10021-04iKP6#..SED198005-198208

BLUE,BLUE,TRIM8#

main55522-10021-06iKP6#198005-198208

L-BROWN,BROWN,TRIM4#

main55522-10030iKP6#198208-198409

55461COVER, HEATER CONTROL HOLE

main55523-10010-01iKP60,62..RHD..GEN197802-198208

W/O HEATER,BLACK,BLACK,TRIM2#

main55523-10010-04iKP60,62..SED..RHD..GEN198005-198208

W/O HEATER,BLUE,BLUE,TRIM8#

main55523-10010-05iKP6#..RHD..GEN197802-198005

W/O HEATER,BEIGE,BEIGE,TRIM4#

main55523-10010-06iKP60,62..RHD..GEN198005-198208

W/O HEATER,L-BROWN,BROWN,TRIM4#

main55523-10020-01iKP60,62..LHD..GEN197802-198208

W/O HEATER,BLACK,BLACK,TRIM2#

main55523-10020-04iKP6#..LHD..GEN197802-198005

W/O HEATER,BLUE,BLUE,TRIM8#

main55523-10020-05iKP6#..LHD..GEN197802-198005

W/O HEATER,BEIGE,BEIGE,TRIM4#

main55523-10020-06iKP60,62..LHD..GEN198005-198208

W/O HEATER,L-BROWN,BROWN,TRIM4#

main55523-10030-01iKP60,62..SED..RHD..GEN198005-198208

ALMINISH,W/O HEATER,BLACK,BLACK,TRIM2#

main55523-10030-04iKP60,62..SED..RHD..GEN198005-198208

ALMINISH,W/O HEATER,BLUE,BLUE,TRIM8#

main55523-10030-06iKP60,62..SED..RHD..GEN198005-198208

ALMINISH,W/O HEATER,L-BROWN,BROWN,TRIM4#

main55523-10040-01iKP60,62..SED..LHD..GEN198005-198208

ALMINISH,W/O HEATER,BLACK,BLACK,TRIM2#

main55523-10040-04iKP60,62..SED..LHD..GEN198005-198208

ALMINISH,W/O HEATER,BLUE,BLUE,TRIM8#

main55523-10040-06iKP60,62..SED..LHD..GEN198005-198208

ALMINISH,W/O HEATER,L-BROWN,BROWN,TRIM4#

55476COVER, CIGARETTE LIGHTER HOLE

main55477-10010iKP6#197802-198208

55502DOOR SUB-ASSY, GLOVE COMPARTMENT, OUTER

main55502-10011-01iKP6#..SED198005-198208

ALMINISH,BLACK,BLACK,TRIM2#

main55502-10011-04iKP6#..SED198005-198208

ALMINISH,BLUE,BLUE,TRIM8#

main55502-10011-06iKP6#..SED198005-198208

ALMINISH,L-BROWN,BROWN,TRIM4#

main55551-10010-01iKP6#197802-198208

BLACK,BLACK,TRIM2#

main55551-10010-04iKP6#..SED198005-198208

BLUE,BLUE,TRIM8#

main55551-10010-05iKP6#197802-198005

BEIGE,BEIGE,TRIM4#

main55551-10010-06iKP6#198005-198208

L-BROWN,BROWN,TRIM4#

55505LOCK SUB-ASSY, GLOVE COMPARTMENT DOOR

main55560-12020iKP6#197802-198208

main55560-16010-02iKP6#..SED..(DLX,STD)198208-198409

DARK WINE,RED/MAROON,TRIM3#

main55560-16010-03iKP6#198208-198409

GRAY,GRAY,TRIM1#

main55560-16010-06iKP6#..DLX,STD198208-198409

BROWN,BROWN,TRIM4#

55508STRIKER SUB-ASSY, GLOVE COMPARTMENT DOOR LOCK

main55561-10010iKP6#197802-198208

55512PLATE, RADIO TUNER FINISH

main55405-10070-01iKP6#..SED..LHD198005-198208

ALMINISH,W/CLOCK,BLACK,BLACK,TRIM2#

main55405-10070-04iKP6#..SED..LHD198005-198208

ALMINISH,W/CLOCK,BLUE,BLUE,TRIM8#

main55405-10070-06iKP6#..SED..LHD198005-198208

ALMINISH,W/CLOCK,L-BROWN,BROWN,TRIM4#

main55405-10080-01iKP6#..SED..LHD198005-198208

ALMINISH,BLACK,BLACK,TRIM2#

main55405-10080-04iKP6#..SED..LHD198005-198208

ALMINISH,BLUE,BLUE,TRIM8#

main55405-10080-06iKP6#..SED..LHD198005-198208

ALMINISH,L-BROWN,BROWN,TRIM4#

main55405-10090-01iKP6#..SED..RHD198005-198208

ALMINISH,BLACK,BLACK,TRIM2#

main55405-10090-04iKP6#..SED..RHD198005-198208

ALMINISH,BLUE,BLUE,TRIM8#

main55405-10090-06iKP6#..SED..RHD198005-198208

ALMINISH,L-BROWN,BROWN,TRIM4#

main55513-10040-01iKP6#..RHD197802-198005

W/RADIO,CLOCK,L=124,BLACK,BLACK,TRIM2#

main55513-10040-04iKP6#..RHD197802-198005

W/RADIO,CLOCK,L=124,BLUE,BLUE,TRIM8#

main55513-10040-05iKP6#..RHD197802-198005

W/RADIO,CLOCK,L=124,BEIGE,BEIGE,TRIM4#

main55513-10060-01iKP6#..RHD197802-198005

BLACK,BLACK,TRIM2#

main55513-10060-04iKP6#..RHD197802-198005

BLUE,BLUE,TRIM8#

main55513-10060-05iKP6#..RHD197802-198005

BEIGE,BEIGE,TRIM4#

main55513-10061-01iKP6#..RHD198005-198208

BLACK,BLACK,TRIM2#

main55513-10061-04iKP6#..SED..RHD198005-198208

BLUE,BLUE,TRIM8#

main55513-10061-06iKP6#..RHD198005-198208

L-BROWN,BROWN,TRIM4#

main55513-10070-01iKP6#..LHD197802-198005

W/RADIO,CLOCK,L=124,BLACK,BLACK,TRIM2#

main55513-10070-04iKP6#..LHD197802-198005

W/RADIO,CLOCK,L=124,BLUE,BLUE,TRIM8#

main55513-10070-05iKP6#..LHD197802-198005

W/RADIO,CLOCK,L=124,BEIGE,BEIGE,TRIM4#

main55513-10080-01iKP6#..LHD197802-198005

W/RADIO,W/O CLOCK,L=130,BLACK,BLACK,TRIM2#

main55513-10080-04iKP6#..LHD197802-198005

W/RADIO,W/O CLOCK,L=130,BLUE,BLUE,TRIM8#

main55513-10080-05iKP6#..LHD197802-198005

W/RADIO,W/O CLOCK,L=130,BEIGE,BEIGE,TRIM4#

main55513-10110-01iKP60..LHD197804-198005

W/RADIO,CLOCK,L=130,BLACK,BLACK,TRIM2#

main55513-10110-04iKP60..LHD197804-198005

W/RADIO,CLOCK,L=130,BLUE,BLUE,TRIM8#

main55513-10110-05iKP60..LHD197804-198005

W/RADIO,CLOCK,L=130,BEIGE,BEIGE,TRIM4#

main55513-10120-01iKP6#..LHD198005-198208

BLACK,BLACK,TRIM2#

main55513-10120-04iKP6#..SED..LHD198005-198208

BLUE,BLUE,TRIM8#

main55513-10120-06iKP6#..LHD198005-198208

L-BROWN,BROWN,TRIM4#

main55513-10130-01iKP6#..LHD198005-198208

W/CLOCK,BLACK,BLACK,TRIM2#

main55513-10130-04iKP6#..SED..LHD198005-198208

W/CLOCK,BLUE,BLUE,TRIM8#

main55513-10130-06iKP6#..LHD198005-198208

W/CLOCK,L-BROWN,BROWN,TRIM4#

55514DOOR, GLOVE COMPARTMENT, INNER

main55552-10010iKP6#197802-198208

55517STOPPER, GLOVE COMPARTMENT DOOR ARM

main55517-14010iKP6#197802-198208

55533COVER, AUTO CLOCK HOLE

main55533-10010iKP6#197802-198005

main55533-10011iKP6#..RHD198006-198208

main55533-10020iKP6#198208-198409

55537COVER, REAR WINDOW DEFOGGER SWITCH HOLE

main55537-22010iKP60;KP61..EUG;KP62..RHD;KP62..LHD..5F;KP62..LHD..4F..GEN;KP62..LHD..4F..EUG197802-198208

main55539-24010-01iKP6#..GEN;KP60..STD..EUG198208-198409

BLACK

55547COVER, REMOTE CONTROL MIRROR HOLE

main55547-10020iKP6#..RHD197802-198208

55556ARM, GLOVE COMPARTMENT DOOR CHECK

main55556-10020iKP6#197802-198208

55578COVER, SIDE DEFROSTER OPENING, RH

main55578-10010-01iKP60,62..RHD..4D197810-198208

BLACK,BLACK,TRIM2#

main55578-10010-04iKP60,62..SED..RHD..GEN197802-198208

BLUE,BLUE,TRIM8#

main55578-10010-05iKP6#..RHD..4D197810-198005

BEIGE,BEIGE,TRIM4#

main55578-10010-06iKP60,62..RHD..4D; KP60,62..SED..RHD..GEN198005-198208

L-BROWN,BROWN,TRIM4#

55584HOLDER, MAP

main55584-10030iKP6#197802-197812

55619COVER, SWITCH HOLE

main55617-10010iKP6#..RHD197908-198208

main55619-14010-01iKP6#..RHD197802-197908

BLACK,BLACK

55650REGISTER ASSY, INSTRUMENT PANEL, NO.1

main55650-10010×2iKP6#197802-198208

main55650-10020-02iKP6#..SED..RHD198208-198409

DARK WINE,RED/MAROON,TRIM3#

main55650-10020-03iKP6#..RHD198208-198409

GRAY,GRAY,TRIM1#

main55650-10020-06iKP6#..RHD198208-198409

BROWN,BROWN,TRIM4#

main55650-10030-02iKP6#..SED..LHD..(DLX,STD)198208-198409

DARK WINE,RED/MAROON,TRIM3#

main55650-10030-03iKP6#..LHD198208-198409

GRAY,GRAY,TRIM1#

main55650-10030-06iKP6#..LHD..(DLX,STD)198208-198409

BROWN,BROWN,TRIM4#

55653REGISTER, INSTRUMENT PANEL, NO.3

main55063-12010×2iKP6#197802-198208

55681SUPPORT, INSTRUMENT PANEL REGISTER, NO.1

main55682-10010iKP60,62..SED..GEN197802-198208

main55682-10040×2iKP6#198208-198409

55682SPRING, INSTRUMENT PANEL REGISTER SUPPORT

main55686-10020iKP6#197802-197902

main58914-22010iKP6#197902-198208

55961NOZZLE, SIDE DEFROSTER, NO.1

main55961-10010-01iKP6#..EUR197802-198208

BLACK,BLACK,TRIM2#

main55961-10010-04iKP6#..EUR197802-198005

BLUE,BLUE,TRIM8#

main55961-10010-05iKP6#..EUR197802-198005

BEIGE,BEIGE,TRIM4#

main55961-10010-06iKP6#..EUR198005-198208

LIGHT BROWN,BROWN,TRIM4#

main55961-10020-02iKP6#..SED..(DLX,STD)198208-198409

DARK WINE,RED/MAROON,TRIM3#

main55961-10020-03iKP6#198208-198409

GRAY,GRAY,TRIM1#

main55961-10020-06iKP6#..DLX,STD198208-198409

BROWN,BROWN,TRIM4#

55962NOZZLE, SIDE DEFROSTER, NO.2

main55962-10010-01iKP6#..EUR197802-198208

BLACK,BLACK,TRIM2#

main55962-10010-04iKP6#..EUR197802-198005

BLUE,BLUE,TRIM8#

main55962-10010-05iKP6#..EUR197802-198005

BEIGE,BEIGE,TRIM4#

main55962-10010-06iKP6#..EUR198005-198208

LIGHT BROWN,BROWN,TRIM4#

main55962-10020-02iKP6#..SED..(DLX,STD)198208-198409

DARK WINE,RED/MAROON,TRIM3#

main55962-10020-03iKP6#198208-198409

GRAY,GRAY,TRIM1#

main55962-10020-06iKP6#..DLX,STD198208-198409

BROWN,BROWN,TRIM4#

8302INDICATOR

→ Go to FIG 83-02

5568210010SPRING, INSTRUMENT PANEL REGISTER SUPPORT

main55682-10010

9015950029

main90159-50029

9015960066

main90159-60066

9015960070

main90159-60070

9016126007

main90161-26007

9017905095

main90179-05095

9018305094

main90183-05094

9046808008

main90468-08008

9054103007

main90541-03007

9165140614

main91651-40614

9165140625

main91651-40625

9165640616

main91656-40616

9322954008

main93229-54008

9326916016

main93269-16016

9353015012

main93530-15012

9354015014

main93540-15014

9354055014

main93540-55014

9356015012

main93560-15012

9356054014

main93560-54014

9356615512

main93566-15512

9356655512

main93566-55512

9356655516

main93566-55516

56 parts on this diagram · 4 diagrams in section
