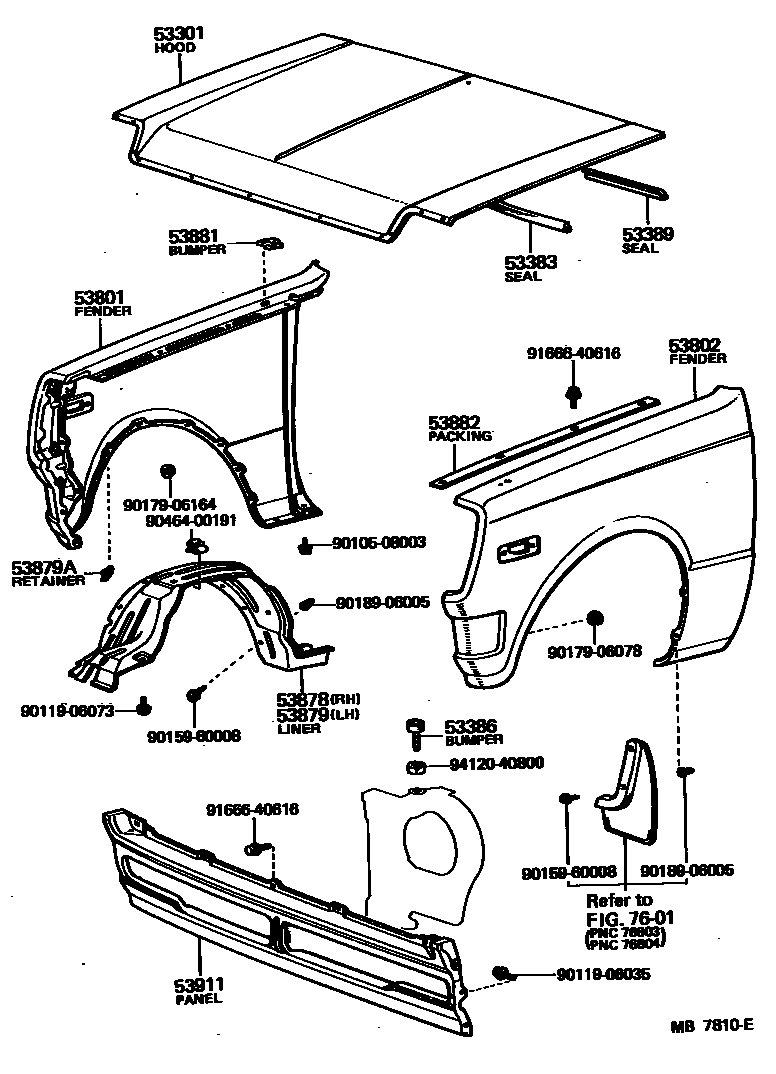

HOOD & FRONT FENDER

0001 1 0002 1 0003 1

53301HOOD SUB-ASSY

main53301-10150iKP6#197802-198005

main53301-10151iKP6#198005-198010

main53301-10152iKP6#..GEN198208-198409

main53301-10190iKP6#..EUR198010-198208

main53301-10191iKP6#..EUR198208-198409

53383SEAL, HOOD TO COWL TOP

main53383-10011iKP6#197802-198409

53386BUMPER, HOOD, REAR

main53382-12040×2iKP6#198010-198409

main53382-20011×2iKP6#197802-198010

53389SEAL, HOOD TO COWL TOP SIDE

main53389-10011×2iKP6#197802-198208

main53389-10020iKP6#198208-198409

53801FENDER SUB-ASSY, FRONT RH

main53801-10270iKP6#..GEN197802-198005

W/MIRROR HOLE

main53801-10271iKP60,62..GEN198005-198208

W/MIRROR HOLE,SMALL BUMPER

main53801-10281iKP60,62..GEN198005-198208

W/O MIRROR HOLE,SMALL BUMPER

main53801-10290iKP6#197802-198005

W/O MIRROR HOLE

main53801-10291iKP6#..EUG198005-198208

W/O MIRROR HOLE,SMALL BUMPER

main53801-10292iKP6#198208-198409

main53801-10330iKP60,62..GEN198005-198208

W/MIRROR HOLE,BIG BUMPER

main53801-10340iKP6#..EUR198005-198208

W/O MIRROR HOLE,BIG BUMPER

main53801-10350iKP60,62..GEN198005-198208

W/O MIRROR HOLE,BIG BUMPER

53802FENDER SUB-ASSY, FRONT LH

main53802-10320iKP6#..GEN197802-198005

W/MIRROR HOLE

main53802-10321iKP60,62..GEN198005-198208

W/MIRROR HOLE,SMALL BUMPER

main53802-10331iKP60,62..GEN198005-198208

W/O MIRROR HOLE,SMALL BUMPER

main53802-10340iKP6#197802-198005

W/O MIRROR HOLE

main53802-10341iKP6#..EUG198005-198208

W/O MIRROR HOLE,SMALL BUMPER

main53802-10342iKP6#198208-198409

W/O ANTENNA HOLE

main53802-10380iKP60,62..GEN198005-198208

W/MIRROR HOLE,BIG BUMPER

main53802-10390iKP6#..EUR198005-198208

W/O MIRROR HOLE,BIG BUMPER

main53802-10400iKP60,62..GEN198005-198208

W/O MIRROR HOLE,BIG BUMPER

main53802-10480iKP6#..SED..EUR198208-198409

W/ANTENNA HOLE

53878LINER, FRONT FENDER, RH

main53875-10010iKP6#197802-198005

main53875-10011iKP6#198005-198409

53879LINER, FRONT FENDER, LH

main53876-10010iKP6#197802-198005

main53876-10011iKP6#198005-198409

53879ARETAINER, FRONT FENDER LINER

main53879-10010×8iKP6#197802-198409

53881BUMPER, FENDER TO HOOD

main53384-10040iKP6#197802-197904

RH

main53387-10010iKP6#197802-197904

LH

53882PACKING, FRONT FENDER MAIN

main53882-10040×2iKP6#197802-198005

main53882-10041×2iKP6#198005-198208

main53882-10042×2iKP6#198208-198409

53911PANEL, FRONT VALANCE

main53901-10020iKP6#197802-198005

main53901-10050iKP60,62..GEN198005-198208

UPR,SMALL BUMPER

main53901-10060iKP60,62..GEN198005-198208

UPR,BIG BUMPER

main53901-10070iKP6#..EUG198005-198208

UPR,SMALL BUMPER

main53901-10080iKP6#..EUR198005-198208

UPR,BIG BUMPER

main53902-10010iKP60,62..GEN198005-198208

LWR,SMALL BUMPER

main53902-10020iKP60,62..GEN198005-198208

LWR,BIG BUMPER

main53902-10030iKP6#..EUG198005-198208

LWR,SMALL BUMPER

main53902-10031iKP6#198208-198409

main53902-10040iKP6#..EUR198005-198208

LWR,BIG BUMPER

7601MUDGUARD & SPOILER

→ Go to FIG 76-01

9010508003

main90105-08003

9011906035

main90119-06035

9011906073

main90119-06073

9015960008

main90159-60008

9017906078

main90179-06078

9017906164

main90179-06164

9018906005

main90189-06005

9046400191

main90464-00191

9166640616

main91666-40616

9412040800

main94120-40800

23 parts on this diagram · 3 diagrams in section
