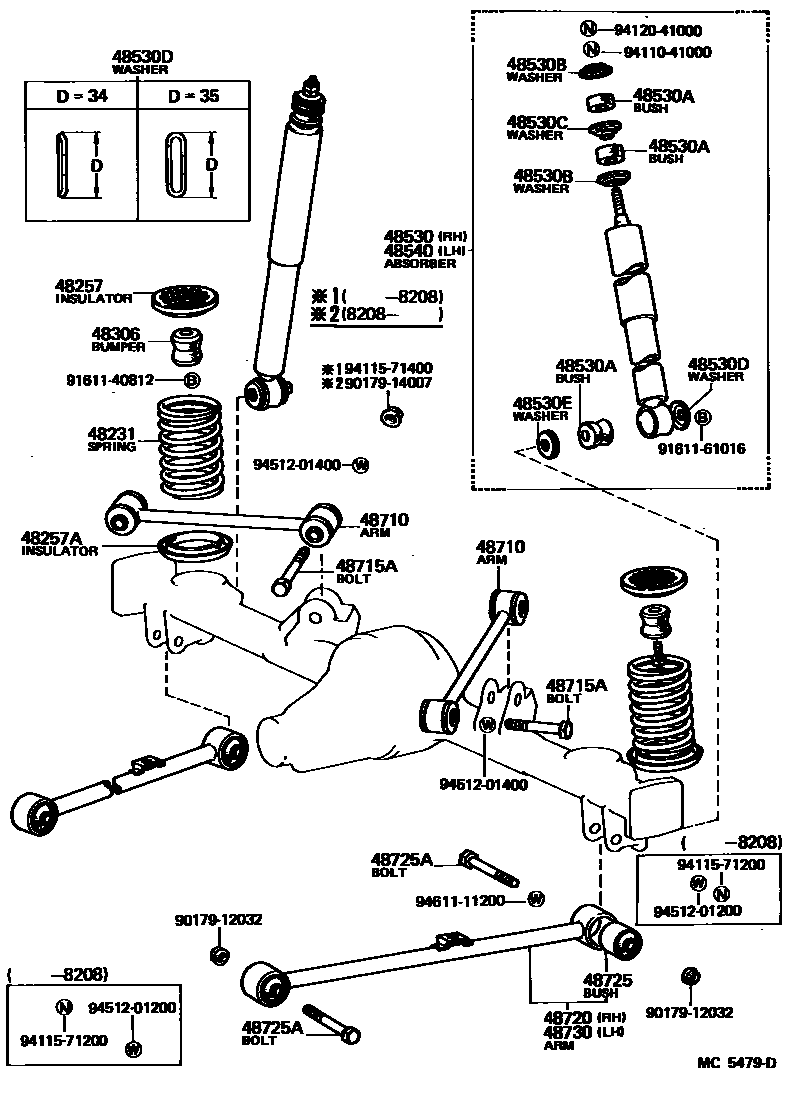

REAR SPRING & SHOCK ABSORBER

0001 1 0002 1 0003 1

48231SPRING, COIL, REAR

main48231-10010iKP6#..SED197802-198005

RH

main48231-10030iKP6#..SED198005-198103

RH

main48231-10080iKP6#..SED198103-198208

RH

main48231-10081iKP6#..SED..EUR198208-198409

RH

main48231-10090iKP6#..SED198103-198208

LH

main48231-10091iKP6#..SED..EUR198208-198409

LH

main48231-10100iKP6#..SED..GEN198208-198409

LH

main48231-10110iKP6#..SED..GEN198208-198409

RH

main48295-10020iKP6#..SED197802-198005

LH

main48295-10040iKP6#..SED198005-198103

LH

48257INSULATOR, REAR COIL SPRING

main48257-14010×2iKP6#..SED197802-198409

48257AINSULATOR, REAR COIL SPRING, LOWER

main48258-14010×2iKP6#..SED197802-198409

48306BUMPER SUB-ASSY, REAR SPRING

main48341-10050×2iKP6#..SED197802-198208

main48341-10060×2iKP6#..SED..EUR198208-198409

main48341-11040×2iKP6#..4D197810-198409

48530ABSORBER ASSY, SHOCK, REAR RH

main48531-19495iKP6#..SED..GEN197802-198005

main48531-19515iKP6#..SED..EUR197802-198005

main48531-19555iKP6#..4D197810-198005

main48531-19675iKP6#..SED..GEN198005-198008

main48531-19676iKP60,62..SED..GEN198008-198205

main48531-19677iKP60,62..SED..GEN198205-198208

main48531-19678iKP6#..SED..GEN198208-198409

main48531-19695iKP6#..SED..EUR198005-198008

main48531-19696iKP6#..SED..EUR198008-198205

main48531-19697iKP60,61..SED..EUR198205-198208

main48531-19698iKP6#..SED..EUR198208-198409

main48531-19705iKP6#..4D..EUR198005-198409

48530ABUSH(FOR REAR SHOCK ABSORBER)

main90385-16001×2iKP6#198005-198409

ABSORBER X RR AXLE HOUSING

main90385-16060×2iKP6#197802-198005

ABSORBER X RR AXLE HOUSING

main90948-01002×4iKP6#..4D197810-198409

ABSORBER X BODY

main90948-01003×4iKP6#..SED197802-198202

ABSORBER X BODY

main90948-01022×4iKP6#..SED198202-198409

ABSORBER X BODY

48530BWASHER, REAR SHOCK ABSORBER CUSHION, NO.1

main90948-02002×4iKP6#..SED197802-198409

main90948-02004×4iKP6#..4D197810-198208

main90948-02067×4iKP6#..4D198208-198409

48530CWASHER, REAR SHOCK ABSORBER CUSHION, NO.2

main90948-02005×2iKP6#..4D197810-198409

main90948-02007×2iKP6#..SED197802-198409

48530DWASHER, REAR SHOCK ABSORBER CUSHION, NO.3

main90948-03007×2iKP6#..SED197802-198409

main90948-03012×2iKP6#..4D197810-198409

48530EWASHER, REAR SHOCK ABSORBER CUSHION, NO.4

main90948-03004×2iKP6#197802-198409

48540ABSORBER ASSY, SHOCK, REAR LH

main48531-19495iKP6#..SED..GEN197802-198005

main48531-19515iKP6#..SED..EUR197802-198005

main48531-19555iKP6#..4D197810-198005

main48531-19675iKP6#..SED..GEN198005-198008

main48531-19676iKP60,62..SED..GEN198008-198205

main48531-19677iKP60,62..SED..GEN198205-198208

main48531-19678iKP6#..SED..GEN198208-198409

main48531-19695iKP6#..SED..EUR198005-198008

main48531-19696iKP6#..SED..EUR198008-198205

main48531-19697iKP60,61..SED..EUR198205-198208

main48531-19698iKP6#..SED..EUR198208-198409

main48531-19705iKP6#..4D..EUR198005-198409

48710ARM ASSY, UPPER CONTROL

main48710-10010×2iKP6#..SED197802-198005

main48710-10020×2iKP6#..SED198005-198409

48715ABOLT, HEXAGON(FOR UPPER CONTROL ARM)

main90101-14007×4iKP6#..SED197802-198409

48720ARM ASSY, LOWER CONTROL, RH

main48720-10010iKP6#..SED197802-198409

48725BUSH, LOWER CONTROL ARM

main48702-10020×4iKP6#..SED197802-198409

48725ABOLT(FOR LOWER CONTROL ARM)

main90101-12026×4iKP6#..SED197802-198409

48730ARM ASSY, LOWER CONTROL, LH

main48720-10010iKP6#..SED197802-198409

9017912032

main90179-12032

9017914007

main90179-14007

9161140812

main91611-40812

9161161016

main91611-61016

9411041000

main94110-41000

9411571200

main94115-71200

9411571400

main94115-71400

9412041000

main94120-41000

9451201200

main94512-01200

9451201400

main94512-01400

9461111200

main94611-11200

28 parts on this diagram · 3 diagrams in section
