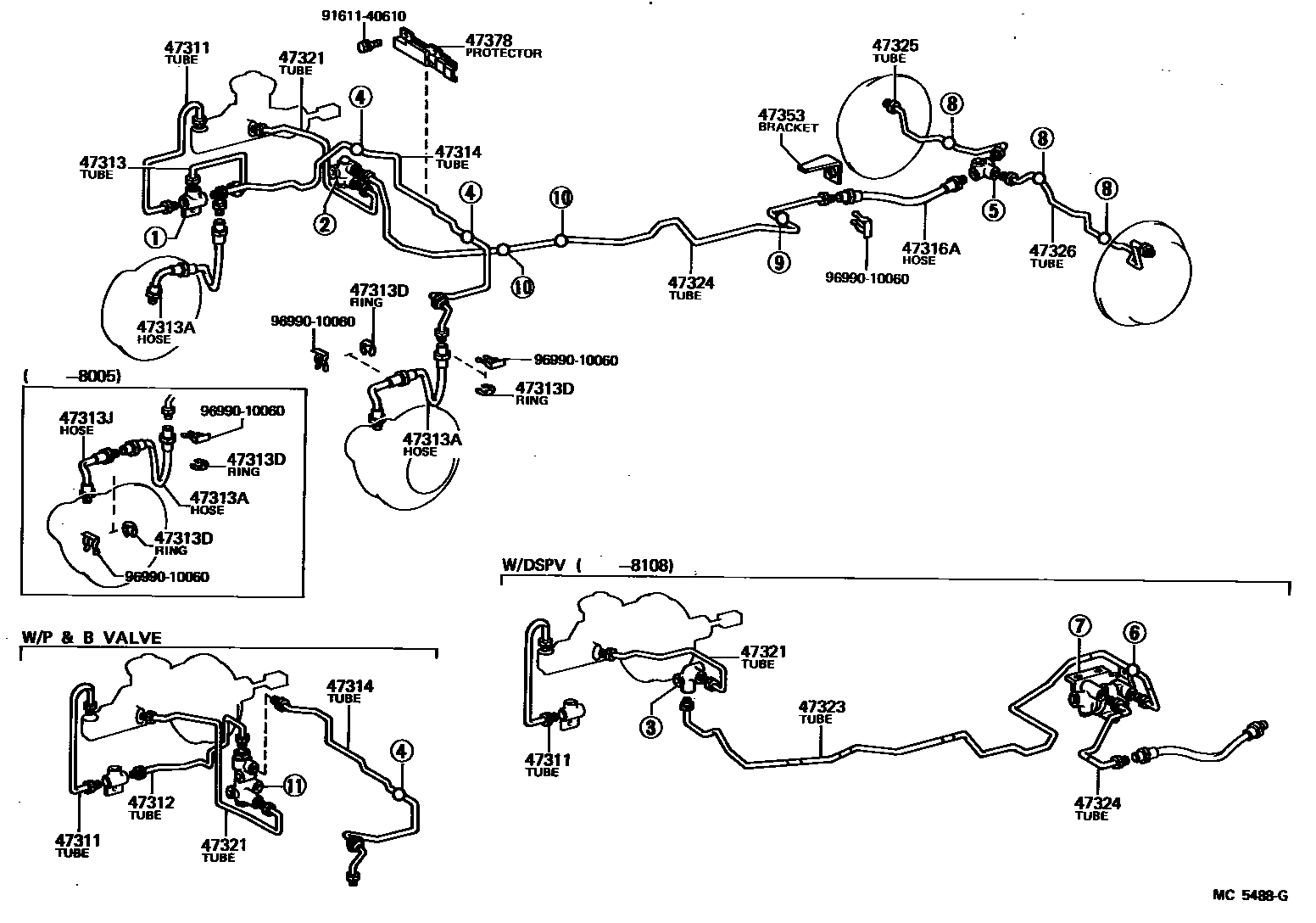

BRAKE TUBE & CLAMP

0001 1 0002 1 0003 1

47311TUBE, FRONT BRAKE, NO.1

main47311-10040iKP60..LHD;KP62..LHD..5F;KP62..LHD..4F..GEN;KP62..LHD..4F..EUG197802-198108

main47311-10050iKP6#..RHD..GEN; KP6#..SED..RHD..EUG197802-198005

W/BOOSTER

main47311-10060iKP6#..RHD..GEN197802-198409

W/O BOOSTER

main47311-10070iKP62..SDN197807-198108

main47311-10080iKP60..LHD;KP61..LHD..(4D,5D);KP61..LHD..3D..EUG;KP61..LHD..3D..GEN; KP61..SDZ198208-198409

SWITZERLAND SPEC

main47311-10090iKP61..3D..SDZ198208-198409

47312TUBE, FRONT BRAKE, NO.2

main47312-10030iKP6#..SED..LHD..EUG197802-198005

main47312-10050iKP62..SDN197807-198005

main47312-10080iKP6#..SED..LHD..EUG198005-198208

main47312-10090iKP62..SDN198005-198108

main47312-10110iKP6#..LHD..EUG; KP61..SED..SDZ198208-198409

SWITZERLAND SPEC

main47312-10120iKP61..3D..SDZ198208-198409

main47313-10130iKP6#..SED..RHD..EUG197802-198208

47313TUBE, FRONT BRAKE, NO.3

main47312-10020iKP6#..LHD..4D197810-198005

main47312-10040iKP6#..RHD197802-198005

main47312-10060iKP6#..RHD198208-198409

main47312-10070iKP6#..LHD..4D; KP60,62..SED..LHD..GEN198005-198208

main47312-10100iKP6#..LHD..4D; KP6#..SED..LHD..GEN198208-198409

main47313-10120iKP6#..SED..LHD..EUG197802-198005

main47313-10150iKP62..SDN197807-198005

main47313-10170iKP6#..LHD..EUG; KP61..SED..SDZ198208-198409

SWITZERLAND SPEC

main47313-10180iKP61..SDN198108-198208

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90947-02362×2iKP6#197802-198005

main90947-02414×2iKP6#198005-198409

47313DRING, E(FOR FRONT FLEXIBLE HOSE SETTING)

main96160-01200×4iKP6#197802-198409

47313JHOSE, FLEXIBLE, NO.2(FOR FRONT)

main90947-02366×2iKP6#197802-197902

main96960-39705×2iKP6#197902-198005

47314TUBE, FRONT BRAKE, NO.4

main47313-10140iKP6#..RHD..4D; KP6#..SED..RHD..GEN197802-198005

main47313-10160iKP60,62..RHD..GEN198005-198208

main47313-10190iKP6#..RHD..GEN198208-198409

main47314-10110iKP6#..SED..LHD..GEN; KP60..LHD;KP62..LHD..5F;KP62..LHD..4F..GEN;KP62..LHD..4F..EUG197802-198005

main47314-10120iKP62..SDN197807-198005

main47314-10130iKP6#..SED..RHD..EUG197802-198005

main47314-10140iKP6#..RHD..EUG198005-198208

main47314-10150iKP60..LHD;KP62..LHD..5F;KP62..4F..EUG;KP61..LHD..EUG;KP62..LHD..4F..GEN198005-198208

main47314-10160iKP61..3D..SDZ198208-198409

main47314-10170iKP6#..RHD..EUG198208-198409

47316AHOSE, FLEXIBLE(FOR REAR BRAKE TUBE)

main96940-31325iKP6#197802-197902

main96940-33205iKP6#197902-198409

47321TUBE, REAR BRAKE, NO.1

main47321-10020iKP6#..LHD..GEN197802-198005

main47321-10030iKP6#..RHD198005-198208

W/BOOSTER

main47321-10040iKP6#..RHD..GEN197802-198409

W/O BOOSTER

main47321-10060iKP62..SDN197807-198005

main47321-10070iKP6#..LHD..GEN; KP6#..SED..LHD..EUG198005-198108

main47321-10080iKP62..SDN198005-198108

main47321-10090iKP60,61..SED..LHD..EUG; KP60,62..LHD..GEN198108-198208

main47321-10100iKP61..SDN198108-198208

main47321-10120iKP61..3D..SDZ198208-198409

main47321-10130iKP60..LHD;KP61..LHD..GEN;KP61..LHD..EUG; KP61..SED..SDZ198208-198409

SWITZERLAND SPEC

main47321-11010iKP6#..RHD..4D..EUG197810-198005

main47321-11020iKP6#..LHD..4D..EUG197810-198005

main47321-11030iKP6#..4D..EUG198005-198108

main47321-11040iKP60,61..4D..EUG198108-198208

main47321-11050iKP6#..4D..EUR198208-198409

W/DSPV

47323TUBE, REAR BRAKE, NO.3

main47322-11030iKP6#..4D..EUG197810-198005

main47322-11050iKP6#..4D..EUG198005-198108

main47322-11060iKP60,61..4D..EUR198108-198409

47324TUBE, REAR BRAKE, NO.4

main47322-10010iKP60..SED;KP62..LHD..5F;KP62..SED..RHD;KP62..SED..LHD..4F..GEN;KP62..SED..LHD..4F..EUG197802-198005

main47322-10020iKP62..SDN197807-198005

main47322-10030iKP60..SED;KP62..LHD..5F;KP62..SED..RHD;KP62..SED..4F..EUG;KP62..SED..LHD..4F..GEN198005-198108

main47322-10040iKP62..SDN198005-198108

main47322-10050iKP61..RHD;KP60,62..SED;KP61..SED..LHD..EUG;KP61..SED..LHD..GEN198108-198409

main47322-10060iKP61..3D..SDZ198208-198409

main47322-11010iKP6#..4D..EUG; KP6#..4D..GEN197810-198005

W/DSPV

main47322-11020iKP6#..4D..EUG197810-198208

main47322-11040iKP6#..4D..GEN198005-198108

main47322-11070iKP6#..4D..4F198208-198409

47325TUBE, REAR BRAKE, NO.5

main47323-10020iKP60..SED;KP62..LHD..5F;KP61,62..SED..RHD;KP61..SED..LHD..GEN;KP61..SED..LHD..EUG;KP62..SED..LHD..4F..GEN;KP62..SED..LHD..4F..EUG197802-198409

main47323-10030iKP61..SDN198108-198208

main47323-11010iKP6#..4D197810-198409

47326TUBE, REAR BRAKE, NO.6

main47324-10020iKP60..SED;KP62..LHD..5F;KP61,62..SED..RHD;KP61..SED..LHD..GEN;KP61..SED..LHD..EUG;KP62..SED..LHD..4F..GEN;KP62..SED..LHD..4F..EUG197802-198409

main47324-10030iKP61..SDN198108-198208

main47324-11010iKP6#..4D197810-198409

47353BRACKET, FLEXIBLE HOSE(FOR REAR)

main51681-10011iKP6#..SED197802-198409

47378PROTECTOR, BRAKE TUBE

main47378-10010iKP6#197802-198208

main47378-10020iKP6#198208-198409

9161140610

main91611-40610

9699010060

main96990-10060

17 parts on this diagram · 3 diagrams in section
