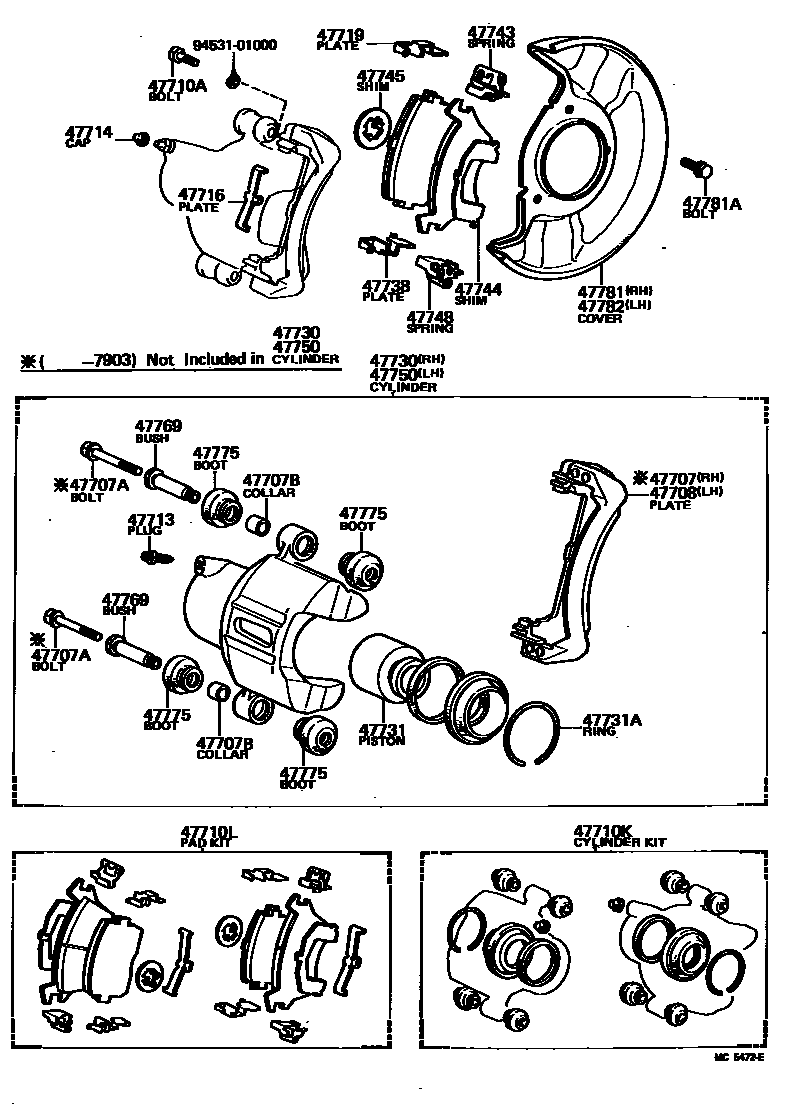

FRONT DISC BRAKE CALIPER & DUST COVER
47707PLATE SUB-ASSY, DISC BRAKE TORQUE, FRONT RH
47707ABOLT, HEXAGON(FOR FRONT DISC BRAKE TORQUE PLATE)
47707BCOLLAR(FOR FRONT DISC BRAKE TORQUE PLATE)
47708PLATE SUB-ASSY, DISC BRAKE TORQUE, FRONT LH
47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)
47710KCYLINDER KIT, DISC BRAKE, FRONT
47713PLUG, BLEEDER(FOR FRONT DISC BRAKE)
47714CAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)
47716PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)
47719PLATE, FRONT DISC BRAKE PAD GUIDE
47730CYLINDER ASSY, FRONT DISC BRAKE, RH
47731PISTON, FRONT DISC BRAKE
47731ARING, SET(FOR FRONT DISC BRAKE PISTON)
47738PLATE, DISC BRAKE PAD GUIDE, NO.2
47743SPRING, ANTI-RATTLE, NO.2(FOR FRONT DISC BRAKE)
47744SHIM, ANTI-SQUEAL, NO.1(FOR FRONT DISC BRAKE)
47745SHIM, ANTI-SQUEAL, NO.2(FOR FRONT DISC BRAKE)
47748SPRING, ANTI-RATTLE, NO.1(FOR FRONT DISC BRAKE)
47750CYLINDER ASSY, DISC BRAKE, LH
47769BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)
47775BOOT, BUSH DUST(FOR FRONT DISC BRAKE)
47781COVER, DISC BRAKE DUST, FRONT RH
47781ABOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)
47782COVER, DISC BRAKE DUST, FRONT LH
9453101000
main94531-01000
26 parts on this diagram · 2 diagrams in section
