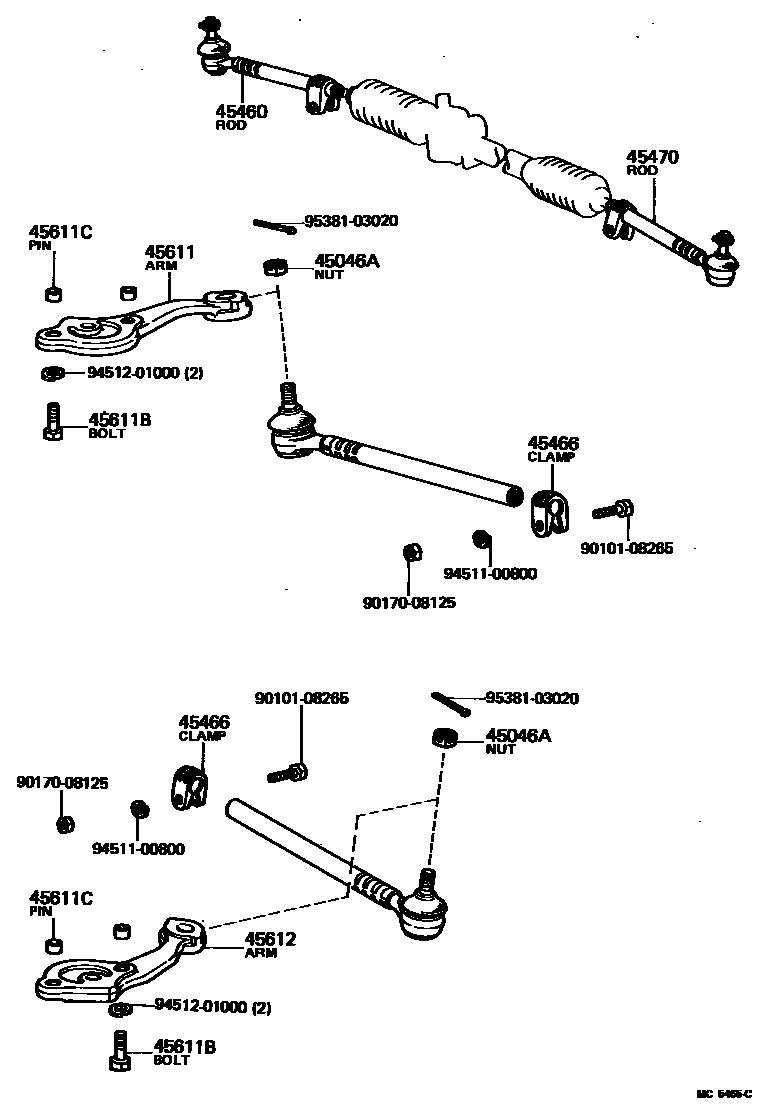

FRONT STEERING GEAR & LINK

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-12028×2iKP6#197802-198409

45460ROD ASSY, TIE, RH

main45460-19105iKP6#197802-198005

main45460-19145iKP6#198005-198409

45466CLAMP, TIE ROD END

main45466-22010×2iKP6#197802-198409

45470ROD ASSY, TIE, LH

main45460-19105iKP6#197802-198005

main45460-19145iKP6#198005-198409

45611ARM, STEERING KNUCKLE, RH

main45611-10020iKP6#197802-198005

main45611-10030iKP6#198005-198208

main45611-10040iKP6#198208-198409

45611BBOLT, HEXAGON(FOR STEERING KNUCKLE TO SHOCK ABSORBER)

main90101-10275×4iKP6#197802-198409

45611CPIN, STRAIGHT(FOR STEERING KNUCKLE TO SHOCK ABSORBER)

main90253-13013×4iKP6#197802-198409

45612ARM, STEERING KNUCKLE, LH

main45612-10020iKP6#197802-198005

main45612-10030iKP6#198005-198208

main45612-10040iKP6#198208-198409

9010108265

main90101-08265

9017008125

main90170-08125

9451100800

main94511-00800

9451201000

main94512-01000

9538103020

main95381-03020

13 parts on this diagram · 1 diagram in section
