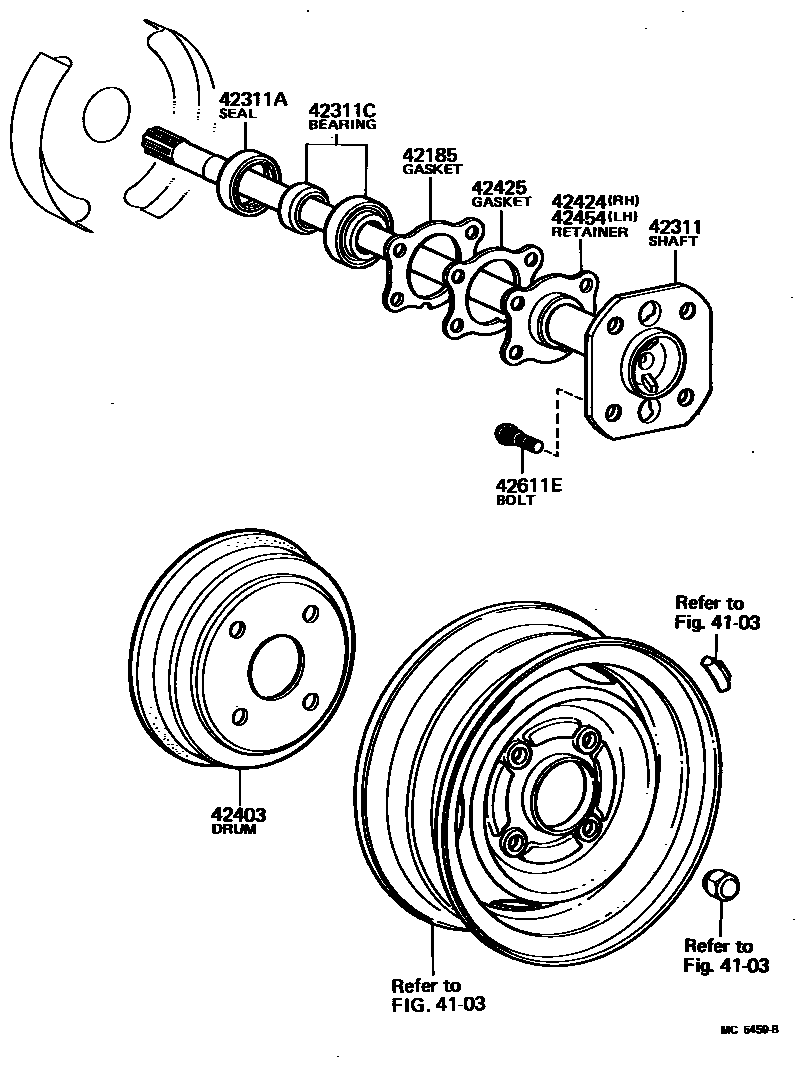

REAR AXLE SHAFT & HUB

4103DISC WHEEL & WHEEL CAP

→ Go to FIG 41-03

42185GASKET, REAR AXLE HOUSING END

main42185-10010×2iKP6#197802-198409

T=0.3

main42185-10020×2iKP6#197802-198409

T=0.6

42311SHAFT, REAR AXLE

main42311-10040×2iKP61..3FC;KP61..SDN198108-198208

main42311-11020×2iKP6#..4D197810-198208

42311ASEAL, OIL(FOR REAR AXLE SHAFT)

main90311-42055×2iKP6#197802-198409

42311CBEARING(FOR REAR AXLE SHAFT)

main04421-12010×2iKP6#197802-198409

42403DRUM SUB-ASSY, REAR BRAKE

main42431-10040×2iKP6#197802-198409

42424RETAINER, REAR AXLE BEARING, OUTER, RH

main42424-10030iKP6#197802-198409

42425GASKET, REAR AXLE BEARING RETAINER

main42425-10020×2iKP6#197802-198409

42454RETAINER, REAR AXLE BEARING, OUTER, LH

main42454-10010iKP6#197802-198409

42611EBOLT, HUB (FOR REAR AXLE)

main90942-02035×8iKP6#197802-198306

main90942-02047×8iKP6#198306-198409

10 parts on this diagram · 1 diagram in section
