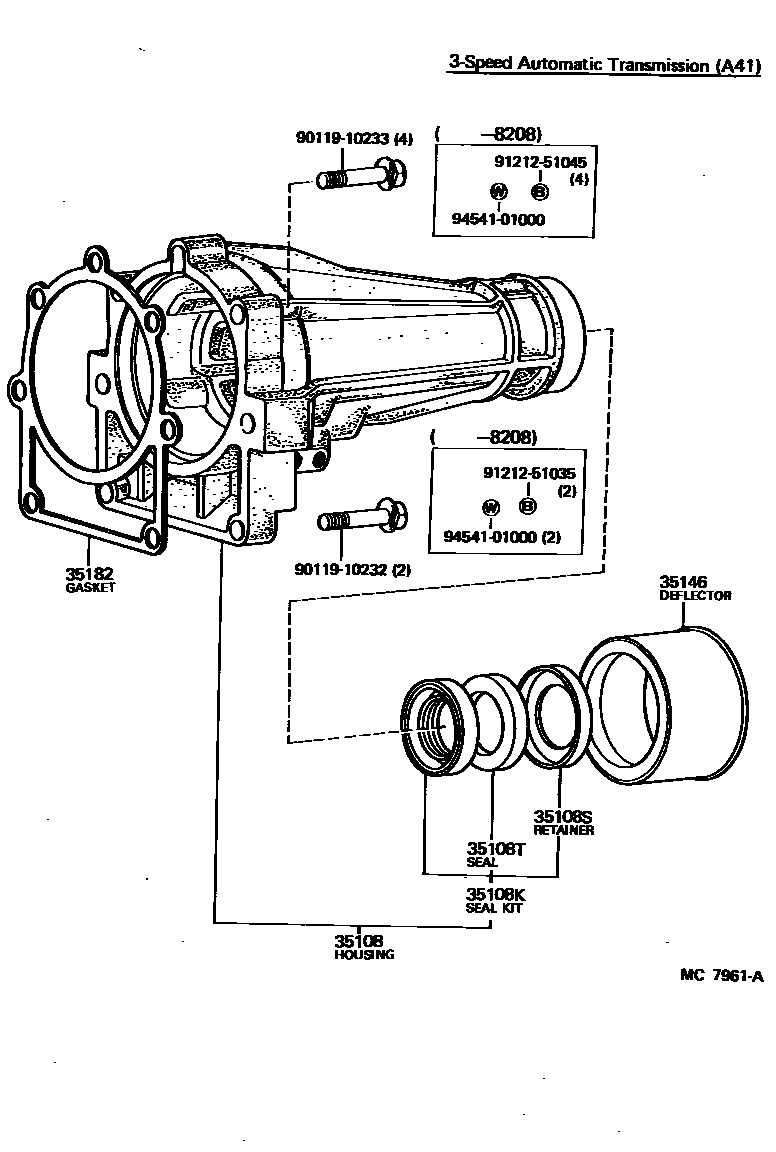

EXTENSION HOUSING (ATM)

35108HOUSING SUB-ASSY, EXTENSION (ATM)

main35108-22032iKP61..3FC198108-198112

main35108-22033iKP61..3FC198112-198409

35108KSEAL KIT, OIL(FOR AUTOMATIC EXTENSION HOUSING)

main04332-30020iKP61..3FC198108-198409

35108SRETAINER, EXTENSION HOUSING DUST SEAL (ATM)

main33145-30010iKP61..3FC198108-198409

35108TSEAL, DUST (FOR AUTOMATIC TRANSMISSION EXTENSION HOUSING)

main90303-38010iKP61..3FC198108-198409

35146DEFLECTOR, EXTENSION HOUSING DUST (ATM)

main33146-30010iKP61..3FC198108-198409

35182GASKET, EXTENSION HOUSING (ATM)

main35182-22010iKP61..3FC198108-198409

9011910232

main90119-10232

9011910233

main90119-10233

9121251035

main91212-51035

9121251045

main91212-51045

9454101000

main94541-01000

11 parts on this diagram · 1 diagram in section
