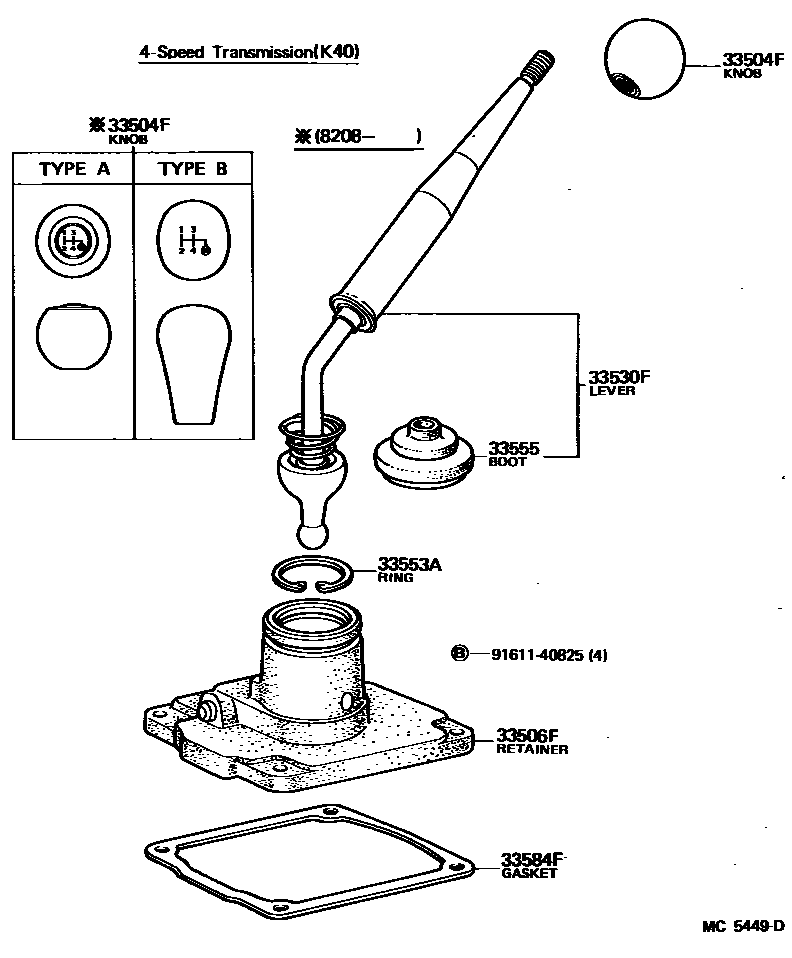

SHIFT LEVER & RETAINER

0001 1 0002 1 0003 1 0004 1

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-10020iKP6#..5F197802-198208

BLACK

main33504-10040iKP6#..5F198005-198208

URETHANE

main33504-12061iKP6#..SED..4F198005-198208

URETHANE

main33504-12080iKP6#..4F197802-198208

BLACK

main33504-14060-01iKP6#..4F..DLX; KP6#..STD..GEN198208-198409

BLACK,TYPE B,BLACK

main33504-24010-01iKP6#..5F198208-198409

BLACK,BLACK

main33542-12090iKP61..3FC198108-198304

main33542-12110-01iKP61..3FC198304-198409

BLACK,BLACK

33506FRETAINER SUB-ASSY, CONTROL SHIFT LEVER (FOR FLOOR SHIFT)

main33506-10011iKP6#..5F197802-198409

main33506-10020iKP6#..4F197802-198409

33530FLEVER ASSY, SHIFT (FOR FLOOR SHIFT)

main33503-10040iKP61..RHD..3FC198108-198208

main33503-10050iKP61..LHD..3FC198108-198208

main33503-10060iKP61..RHD..3FC198208-198304

main33503-10061iKP61..RHD..3FC198304-198409

main33503-10070iKP61..LHD..3FC198208-198304

main33503-10071iKP61..LHD..3FC198304-198409

main33530-10070iKP6#..LHD..4F198005-198409

main33530-10080iKP6#..LHD..5F198005-198409

main33530-10090iKP6#..RHD..4F198005-198409

main33530-10100iKP6#..RHD..5F198005-198409

33553ARING, SNAP (FOR SHIFT LEVER SPRING SHEET)

main90521-40124iKP6#..4F197802-198409

main90521-49001iKP6#..5F197802-198409

33555BOOT, SHIFT LEVER

main33555-10010iKP6#..5F197802-198409

main33555-12030iKP6#..4F197802-198409

main33555-12061iKP61..3FC198108-198409

33584FGASKET, CONTROL SHIFT LEVER RETAINER (FOR FLOOR SHIFT)

main33584-10010iKP6#..5F197802-198409

main33584-12030iKP6#..4F197802-198409

9161140825

main91611-40825

7 parts on this diagram · 4 diagrams in section
