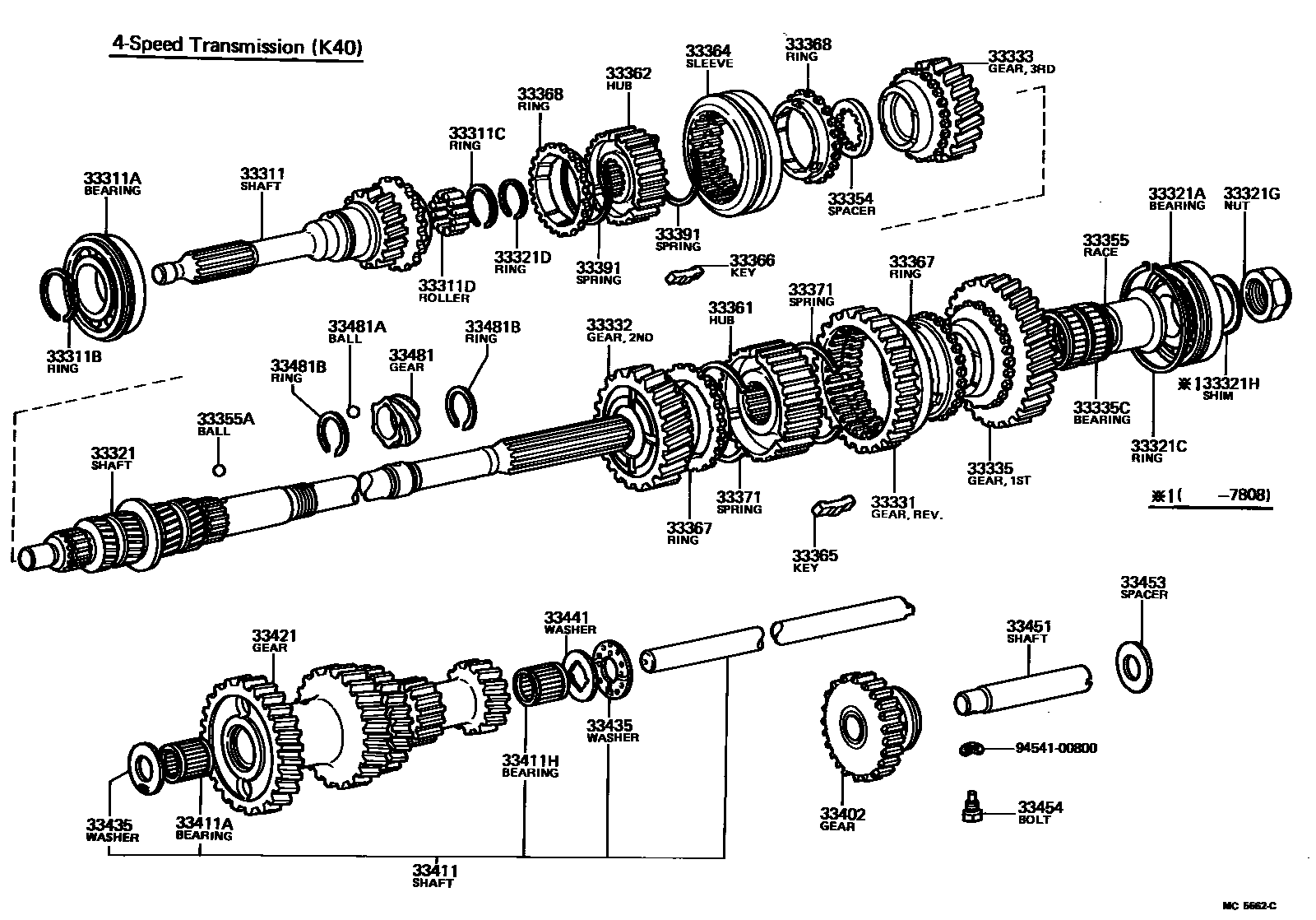

TRANSMISSION GEAR (MTM)
33311SHAFT, INPUT
33311ABEARING (FOR INPUT SHAFT FRONT)
33311BRING, SHAFT SNAP (FOR FRONT BEARING)
T=2.35-2.40
T=2.45-2.50
33311CRING, HOLE SNAP (FOR NEEDLE ROLLER)
33311DBEARING, INPUT SHAFT
33321ABEARING (FOR OUTPUT SHAFT REAR)
33321CRING, SHAFT SNAP (FOR OUTPUT SHAFT BEARING)
33321DRING, SHAFT SNAP (FOR CLUTCH HUB SET)
T=2.10-2.15,T=2.10-2.15
T=2.20-2.25,T=2.20-2.25
T=2.05-2.10,T=2.05-2.10
T=2.15-2.20,T=2.15-2.20
T=2.25-2.30,T=2.25-2.30
T=2.30-2.35,T=2.30-2.35
T=2.35-2.40,T=2.35-2.40
T=2.40-2.45,T=2.40-2.45
33321GNUT (FOR MANUAL TRANSMISSION OUTPUT SHAFT REAR SET)
33321HSHIM (FOR OUTPUT SHAFT REAR BEARING)
33335CBEARING, NEEDLE ROLLER(FOR 1ST GEAR)
33354SPACER, CLUTCH HUB
T=4.30-4.35
T=4.35-4.40
T=4.40-4.45
33355RACE, 1ST GEAR BEARING INNER
33355AKEY OR BALL, 1ST GEAR BEARING INNER RACE LOCK
33361HUB, TRANSMISSION CLUTCH, NO.1
33362HUB, TRANSMISSION CLUTCH, NO.2
33364SLEEVE, TRANSMISSION HUB, NO.2
33365KEY, SYNCHROMESH SHIFTING, NO.1
33366KEY, SYNCHROMESH SHIFTING, NO.2
33367RING, SYNCHRONIZER, NO.1
1ST GEAR
1ST GEAR
2ND GEAR
33368RING, SYNCHRONIZER, NO.2
33371SPRING, SYNCHROMESH SHIFTING KEY, NO.1
33391SPRING, SYNCHROMESH SHIFTING KEY, NO.2
33402GEAR SUB-ASSY, REVERSE IDLER
33411COUNTERSHAFT
33411ABEARING OR ROLLER(FOR COUNTER GEAR FRONT)
33411HBEARING OR ROLLER(FOR COUNTER GEAR REAR)
33421GEAR, COUNTER
33435WASHER, COUNTER GEAR CASE SIDE THRUST
T=1.71-1.81,RR
T=1.83-1.93,RR
T=1.95-2.05,RR
T=1.71-1.81,FR
T=1.95-2.05,RR
T=1.71-1.81,FR
T=1.71-1.81,FR
33441WASHER, COUNTER GEAR SIDE THRUST, NO.1
T=1.30-1.35
T=1.40-1.45
T=1.50-1.55
T=1.60-1.65
33451SHAFT, REVERSE IDLER GEAR
33453SPACER, REVERSE IDLER GEAR SHAFT
33454BOLT, SHAFT RETAINING
33481GEAR, SPEEDOMETER DRIVE (MTM)
N=5
N=6
N=6,DIFF R=3.417
33481AKEY OR BALL, SPEEDOMETER DRIVE GEAR (MTM)
33481BRING OR SPACER (FOR MTM SPEEDOMETER DRIVE GEAR)
9454100800
main94541-00800
42 parts on this diagram · 2 diagrams in section
