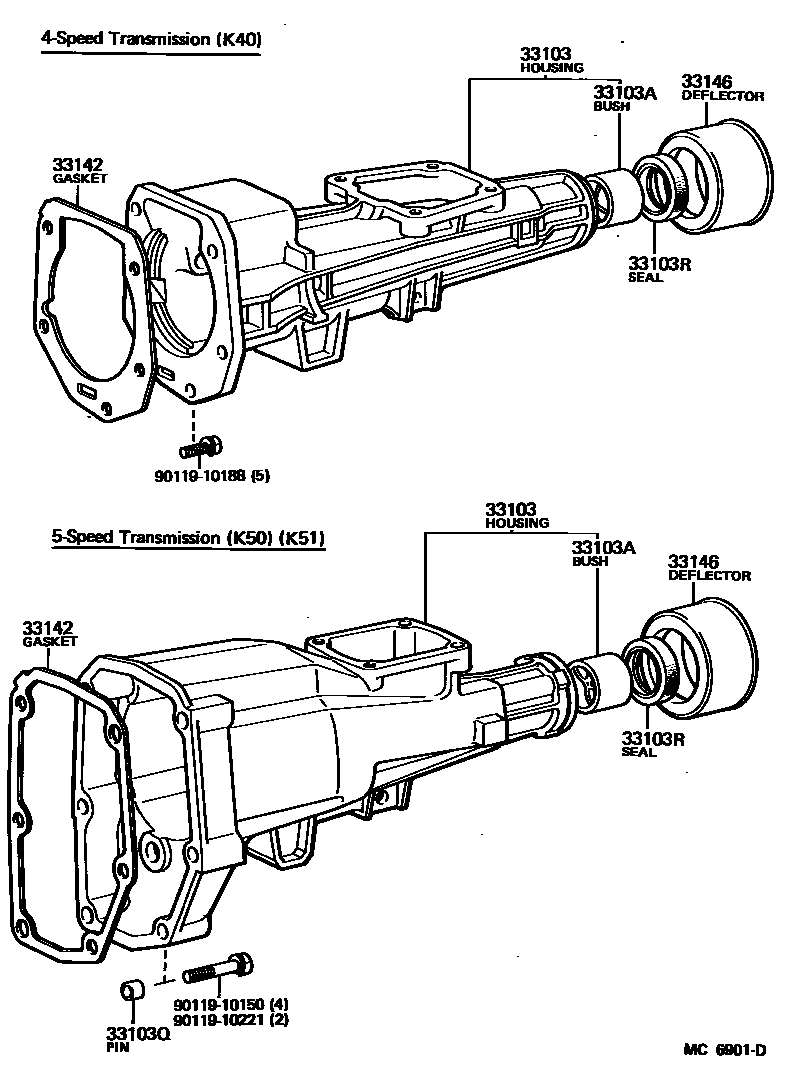

EXTENSION HOUSING (MTM)

33103HOUSING SUB-ASSY, EXTENSION(MTM)

main33103-10042iKP6#..5F197802-198409

main33103-12050iKP6#..4F197802-198409

33103ABUSH(FOR MANUAL TRANSMISSION EXTENSION HOUSING)

main90999-72022iKP6#..4F197802-198409

main90999-72024iKP6#..5F197802-198409

33103QPIN, RING(FOR EXTENSION HOUSING)

main90253-13017×2iKP6#..5F197802-198409

33103RSEAL, OIL(FOR MANUAL TRANSMISSION EXTENSION HOUSING)

main90311-32010iKP6#..MTM198109-198409

main90311-32086iKP6#..MTM197802-198109

33142GASKET, EXTENSION HOUSING(MTM)

main33142-10021iKP6#..5F197802-198409

main33142-12020iKP6#..4F197802-198409

33146DEFLECTOR, EXTENSION HOUSING DUST(MTM)

main33146-12010iKP6#..MTM197802-198409

9011910150

main90119-10150

9011910188

main90119-10188

9011910221

main90119-10221

9 parts on this diagram · 1 diagram in section
