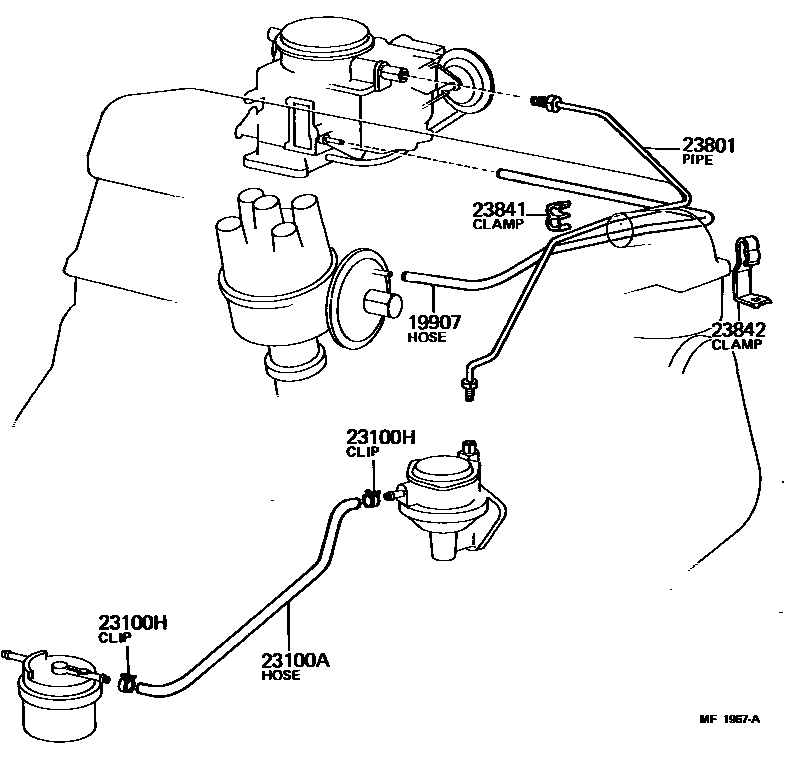

FUEL PIPE & CLAMP

0001 1 0002 1 0003 1

19907HOSE, VACUUM, NO.1

main95411-19960i2K,3KH..KP60,62; 4K..KP61..GEN197802-198409

*H,L=510

23100AHOSE, FUEL

main95332-06032i2K,3K#..KP6#197802-197903

L=320

main95332-06040i2K,3K#,4K#..KP6#197903-198409

*H,L=320

23100HCLIP(FOR FUEL HOSE)

main96132-30600×2i2K,3K#,4K#..KP6#197802-198409

23801PIPE OR HOSE SUB-ASSY, CARBURETOR FUEL, NO.1

main23801-13050i4K#..KP61198108-198308

main23801-13051i4KC..KP61;4K..KP61..GEN198308-198409

main23801-24011i2K,3K#..KP6#197802-197911

main23801-24060i2K,3K#..KP60,62197911-198308

main23801-24061i2K..KP60;4K..KP61..EUG198308-198409

23841CLAMP, FUEL PIPE(HOSE), NO.1

main90464-00082i2K,3KH..KP60,62197802-198405

main90464-00140i2K..KP60; 4K..KP61..GEN198405-198409

23842CLAMP, FUEL PIPE(HOSE), NO.2

main90461-08532i2K,3K#,4K#..KP6#197802-198409

6 parts on this diagram · 3 diagrams in section
