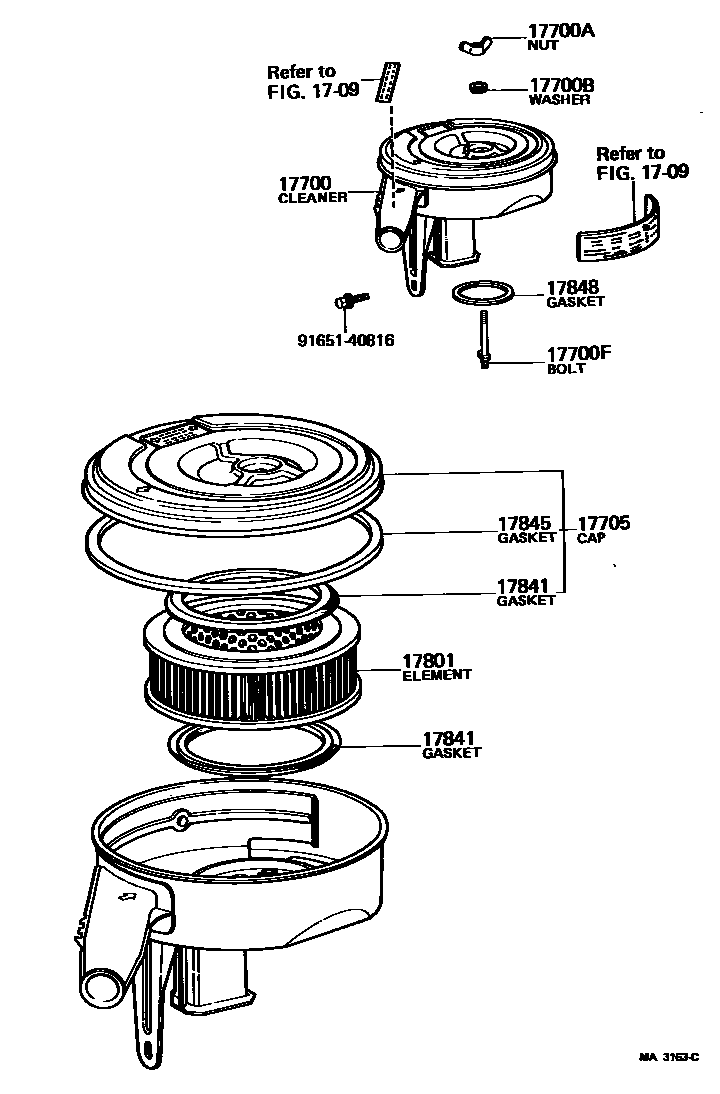

AIR CLEANER

0001 1 0002 1 0003 1 0004 1 0006 1 0007 1 0008 1

1709

17700CLEANER ASSY, AIR

main17700-12070i2K..KP60..EUG198208-198409

main17700-12080i2K..KP60..EUG198208-198409

W/HOT AIR INTAKE

main17700-13240i4KC..KP61198108-198208

main17700-13250i2K,4K..KP6#..GEN198208-198409

main17700-13280i2K,4K..KP6#..RHD..GEN198208-198304

W/HOT AIR INTAKE

main17700-13300i4K..KP61..MTM..EUG198108-198409

main17700-13320i4K..KP61..3FC..EUG198108-198409

main17700-13420i4KC..KP61198208-198409

main17700-24323i2K,3KH..KP6#..GEN197802-198012

main17700-24324i2K,3KH..KP60,62..GEN198012-198208

main17700-24332i2K..KP60..EUG197911-198208

main17700-24530i3KH..KP62..EUG197810-198102

main17700-24531i3KH..KP62..EUG198102-198108

main17700-24560i3KC..KP62197807-198102

main17700-24561i3KC..KP62198102-198108

main17700-24570i2K..KP60..EUG197908-197911

main17700-24600i2K,3KH..KP60,62..SED..RHD..GEN198012-198208

W/HOT AIR INTAKE

17700ANUT, WING(FOR AIR CLEANER)

main90175-06003i4K#..KP61198108-198208

main94271-00600i2K,3K#..KP60,62197802-198208

17700BWASHER, SEAL(FOR AIR CLEANER)

main90210-06023i2K,3K#..KP60,62197802-198208

17700FBOLT, STUD(FOR AIR CLEANER SETTING)

main90116-06131i2K,3K#..KP60,62197802-198208

main90116-06142i2K,4K#..KP6#198208-198409

17705CAP SUB-ASSY, AIR CLEANER

main17705-13011i2K..KP60198208-198409

main17705-13060i4K..KP61..EUG198108-198409

main17705-24160i2K,3KH..KP6#..GEN197802-197908

main17705-24163i2K,3KH..KP60,62..GEN197908-198208

main17705-24170i2K..KP60..EUG197802-197908

main17705-24290i3KH..KP62..EUG197810-197908

main17705-24291i3KH..KP62..EUG197908-198108

main17705-24310i3KC..KP62197807-197908

main17705-24311i3KC..KP62197908-198108

main17705-24320i2K,3KH..KP60,62..SED..RHD..GEN198005-198208

W/HOT AIR INTAKE

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-13010i4K#..KP61198108-198208

main17801-13020i2K,4K..KP6#..GEN198208-198409

main17801-24010i2K,3K#..KP60,62197802-198208

main17801-24030i2K,3KH..KP60,62..GEN198011-198208

DUST AREA

17841GASKET, FILTER ELEMENT

main17841-24020×2i2K,3K#..KP60,62197802-198208

sub17841-68010

17845GASKET, AIR CLEANER CAP

main17845-24010i2K,3K#..KP60,62197802-198208

17848GASKET, AIR CLEANER TO CARBURETOR

main17848-13010i4K#..KP61198108-198208

sub17848-10021

main90430-63187i2K,3K#..KP60,62197802-198208

9165140816

main91651-40816

11 parts on this diagram · 7 diagrams in section
