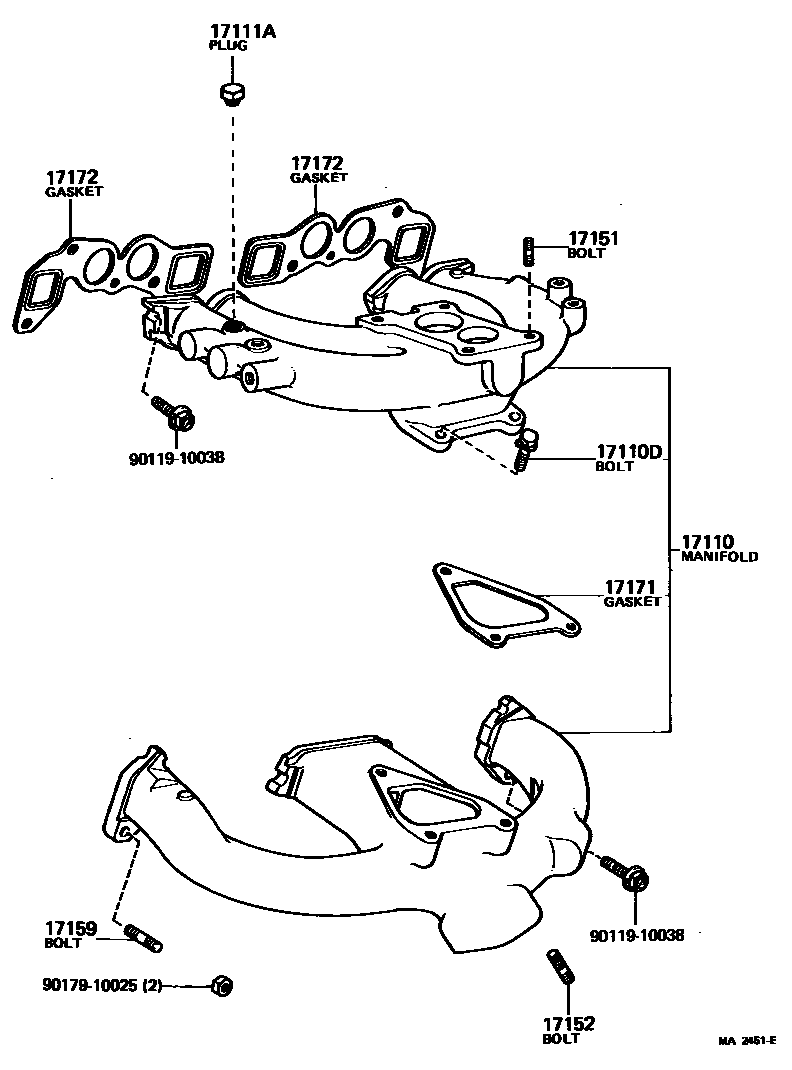

Toyota 121220 — MANIFOLD
17110MANIFOLD ASSY
17110DBOLT(FOR INTAKE MANIFOLD TO EXHAUST MANIFOLD)
17111APLUG, NO.1
17151BOLT, STUD(FOR MANIFOLD TO CARBURETOR)
17152BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)
17159BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
9011910038
9017910025
10 parts on this diagram · 3 diagrams in section
MANIFOLD for Toyota 121220
This section contains 10 genuine Toyota parts for the MANIFOLD system of the Toyota 121220. Key components include: MANIFOLD ASSY, BOLT(FOR INTAKE MANIFOLD TO EXHAUST MANIFOLD), PLUG, NO.1, BOLT, STUD(FOR MANIFOLD TO CARBURETOR), BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE).
