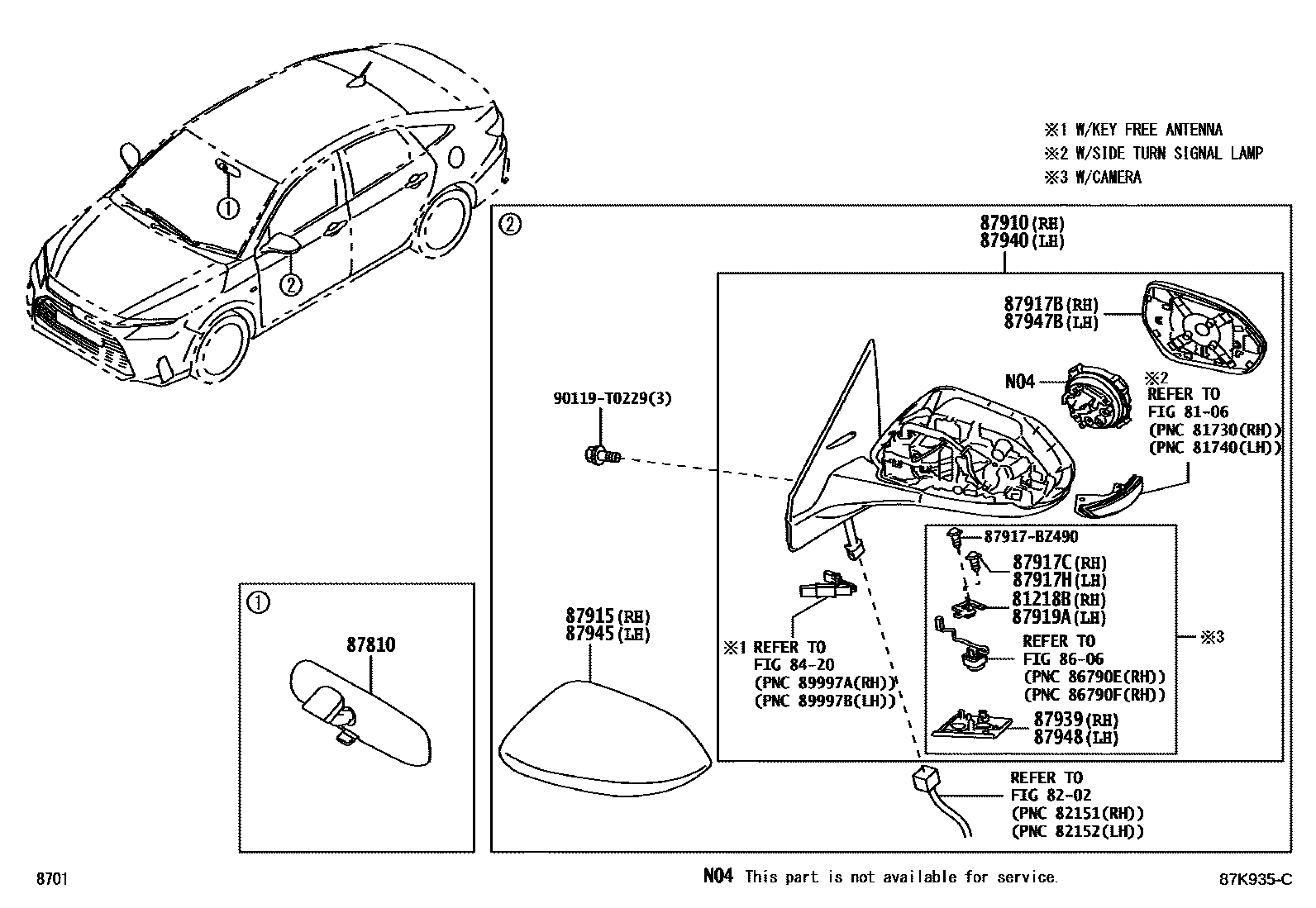

MIRROR
8106SIDE TURN SIGNAL LAMP & OUTER MIRROR LAMP
81218BBRACKET
GRADE PACKAGE-HI(TH); GRADE PACKAGE-HI(TH)&(INT+EXT+SPEAKER); SRI LANKA&GRADE PACKAGE-HI(SRI LANKA)
8202WIRING & CLAMP
8420WIRELESS DOOR LOCK
8606CAMERA & REAR MONITOR DISPLAY
87810MIRROR ASSY, INNER REAR VIEW
87910MIRROR ASSY, OUTER REAR VIEW, RH
NO PAINT REQ.; NO PAINT REQ.,BANGLADESH; NO PAINT REQ.,GRADE PACKAGE-HI(TH)&(INT+EXT+SPEAKER); NO PAINT REQ.,NEPAL; NO PAINT REQ.,SINGAPORE
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.; NO PAINT REQ.,LATIN NCAP PACKAGE
LATIN NCAP PACKAGE
NO PAINT REQ.; NO PAINT REQ.,MEXICO&W/O LATIN NCAP PACKAGE
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.,NEPAL&LATIN NCAP PACKAGE
NO PAINT REQ.,GRADE PACKAGE-LO(TH)
NO PAINT REQ.,BANGLADESH
NO PAINT REQ.,GRADE PACKAGE-HI(TH); NO PAINT REQ.,GRADE PACKAGE-HI(TH)&(INT+EXT+SPEAKER); NO PAINT REQ.,SRI LANKA&GRADE PACKAGE-HI(SRI LANKA)
GRADE PACKAGE-HI(TH); GRADE PACKAGE-HI(TH)&(INT+EXT+SPEAKER); SRI LANKA&GRADE PACKAGE-HI(SRI LANKA)
NO PAINT REQ.; NO PAINT REQ.,VENEZUELA&LATIN NCAP PACKAGE; NO PAINT REQ.,VENEZUELA&W/O LATIN NCAP PACKAGE
NO PAINT REQ.,LATIN NCAP PACKAGE
LATIN NCAP PACKAGE
NO PAINT REQ.,LATIN NCAP PACKAGE
LATIN NCAP PACKAGE
NO PAINT REQ.,MEXICO
NO PAINT REQ.,MEXICO&LATIN NCAP PACKAGE
MEXICO&LATIN NCAP PACKAGE
NO PAINT REQ.,MEXICO
MEXICO
87915COVER, OUTER MIRROR, RH
PAINT REQ.
PAINT REQ.
87917BMIRROR, OUTER REAR VIEW, RH
main87902-02110iNGC100; NGC102,NYC100..LHD..H..GEN; NGC102,NYC100..RHD..CVT..(H,M)..GEN; NGC102,NYC100..RHD..CVT..H..GEN; NGC102..5F..H;NGC102..LHD..(L,M)..GEN;NGC100,101..(L,M)..(GEN,PHL,TH); NGC102..LHD..H..GEN; NGC102..RHD..M..GEN202208
BANGLADESH; GRADE PACKAGE-HI(TH)&(INT+EXT+SPEAKER); MEXICO&W/O LATIN NCAP PACKAGE; NEPAL; SINGAPORE; VENEZUELA&W/O LATIN NCAP PACKAGE
main87902-02120iNGC100; NGC101..H..GEN;NGC102..RHD..CVT..GEN;NGC102..LHD..H..(GEN,PHL); NGC101..L;NGC101..LHD..M..GEN;NGC102..LHD..(L,M)..GEN; NGC102..LHD..M..GEN202208-202308
GRADE PACKAGE-HI(TH); LATIN NCAP PACKAGE; MEXICO&LATIN NCAP PACKAGE; SRI LANKA&GRADE PACKAGE-HI(SRI LANKA)
main87902-BZ050iNGC100; NGC101..L;NGC101..LHD..M..GEN;NGC102..LHD..(L,M)..GEN; NGC102..LHD..M..GEN; NGC102..RHD..CVT..GEN;NGC102..LHD..H..(GEN,PHL);NGC101,NYC100..(G,H)..(GEN,PHL,TH)202309
GRADE PACKAGE-HI(TH); GRADE PACKAGE-HI(TH)&(INT+EXT+SPEAKER); LATIN NCAP PACKAGE; MEXICO&LATIN NCAP PACKAGE; SRI LANKA&GRADE PACKAGE-HI(SRI LANKA)
87917CSCREW, OUTER MIRROR
GRADE PACKAGE-HI(TH); GRADE PACKAGE-HI(TH)&(INT+EXT+SPEAKER); SRI LANKA&GRADE PACKAGE-HI(SRI LANKA)
87917HSCREW, OUTER MIRROR, NO.2
GRADE PACKAGE-HI(TH); GRADE PACKAGE-HI(TH)&(INT+EXT+SPEAKER); SRI LANKA&GRADE PACKAGE-HI(SRI LANKA)
87919ABRACKET, OUTER MIRROR
GRADE PACKAGE-HI(TH); GRADE PACKAGE-HI(TH)&(INT+EXT+SPEAKER); SRI LANKA&GRADE PACKAGE-HI(SRI LANKA)
87939COVER, OUTER MIRROR HOLE, RH
GRADE PACKAGE-HI(TH); GRADE PACKAGE-HI(TH)&(INT+EXT+SPEAKER); SRI LANKA&GRADE PACKAGE-HI(SRI LANKA)
87940MIRROR ASSY, OUTER REAR VIEW, LH
NO PANIT REQ.; NO PANIT REQ.,BANGLADESH; NO PANIT REQ.,GRADE PACKAGE-HI(TH)&(INT+EXT+SPEAKER); NO PANIT REQ.,NEPAL; NO PANIT REQ.,SINGAPORE
NO PANIT REQ.
NO PANIT REQ.
NO PANIT REQ.
NO PANIT REQ.
NO PANIT REQ.; NO PANIT REQ.,LATIN NCAP PACKAGE
LATIN NCAP PACKAGE
NO PANIT REQ.; NO PANIT REQ.,MEXICO&W/O LATIN NCAP PACKAGE
NO PANIT REQ.
NO PANIT REQ.
NO PANIT REQ.,NEPAL&LATIN NCAP PACKAGE
NO PANIT REQ.,GRADE PACKAGE-LO(TH)
NO PANIT REQ.,BANGLADESH
NO PANIT REQ.,GRADE PACKAGE-HI(TH); NO PANIT REQ.,GRADE PACKAGE-HI(TH)&(INT+EXT+SPEAKER); NO PANIT REQ.,SRI LANKA&GRADE PACKAGE-HI(SRI LANKA)
GRADE PACKAGE-HI(TH); GRADE PACKAGE-HI(TH)&(INT+EXT+SPEAKER); SRI LANKA&GRADE PACKAGE-HI(SRI LANKA)
NO PANIT REQ.; NO PANIT REQ.,VENEZUELA&LATIN NCAP PACKAGE; NO PANIT REQ.,VENEZUELA&W/O LATIN NCAP PACKAGE
NO PANIT REQ.,LATIN NCAP PACKAGE
LATIN NCAP PACKAGE
NO PANIT REQ.,LATIN NCAP PACKAGE
LATIN NCAP PACKAGE
NO PANIT REQ.,MEXICO
NO PANIT REQ.,MEXICO&LATIN NCAP PACKAGE
MEXICO&LATIN NCAP PACKAGE
NO PANIT REQ.,MEXICO
MEXICO
87945COVER, OUTER MIRROR, LH
PAINT REQ.
PAINT REQ.
87947BMIRROR, OUTER REAR VIEW, LH
main87907-02080iNGC100; NGC102,NYC100..LHD..H..GEN; NGC102,NYC100..RHD..CVT..(H,M)..GEN; NGC102,NYC100..RHD..CVT..H..GEN; NGC102..5F..H;NGC102..LHD..(L,M)..GEN;NGC100,101..(L,M)..(GEN,PHL,TH); NGC102..LHD..H..GEN; NGC102..RHD..M..GEN202208
BANGLADESH; GRADE PACKAGE-HI(TH)&(INT+EXT+SPEAKER); MEXICO&W/O LATIN NCAP PACKAGE; NEPAL; SINGAPORE; VENEZUELA&W/O LATIN NCAP PACKAGE
main87907-02090iNGC100; NGC101..H..GEN;NGC102..RHD..CVT..GEN;NGC102..LHD..H..(GEN,PHL); NGC101..L;NGC101..LHD..M..GEN;NGC102..LHD..(L,M)..GEN; NGC102..LHD..M..GEN202208-202308
GRADE PACKAGE-HI(TH); LATIN NCAP PACKAGE; MEXICO&LATIN NCAP PACKAGE; SRI LANKA&GRADE PACKAGE-HI(SRI LANKA)
main87907-BZ050iNGC100; NGC101..L;NGC101..LHD..M..GEN;NGC102..LHD..(L,M)..GEN; NGC102..LHD..M..GEN; NGC102..RHD..CVT..GEN;NGC102..LHD..H..(GEN,PHL);NGC101,NYC100..(G,H)..(GEN,PHL,TH)202309
GRADE PACKAGE-HI(TH); GRADE PACKAGE-HI(TH)&(INT+EXT+SPEAKER); LATIN NCAP PACKAGE; MEXICO&LATIN NCAP PACKAGE; SRI LANKA&GRADE PACKAGE-HI(SRI LANKA)
87948COVER, OUTER MIRROR HOLE, LH
GRADE PACKAGE-HI(TH); GRADE PACKAGE-HI(TH)&(INT+EXT+SPEAKER); SRI LANKA&GRADE PACKAGE-HI(SRI LANKA)
87917BZ490ESCUTCHEON
main87917-BZ490
90119T0229
main90119-T0229
19 parts on this diagram · 1 diagram in section
