Toyota 11G210 — WINDSHIELD WASHER

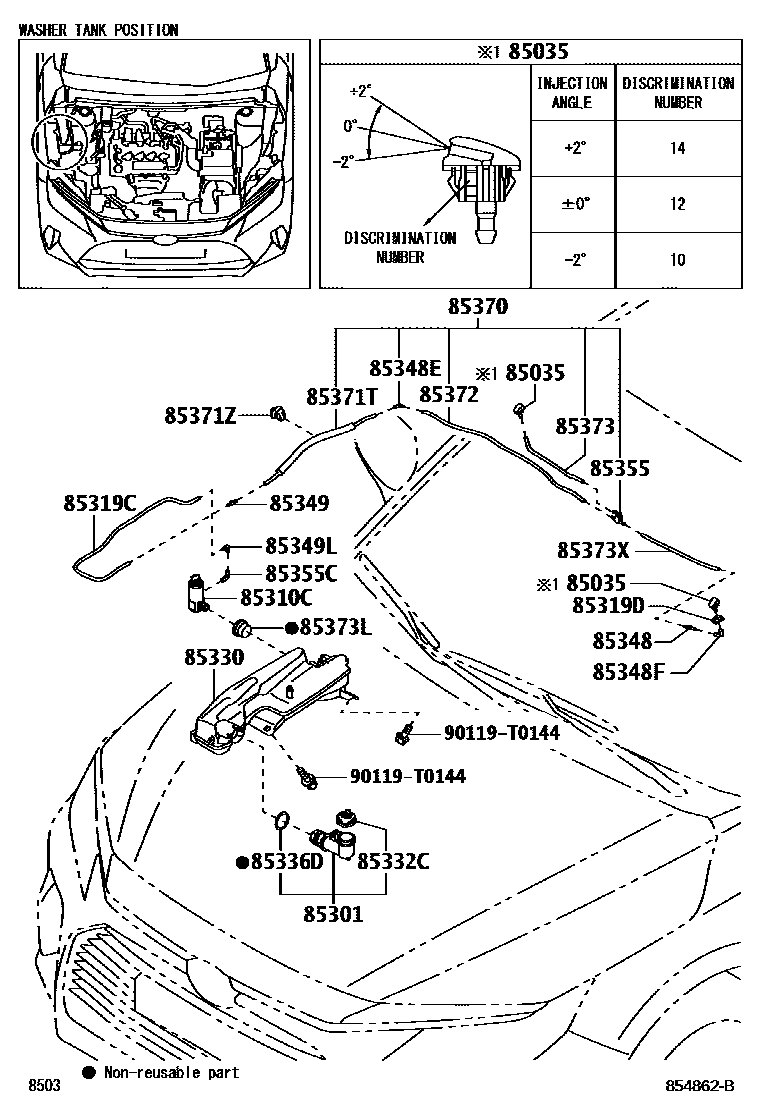

Parts diagram

85035NOZZLE SUB-ASSY, WASHER

85301INLET SUB-ASSY, WASHER

85310CMOTOR & PUMP ASSY, WASHER

85319CHOSE, WASHER

85319DPACKING, FRONT WASHER

85330JAR ASSY, WINDSHIELD WASHER

85332CCAP, FRONT WASHER TANK

85336DPACKING, WINDSHIELD WASHER JAR

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

85348EJOINT, WINDSHIELD WASHER ELBOW, NO.2

85348FJOINT, WINDSHIELD WASHER ELBOW, NO.3

85349JOINT, WINDSHIELD WASHER HOSE, NO.1

85349LJOINT, WINDSHIELD WASHER ELBOW, NO.1

85355VALVE, WINDSHIELD WASHER HOSE

85355CJAR, WASHER, C

85370HOSE ASSY, WINDSHIELD WASHER

85371THOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT)

85371ZCLAMP, WASHER HOSE

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

85373LGROMMET, WASHER

85373XHOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE), NO.2

90119T0144

23 parts on this diagram · 2 diagrams in section

WINDSHIELD WASHER for Toyota 11G210

This section contains 24 genuine Toyota parts for the WINDSHIELD WASHER system of the Toyota 11G210. Key components include: NOZZLE SUB-ASSY, WASHER, INLET SUB-ASSY, WASHER, MOTOR & PUMP ASSY, WASHER, HOSE, WASHER, PACKING, FRONT WASHER.
