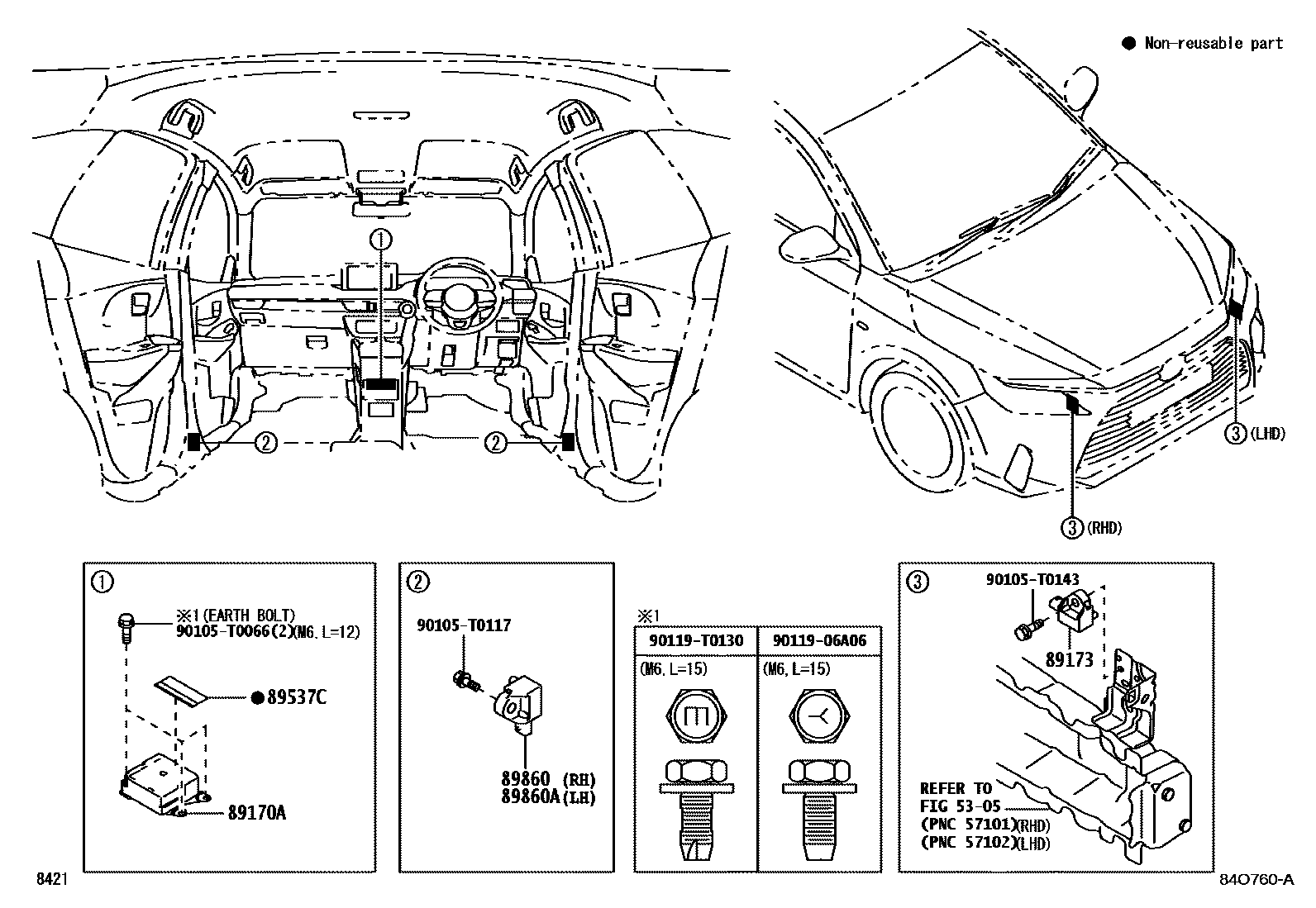

AIR BAG
5305FLOOR SIDE MEMBER
89170ACOMPUTER ASSY, AIRBAG
main89170-BZ830iNGC101..CVT..L; NGC101..LHD..CVT..M..GEN; NGC101..RHD..H; NGC101..RHD..M;NGC102..RHD..GEN;NGC101,102..M..(GCC,PHL)202208
FIJI; NEPAL; VANUATU
main89170-BZ850iNGC101..H,L;NGC102..H..GCC;NGC102..LHD..GEN;NGC101..LHD..M..GEN;NGC100,102..MA,PHL,TH; NGC102..RHD..CVT..GEN; NGC102..RHD..CVT..H..GEN; NGC102..RHD..M..GEN202208
BANGLADESH; BRUNEI; INDONESIA&SAFETY PACKAGE; SINGAPORE
UNITED ARAB EMIRATES
UNITED ARAB EMIRATES
89173SENSOR, AIRBAG, FRONT
89860SENSOR ASSY, SIDE AIRBAG, RH
main89860-B1140iNGC101..H,L;NGC102..H..GCC;NGC102..LHD..GEN;NGC101..LHD..M..GEN;NGC100,102..MA,PHL,TH; NGC102..RHD..CVT..GEN; NGC102..RHD..CVT..H..GEN; NGC102..RHD..M..GEN202208
BANGLADESH; BRUNEI; INDONESIA&SAFETY PACKAGE; SINGAPORE
89860ASENSOR ASSY, SIDE AIRBAG, LH
main89860-B1140iNGC101..H,L;NGC102..H..GCC;NGC102..LHD..GEN;NGC101..LHD..M..GEN;NGC100,102..MA,PHL,TH; NGC102..RHD..CVT..GEN; NGC102..RHD..CVT..H..GEN; NGC102..RHD..M..GEN202208
BANGLADESH; BRUNEI; INDONESIA&SAFETY PACKAGE; SINGAPORE
90105T0066
main90105-T0066
90105T0117
main90105-T0117
90105T0143
main90105-T0143
9011906A06
main90119-06A06
90119T0130
main90119-T0130
11 parts on this diagram · 1 diagram in section
