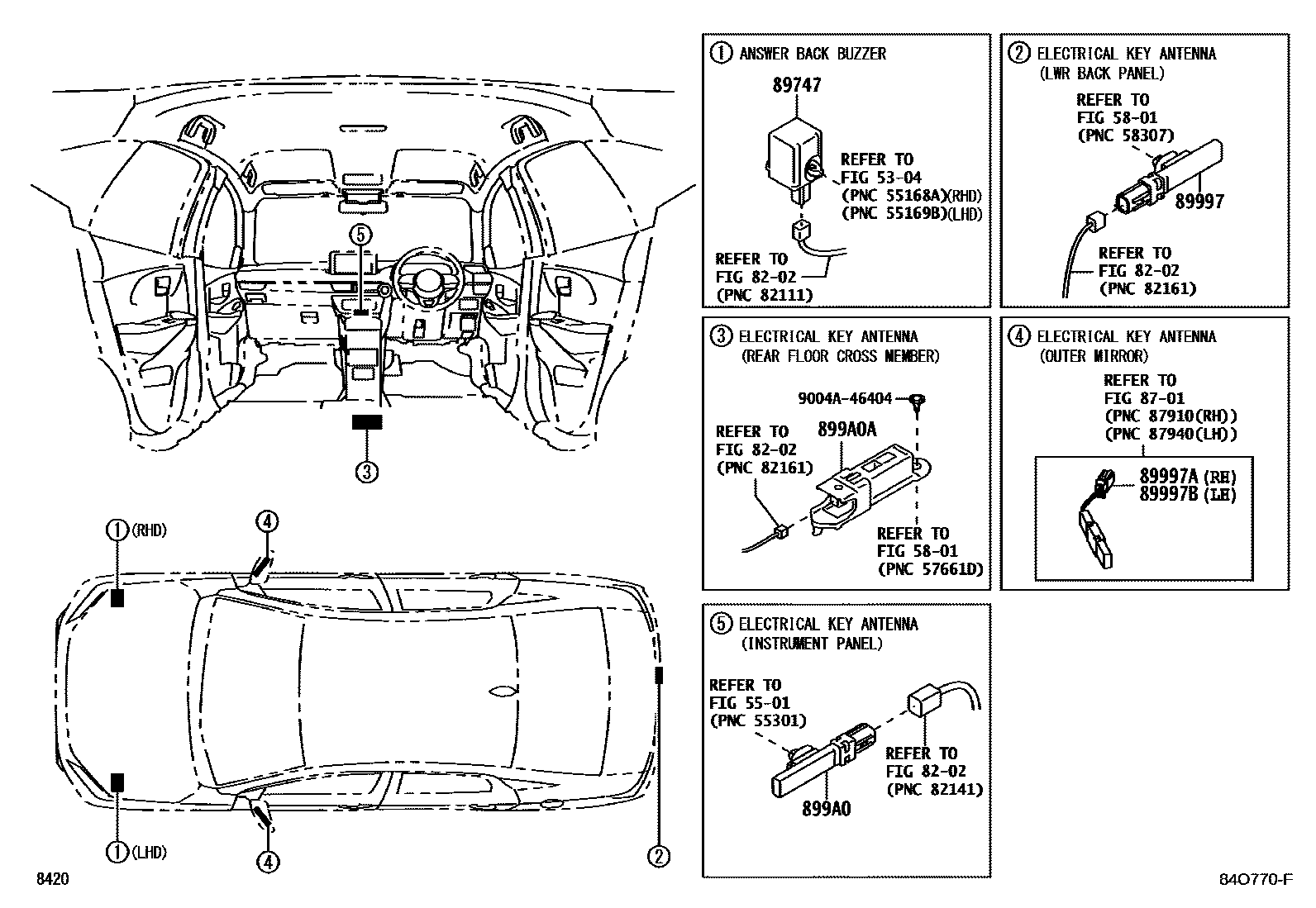

WIRELESS DOOR LOCK

5304FRONT FENDER APRON & DASH PANEL

→ Go to FIG 53-04

5501INSTRUMENT PANEL & GLOVE COMPARTMENT

→ Go to FIG 55-01

5801FLOOR PAN & LOWER BACK PANEL

→ Go to FIG 58-01

8202WIRING & CLAMP

→ Go to FIG 82-02

8701MIRROR

→ Go to FIG 87-01

89747BUZZER, WIRELESS DOOR LOCK

main89747-30040iNGC10#202208

89997ANTENNA, ELECTRICAL KEY

main89997-BZ060iNGC102..MA,PHL;NGC101,102..H..GCC;NGC102..LHD..(H,M)..GEN;NGC102..RHD..CVT..H..GEN;NGC100,101..(H,M)..(GEN,PHL,TH); NGC102..RHD..M..GEN202208

SINGAPORE

89997AANTENNA, ELECTRICAL KEY, NO.2

main89997-BZ020iNGC101,102..H..GCC;NGC102..RHD..CVT..H..GEN;NGC102..LHD..(H,M)..(GEN,PHL);NGC100,101,NYC100..(G,H,M)..(GEN,PHL,TH); NGC102..RHD..M..GEN202208

RH; SINGAPORE,RH

main89997-BZ140iNGC102..MA202303

RH

89997BANTENNA, ELECTRICAL KEY, NO.3

main89997-BZ020iNGC101,102..H..GCC;NGC102..RHD..CVT..H..GEN;NGC102..LHD..(H,M)..(GEN,PHL);NGC100,101,NYC100..(G,H,M)..(GEN,PHL,TH); NGC102..RHD..M..GEN202208

LH; SINGAPORE,LH

main89997-BZ140iNGC102..MA202303

LH

899A0ANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.1

main89997-BZ010iNGC102..MA,PHL;NGC101,102..H..GCC;NGC102..LHD..(H,M)..GEN;NGC102..RHD..CVT..H..GEN;NGC100,101..(H,M)..(GEN,PHL,TH); NGC102..RHD..M..GEN202208

SINGAPORE

899A0AANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.2

main89997-BZ150iNGC102..MA,PHL;NGC101,102..H..GCC;NGC102..LHD..(H,M)..GEN;NGC102..RHD..CVT..H..GEN;NGC100,101..(H,M)..(GEN,PHL,TH); NGC102..RHD..M..GEN202208

SINGAPORE

9004A46404

main9004A-46404

12 parts on this diagram · 1 diagram in section
