Toyota 11G210 — CLEARANCE & BACK SONAR

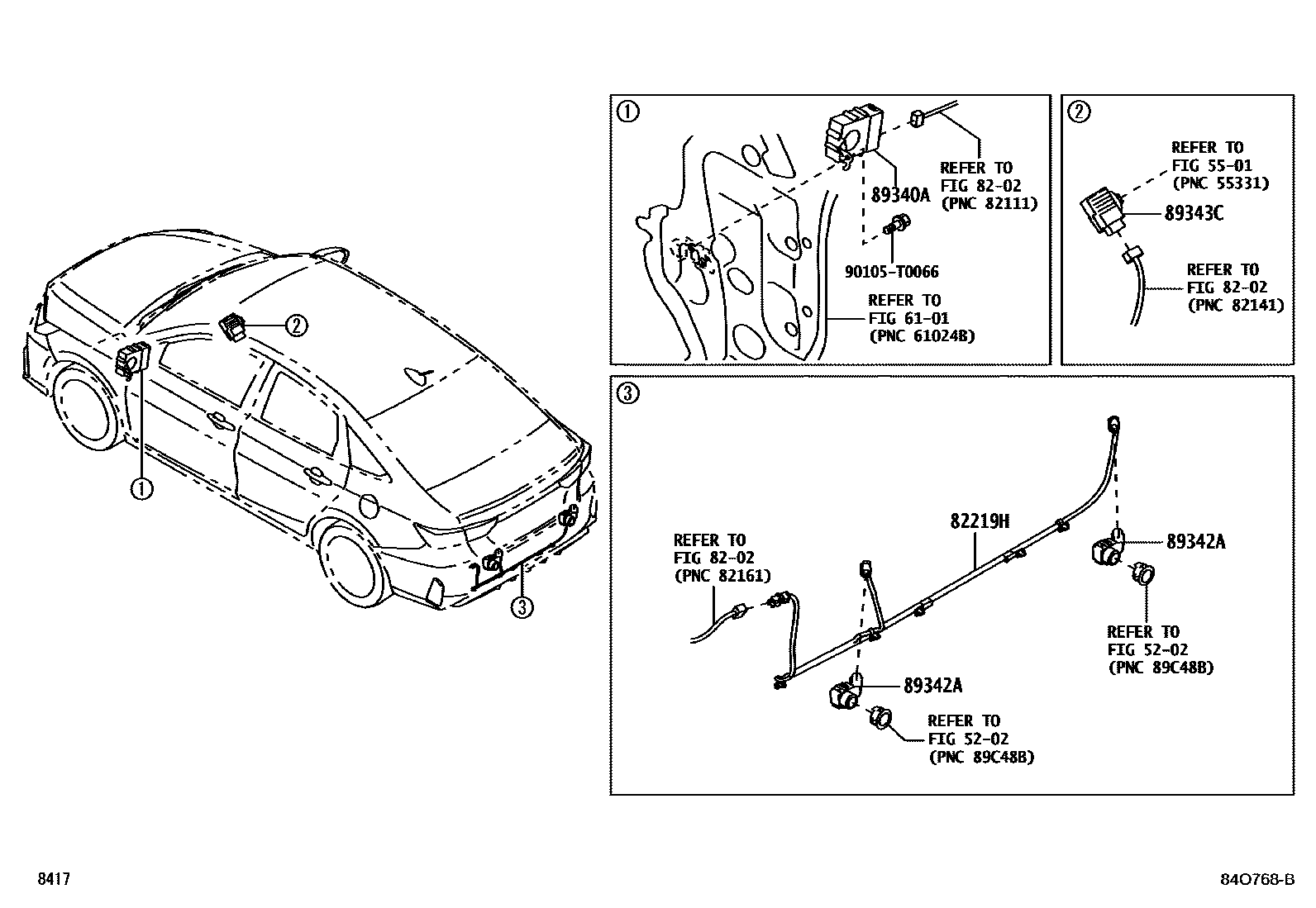

Parts diagram

5202REAR BUMPER & BUMPER STAY

→ Go to FIG 52-02

5501INSTRUMENT PANEL & GLOVE COMPARTMENT

→ Go to FIG 55-01

6101SIDE MEMBER

→ Go to FIG 61-01

8202WIRING & CLAMP

→ Go to FIG 82-02

82219HWIRE, SENSOR

89340ACOMPUTER ASSY, CLEARANCE WARNING

89342ASENSOR, ULTRASONIC, REAR CENTER

89343CBUZZER, CLEARANCE WARNING, NO.1

90105T0066

9 parts on this diagram · 2 diagrams in section

CLEARANCE & BACK SONAR for Toyota 11G210

This section contains 12 genuine Toyota parts for the CLEARANCE & BACK SONAR system of the Toyota 11G210. Key components include: FRONT BUMPER & BUMPER STAY, REAR BUMPER & BUMPER STAY, INSTRUMENT PANEL & GLOVE COMPARTMENT, SIDE MEMBER, WIRING & CLAMP.
