Toyota VIOS/YARIS/YARISATIV11G — ABS & VSC

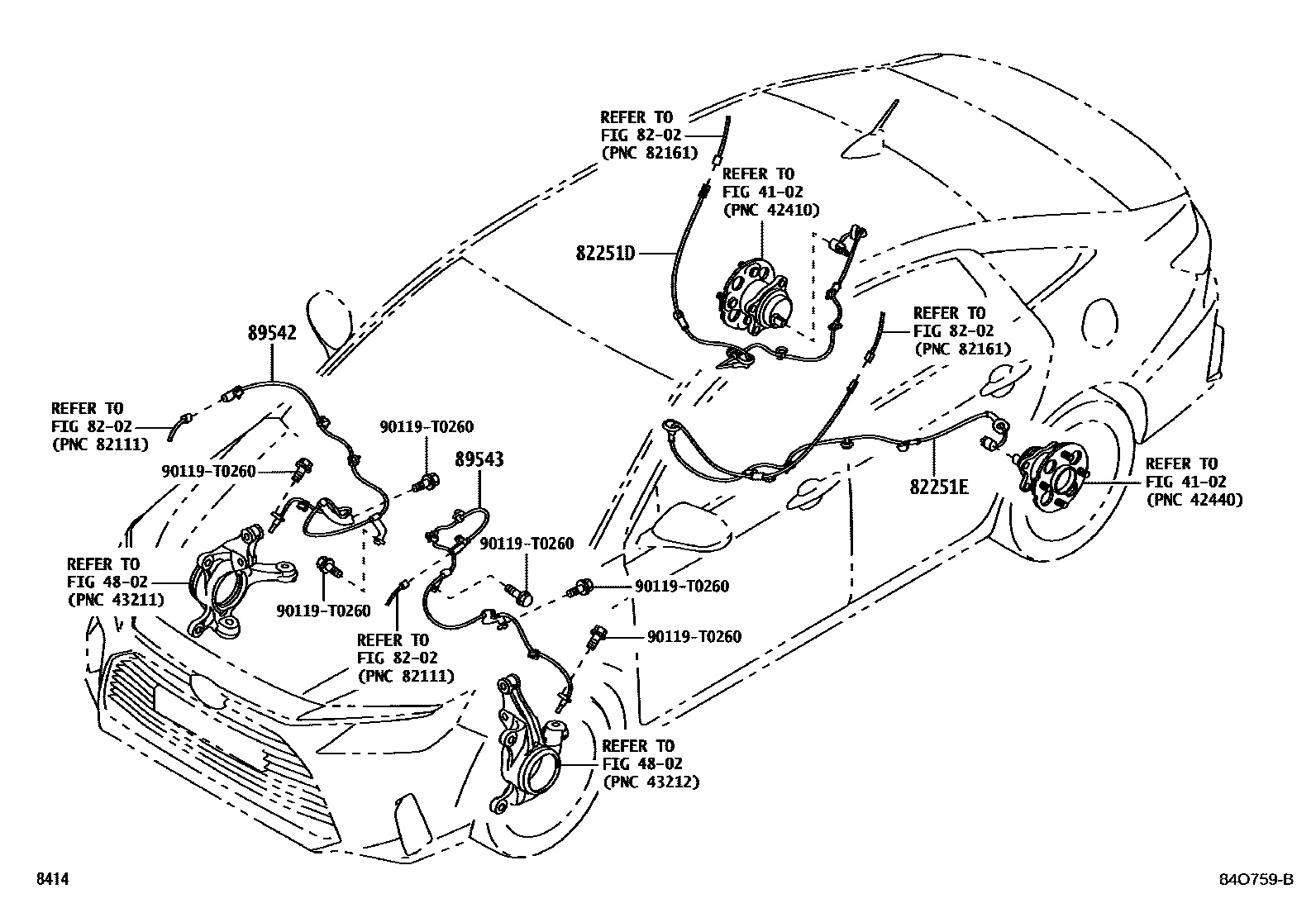

Parts diagram

4102REAR AXLE SHAFT & HUB

→ Go to FIG 41-02

4802FRONT AXLE ARM & STEERING KNUCKLE

→ Go to FIG 48-02

8202WIRING & CLAMP

→ Go to FIG 82-02

82251DWIRE, SPEED SENSOR, RH

82251EWIRE, SPEED SENSOR, LH

89542SENSOR, SPEED, FRONT RH

89543SENSOR, SPEED, FRONT LH

90119T0260

8 parts on this diagram · 3 diagrams in section

ABS & VSC for Toyota VIOS/YARIS/YARISATIV11G

This section contains 11 genuine Toyota parts for the ABS & VSC system of the Toyota VIOS/YARIS/YARISATIV11G. Key components include: REAR AXLE SHAFT & HUB, BRAKE PEDAL & BRACKET, FRONT AXLE ARM & STEERING KNUCKLE, WIRING & CLAMP, WIRE, SPEED SENSOR, RH.
