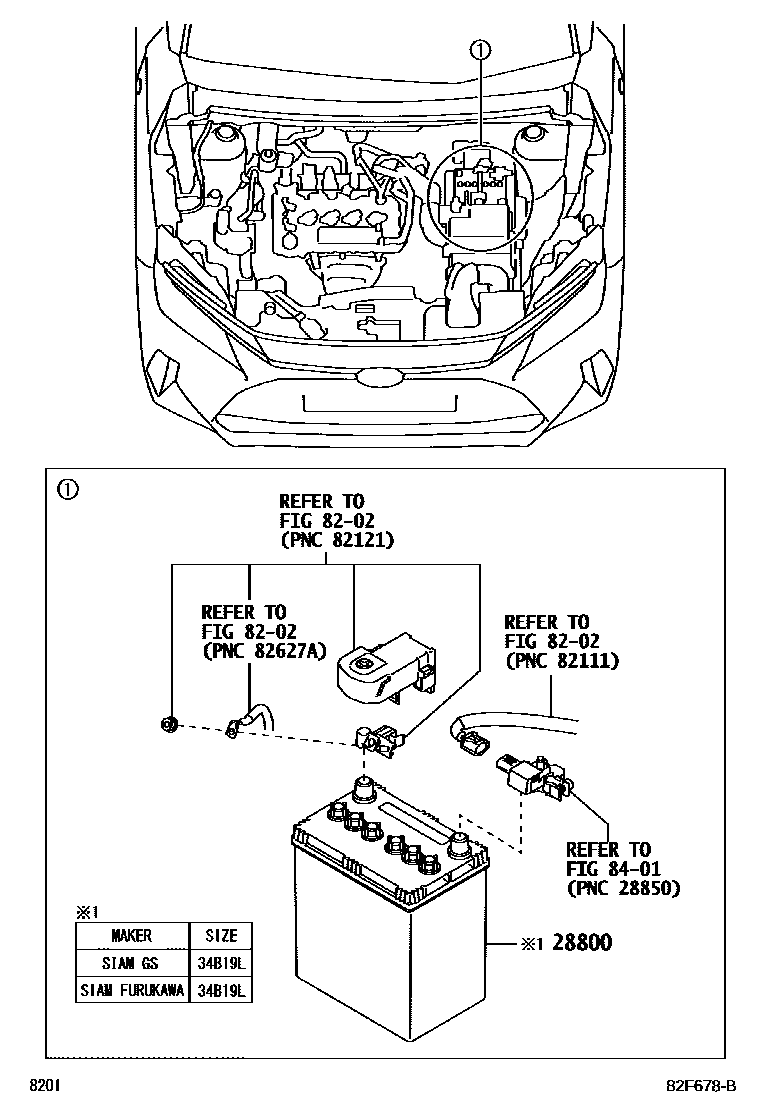

BATTERY & BATTERY CABLE

0001 1 0002 1 0003 1

28800BATTERY

main28800-BZ390i3NRVE..NGC100202208

N-55(SIAM GS)

main28800-BZ400i1NRVE,2NRVE..NGC101,102..GEN,PHL202208

34B19L(SIAM GS)

main28800-BZ410i1NRVE,2NRVE..NGC101,102..GCC202208

34B19L(SIAM GS)

main28800-BZ500i3NRVE..NGC100202208

N-55(SIAM FURUKAWA)

main28800-BZ510i1NRVE,2NRVE..NGC101,102..GEN,PHL202208

34B19L

main28800-BZ520i1NRVE,2NRVE..NGC101,102..GCC202208

34B19L

main28800-BZ550i2NRVE..NGC102..MA202303

34B19L

8202WIRING & CLAMP

→ Go to FIG 82-02

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

3 parts on this diagram · 3 diagrams in section
