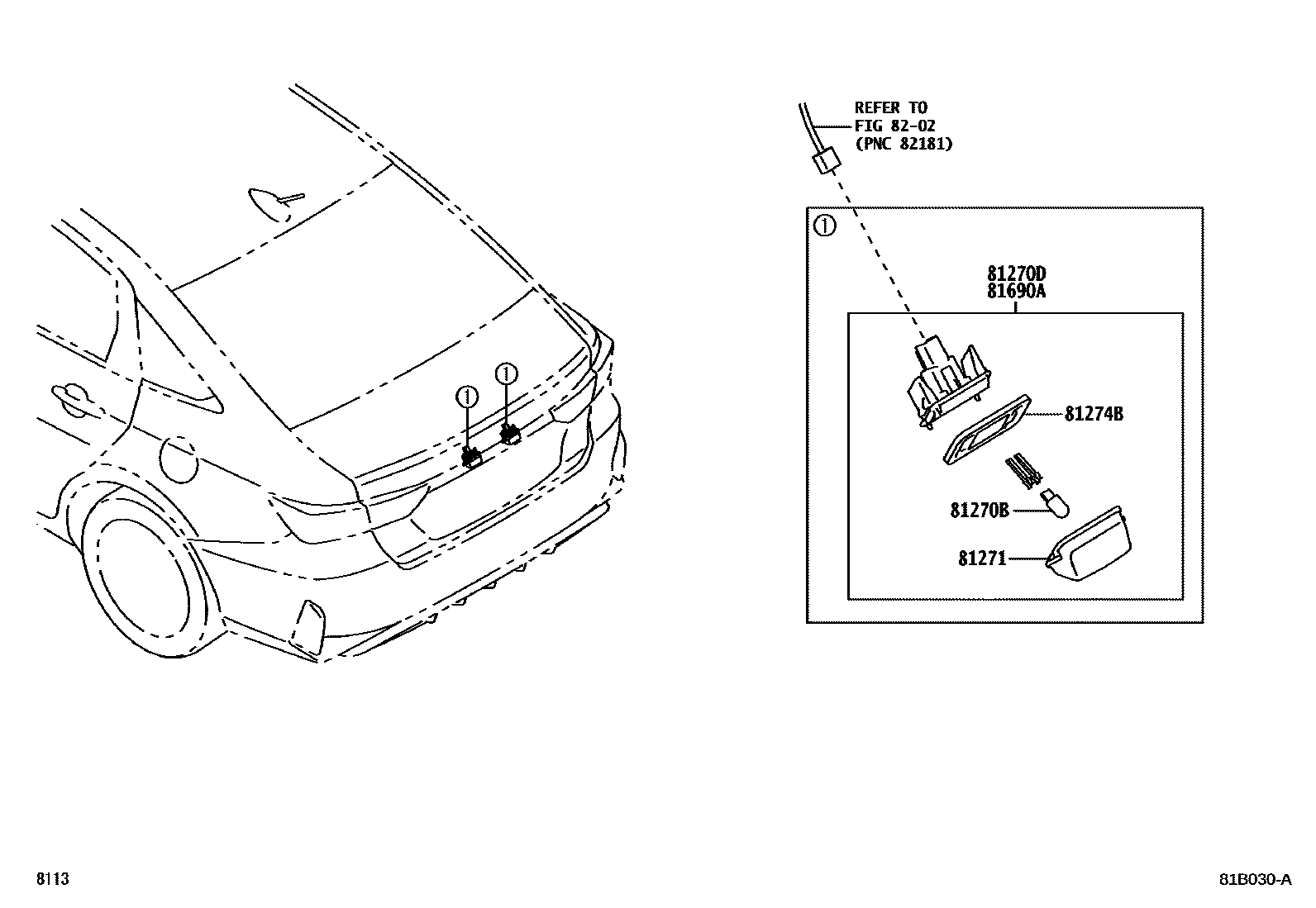

REAR LICENSE PLATE LAMP

81270BBULB (FOR LICENSE PLATE LAMP)

main90981-11013×2iNGC10#202208

12V 5W T10

81270DLAMP ASSY, LICENSE PLATE, RH

main81270-0D120iNGC10#202208

81271LENS, LICENSE PLATE LAMP

main81271-0D120×2iNGC10#202208

81274BPACKING, LICENSE PLATE LAMP

main81274-02130×2iNGC10#202208

81690ALAMP ASSY, LICENSE PLATE, LH

main81270-0D120iNGC10#202208

8202WIRING & CLAMP

→ Go to FIG 82-02

6 parts on this diagram · 1 diagram in section
