HEADLAMP

8110ALENS SUB-ASSY, HEADLAMP, RH

main8110A-BZB30iNGC100202208

BANGLADESH

main8110A-BZB40iNGC101..LHD..CVT..M..GEN202208

MEXICO

main8110A-BZC10iNGC102..MA202303

8110BLENS SUB-ASSY, HEADLAMP, LH

main8110B-BZB30iNGC100202208

BANGLADESH

main8110B-BZB40iNGC101..LHD..CVT..M..GEN202208

MEXICO

main8110B-BZC10iNGC102..MA202303

81110HEADLAMP ASSY, RH

main81110-BZB30iNGC101,102..GCC;NGC101,102..LHD..L202208

main81110-BZB40iNGC102,NYC100..LHD..(H,M)..GEN202208

MEXICO

main81110-BZB60iNGC100202208

GRADE PACKAGE-LO(TH)

main81110-BZB70iNGC102,NYC100..RHD..CVT..GEN202208

main81110-BZB80iNGC100,NYC100..TH;NGC101..RHD..(H,M)202208

main81110-BZC10iNGC102..MA202303

main81110-BZC90iNGC102..5F..L202208

ECUADOR

main81110-BZD00iNGC101..LHD..CVT..M..GEN202208

VANUATU

main81110-BZB50iNGC101..LHD..CVT..M..GEN202208

BANGLADESH

81116CBRACKET, HEADLAMP, RH

main81116-BZB30iNGC10#,NYC100..THP202208

main81116-BZC10iNGC102..MA202303

81119SCREW, HEADLAMP

main81195-BZ030×2iNGC10#202208

81132BGASKET, HEADLAMP LENS

main81132-BZB30iNGC10#202208

81145GUNIT, HEADLAMP W/GASKET, RH

main81145-BZB30iNGC101,102..GCC;NGC101,102..LHD..L202208

main81145-BZB40iNGC102,NYC100..LHD..(H,M)..GEN202208

MEXICO

main81145-BZB60iNGC100202208

GRADE PACKAGE-LO(TH)

main81145-BZB70iNGC102,NYC100..RHD..CVT..GEN202208

main81145-BZB80iNGC100,NYC100..TH;NGC101..RHD..(H,M)202208

main81145-BZC10iNGC102..MA202303

main81145-BZC90iNGC102..5F..L202208

ECUADOR

main81145-BZD00iNGC101..LHD..CVT..M..GEN202208

VANUATU

main81145-BZB50iNGC101..LHD..CVT..M..GEN202208

BANGLADESH

81150HEADLAMP ASSY, LH

main81150-BZB30iNGC101,102..GCC;NGC101,102..LHD..L202208

main81150-BZB40iNGC102,NYC100..LHD..(H,M)..GEN202208

MEXICO

main81150-BZB60iNGC100202208

GRADE PACKAGE-LO(TH)

main81150-BZB70iNGC102,NYC100..RHD..CVT..GEN202208

main81150-BZB80iNGC100,NYC100..TH;NGC101..RHD..(H,M)202208

main81150-BZC10iNGC102..MA202303

main81150-BZC90iNGC102..5F..L202208

ECUADOR

main81150-BZD00iNGC101..LHD..CVT..M..GEN202208

VANUATU

main81150-BZB50iNGC101..LHD..CVT..M..GEN202208

BANGLADESH

81156ABRACKET, HEADLAMP, LH

main81156-BZB30iNGC10#,NYC100..THP202208

main81156-BZC10iNGC102..MA202303

81172BGASKET, HEADLAMP LENS

main81132-BZB30iNGC10#202208

81185UNIT, HEADLAMP W/GASKET, LH

main81185-BZB30iNGC101,102..GCC;NGC101,102..LHD..L202208

main81185-BZB40iNGC102,NYC100..LHD..(H,M)..GEN202208

MEXICO

main81185-BZB60iNGC100202208

GRADE PACKAGE-LO(TH)

main81185-BZB70iNGC102,NYC100..RHD..CVT..GEN202208

main81185-BZB80iNGC100,NYC100..TH;NGC101..RHD..(H,M)202208

main81185-BZC10iNGC102..MA202303

main81185-BZC90iNGC102..5F..L202208

ECUADOR

main81185-BZD00iNGC101..LHD..CVT..M..GEN202208

VANUATU

main81185-BZB50iNGC101..LHD..CVT..M..GEN202208

BANGLADESH

81195SCREW, HEADLAMP

main81195-BZ030×2iNGC10#202208

8202

521610K040CUSHION, REAR BUMPER GUARD, NO.1

main52161-0K040

90109T0046

main90109-T0046

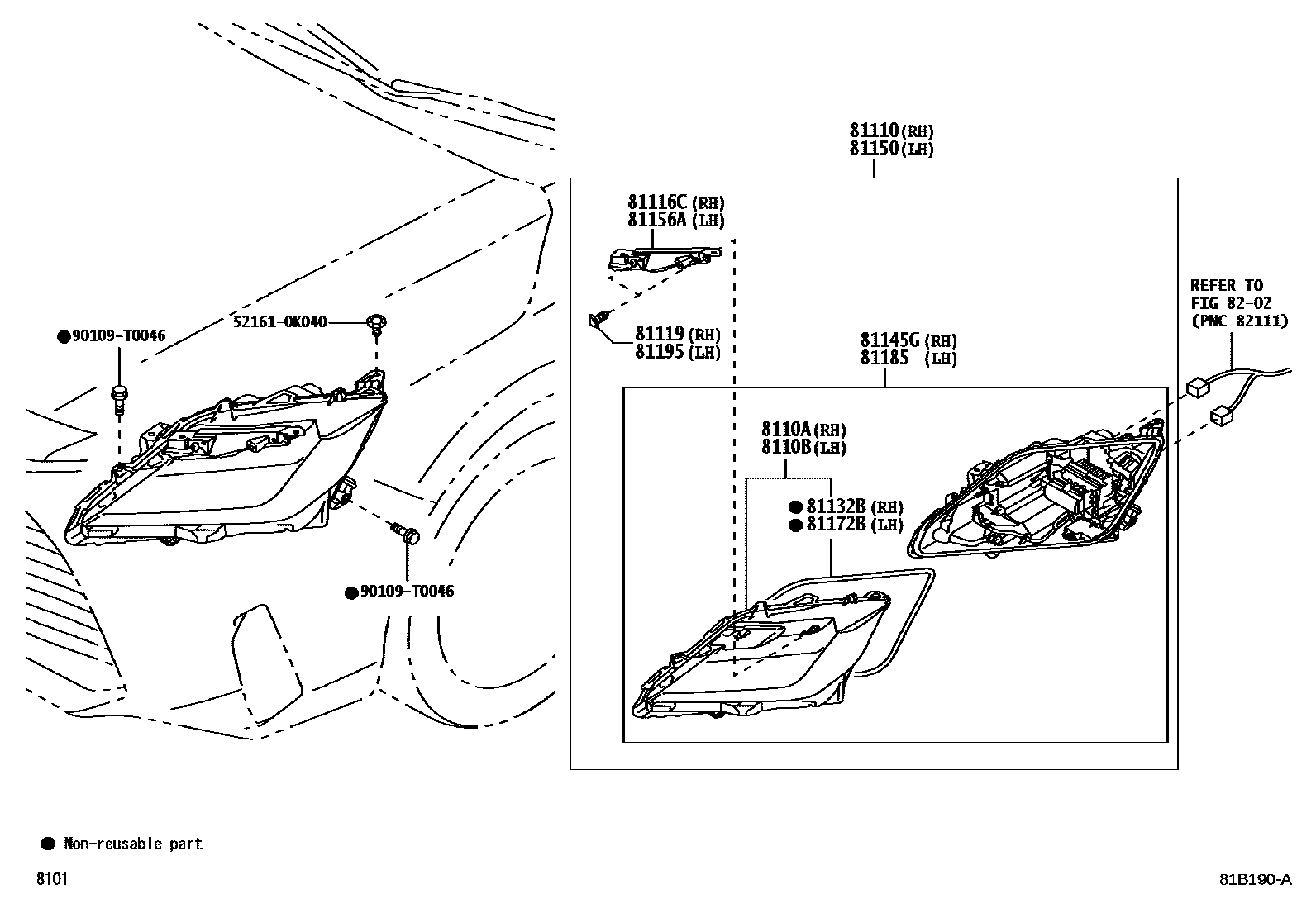

15 parts on this diagram · 1 diagram in section
